3.- LED TV SET UP
Use the manufacturer manual as a reference to connect any external device.
When connecting any external device, do not connect any power cable to the wall
sockets until the other connections are finished.
3.1 Cable TV or antenna connection
ANTENNA CONNECTION
Next you will find a brief explanation of the connection type provided with the
different antenna systems.
A 75 Ohm system is usually a round cable (not included) with an IEC type
connector that can be easily attached to a terminal without tools.
IEC type connector
Coaxial 75 Ohm cable (round)

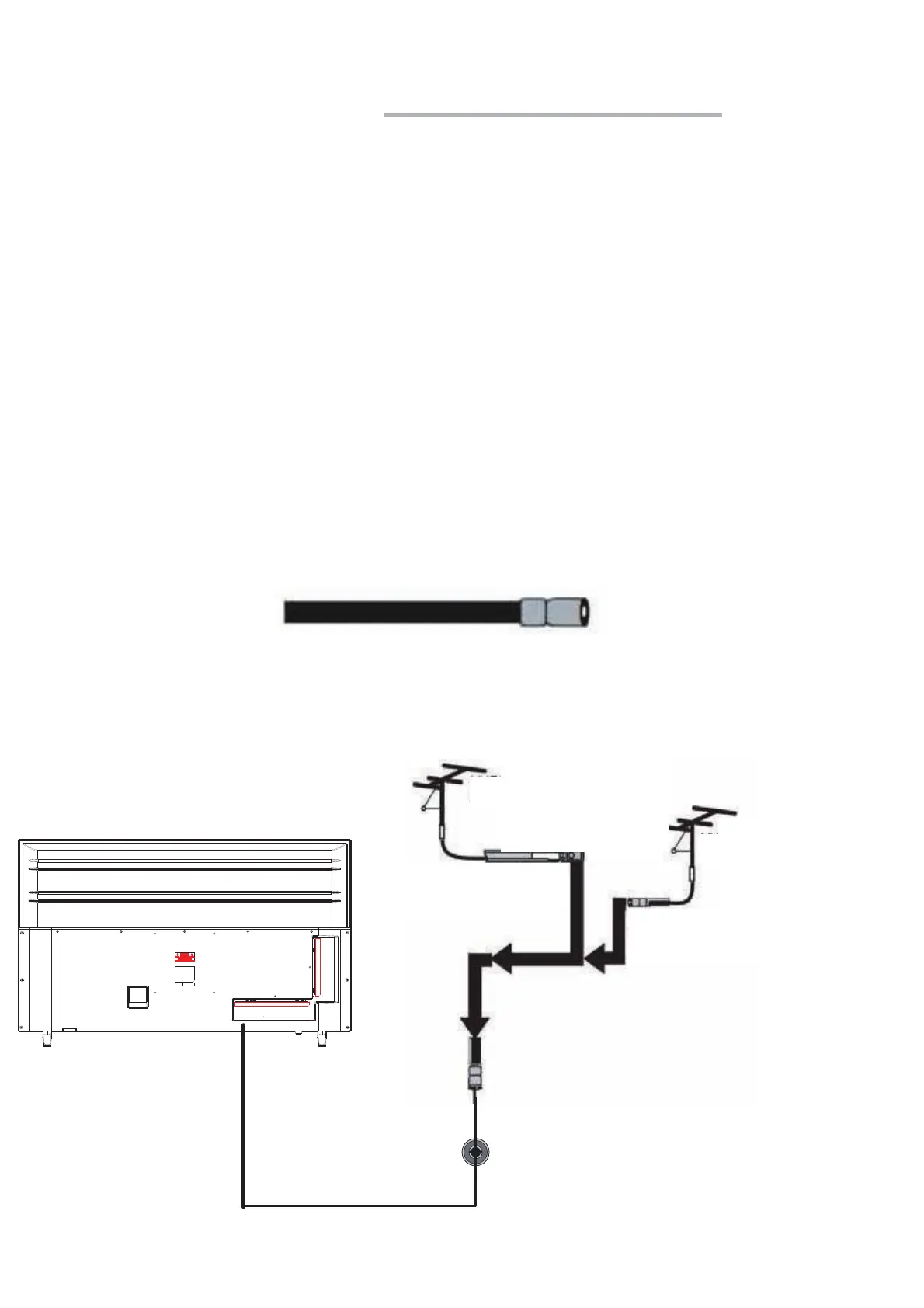

Use the following schematic to connect the external antenna.
VHF/UHF antenna
300-75 Ohm adaptor
(not included)
Double 300 Ohm cable
VHF/UHF antenna
Coaxial 75 Ohm cable
