Technics RS-B555 Service Manual

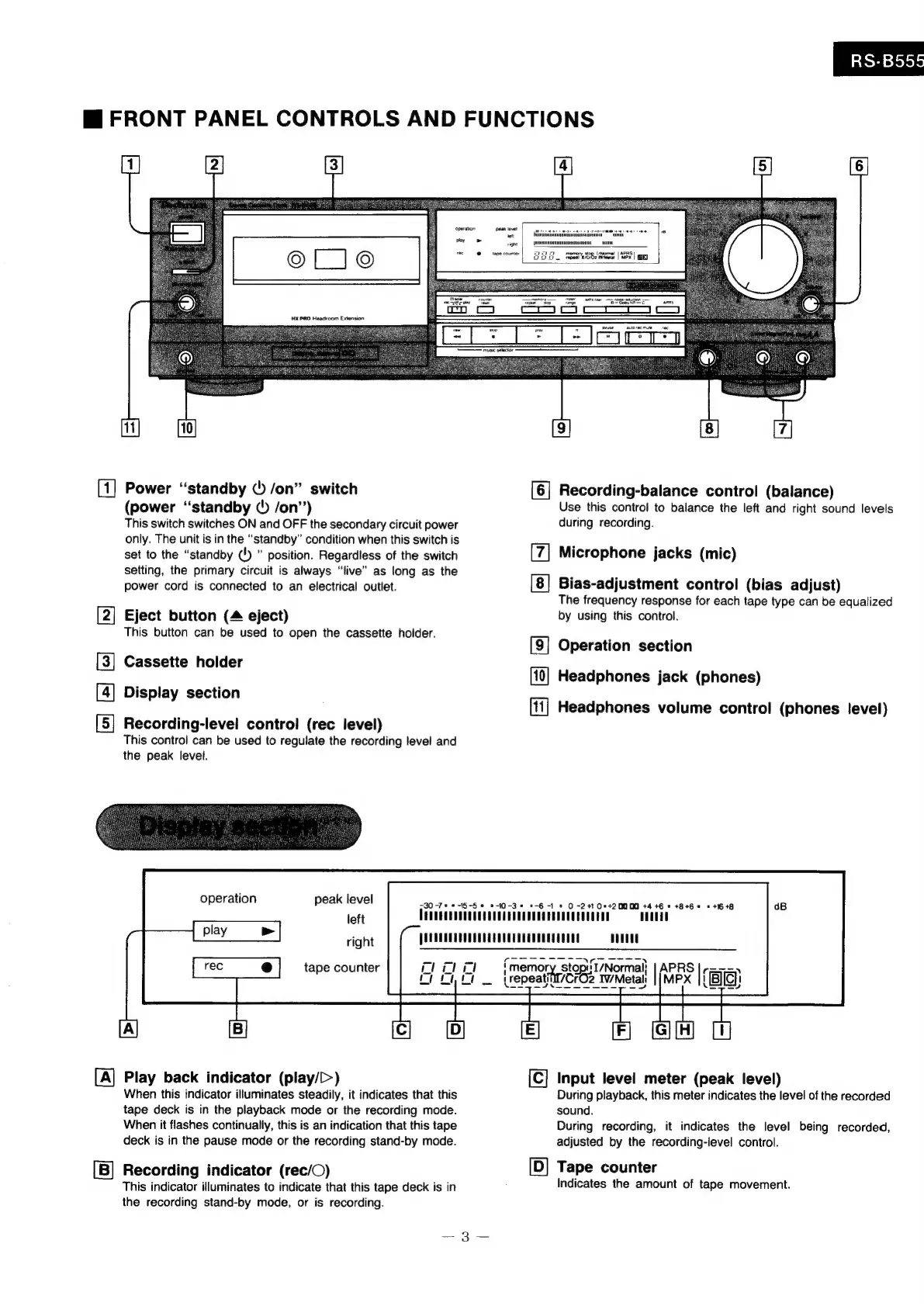

Mi FRONT PANEL CONTROLS AND FUNCTIONS
HX PRO Headroom Extension
[1] Power “standby (5 /on” switch
(power “standby (5 /on’’)
This switch switches ON and OFF the secondary circuit power
only. The unit is in the “standby” condition when this switch is
set to the “standby (!) ” position. Regardless of the switch
setting, the primary circuit is always “live” as long as the
power cord is connected to an electrical outlet.
[2] Eject button (4 eject)
This button can be used to open the cassette holder.
[3]
[4] Display section
[5]
Cassette holder
Recording-level control (rec level)
This control can be used to regulate the recording level and
the peak level.
operation peak level
left
right
-30-7* = 415-5 © » 410-3
~
ioc
wo
tape counter
Cr
~
{"r-
[A] Play back indicator (play/>)
When this indicator illuminates steadily, it indicates that this
tape deck is in the playback mode or the recording mode.
When it flashes continually, this is an indication that this tape
deck is in the pause mode or the recording stand-by mode.
Recording indicator (rec/O)
This indicator illuminates to indicate that this tape deck is in
the recording stand-by mode, or is recording.
—3-—
Normal | APRS
fepear eceBe twee | MMPS |
"6-150
VEDUEGEDOOOUCEOOGCEOUCDUCTEROOUCUUUGTH
OUT LLT
“memory stopi'l/Normalt
(repealfiT/CrO: |
[2]
Recording-balance control (balance)
Use this control to balance the left and right sound levels
during recording.
Microphone jacks (mic)
[=] [NI
Bias-adjustment control (bias adjust)
The frequency response for each tape type can be equalized
by using this control.
Operation section
Headphones jack (phones)
El &
Headphones volume control (phones level)
2 +1042 DODO +446 © +846 5 9 1648
tml/CrO2 Iv/Metal:
Fhe ew ee
[C] Input level meter (peak level)
During playback, this meter indicates the level of the recorded
sound.
During recording, it indicates the level being recorded,
adjusted by the recording-level control.
[D] Tape counter
Indicates the amount of tape movement.
