Technics SA-GX550 Service Manual

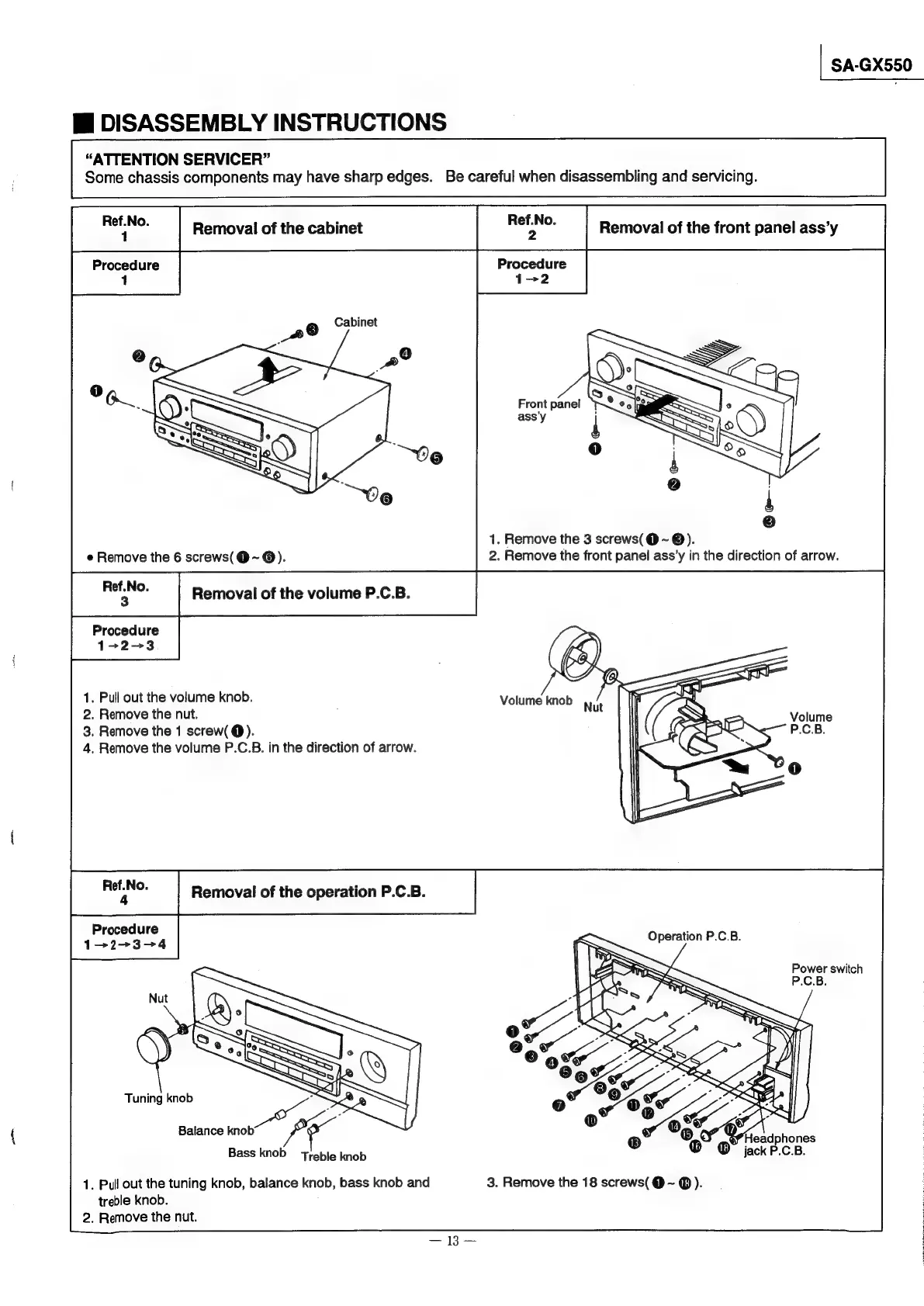

Mi DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER”
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
Removal of the cabinet ake Removal of the front panel ass’y
Procedure
1
ry Cabinet
Procedure
1-2-3
1. Pull out the volume knob.
2. Remove the nut.
3. Remove the 1 screw( @).
4. Remove the volume P.C.B. in the direction of arrow.
Procedure
Tuning knob
Balance knob
Bass knob treble knob
1. Pull out the tuning knob, balance knob, bass knob and
treble knob.
2. Remove the nut.
Procedure
Front panei
ass’y
1. Remove the 3 screws(@~®).
i
SA-GX550
2. Remove the front panel ass’y in the direction of arrow.
3. Remove the 18 screws( @~ @).
3” Headphones
jack P.C.B.

Technics SA-GX550 Specifications

General

Brand	Technics
Model	SA-GX550
Category	Stereo Receiver
Language	English
