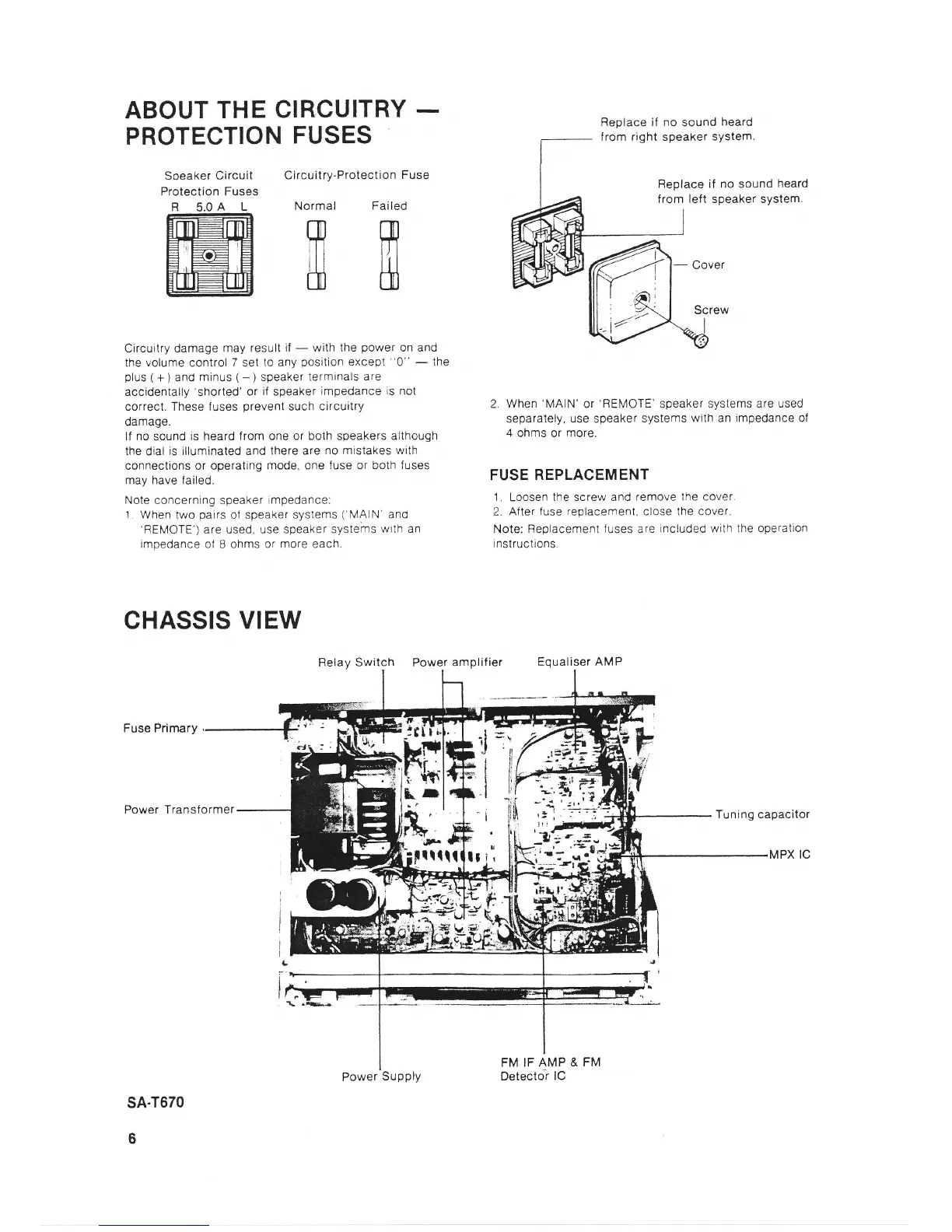

ABOUT THE
CIRCUITRY
PROTECTION
FUSES
Soeaker
Circuit
Protection
Fuses
R
5.OA
L
Circuitry-Protection
Fuse
Circuitry
damage
may result
il
-
with
the
power
on and
the
volume
control
7
set
to any
position
except
"0"
-
the
plus (+
)
and
minus
(-
)
speaker
terminals are
accidentally
'shorted'
or
if
speaker
impedance
is
nol
correct. These
fuses
prevent
such
circuitry
damage.
lf
no
sound
is heard f rom one or both speakers
although
the
dial
is illuminated
and
there are
no mistakes
wilh
connections or operating
mode, one
tuse
or both
Juses
may have failed.
Note concerning
speaker
impedance:
1.
When two
pairs
of
speaker
systems
('[,4AlN'
ano
'REMOTE')
are used, use speaker
systems
wtth
an
impedance
o{ B ohms
or more each.
Normal
m
$
ailed
ffi
s
Replace
if no sound
heard
from right speaKer
system
Replace
if no sound
heard
from left speaker system.
2. When
'MAIN'
or
'REMOTE'
speaker systems
are used
separately,
use
speaker
systems
with
an
rmpedance of
4
ohms or
more.
FUSE
REPLACEMENT
'1
.
Loosen
the
screw
and
remove the cover.
2.
After
fuse replacement,
close the cover.
Note:
Replacement
fuses
are
included
with
the operation
instructions.
CHASSIS VIEW
Fuse Primary
Power Transformer
sA.T670
6
Relay
Switch Power
amplifier
Equaliser AMP
FM IF
AMP &
FM
Detecto?
lC
Tuning
capacitor
PX IC
Power
SuPPly
