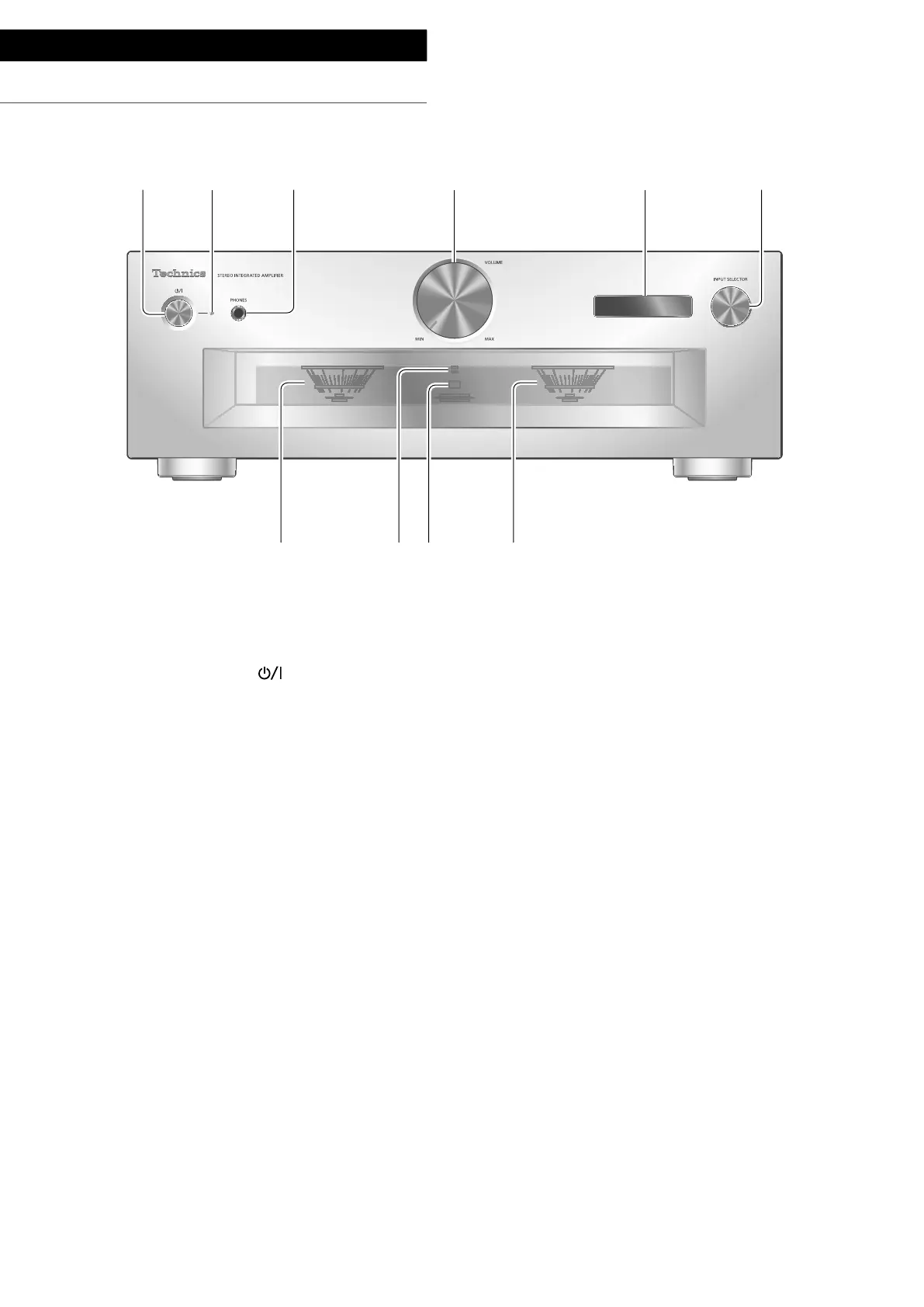

Control reference guide
This unit
(08)
01 Standby/on button ( )
• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the
unit is still consuming a small amount of
power.
02 Power indicator
• Blue: The unit is on.
• Off: The unit is in standby mode.
03 Headphones jack
• When a plug is connected, the speakers and
PRE OUT terminals do not output sound.
( 20)
• Sound is not output from headphones
jack when using this unit as main amplifier
(“MAIN IN” is selected as input source of this
unit). ( 18)
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
• Listening at full volume for long periods may
damage the user’s ears.
04 Volume knob
• -- dB (min), -88.0 dB to 0 dB (max)
05 Display
• Information such as input source, etc. is
displayed. ( 30)
06 Input selector knob
• Turn this knob clockwise or anticlockwise to
switch the input source.
07 Peak power meter
• Display the output level. 100 % is the rated
output ( 31).
• Peak power meter does not work while the
light is turned off by pressing [DIMMER],
connecting the headphones, etc.
08 LAPC indicator ( 24)
09 Remote control signal sensor
• Reception distance: Within approx. 7 m
directly in front
• Reception angle: Approx. 30° left and right
