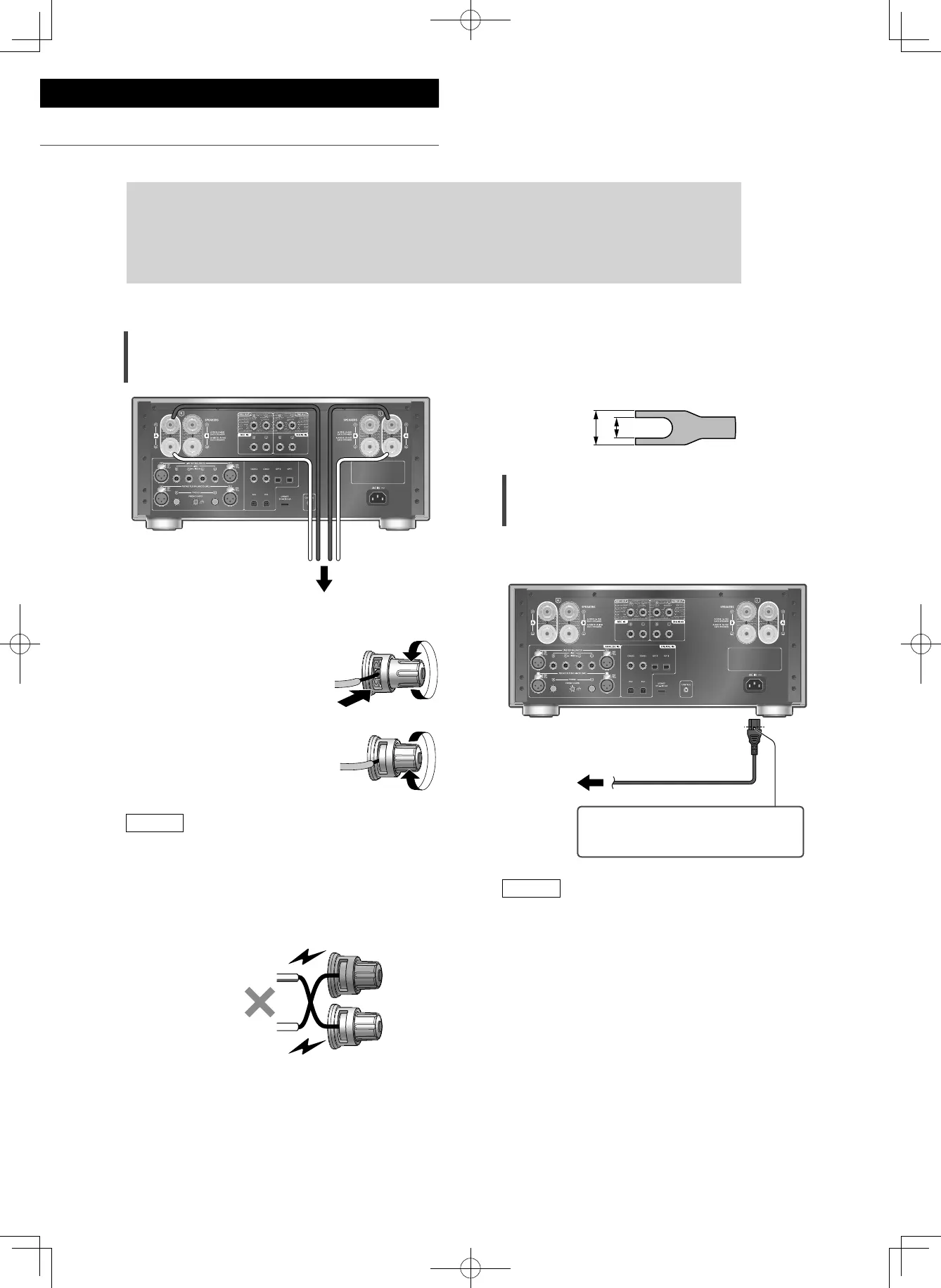

Connections
Speakers/AC mains lead
(12)
• Use only the supplied AC mains lead.
• Insert the plugs of the cables to be connected all the way in.
• Do not bend cables at sharp angles.
• To optimise the audio output, you can measure the amplifier output signal and correct its
output when it is connected to the speakers. ( 22)
Speaker connection
Speakers
Speaker cables
(not supplied)
1 Turn the knobs to
loosen them, and
insert the core wires
into the holes.
2 Tighten the knobs.
Note
• When the connections are completed, pull the
speaker cables lightly to check that they are
connected firmly.
• Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so
may damage the amplifier.
DO NOT
• Wire the polarity (+/-) of the terminals correctly.
Not doing so may adversely affect stereo
effects or cause malfunction.
• For details, refer to the operating instructions of
the speakers.
• Though the spade plug (A: 16 mm or less, B:
8 mm or more) can be connected, some plug
may not be connected depending on the shape
of plug.
AB
AC mains lead connection
Connect only after all other connections are
completed.
To a household
mains socket
AC mains lead
(supplied)
Insert the AC mains lead up to a
point just before the round hole.
Note
• This unit consumes a small amount of AC power
( 28) even when the unit is in standby mode.
Remove the plug from the main electrical outlet
if you will not be using the unit for an extended
period of time. Place the unit so the plug can be
easily removed.
