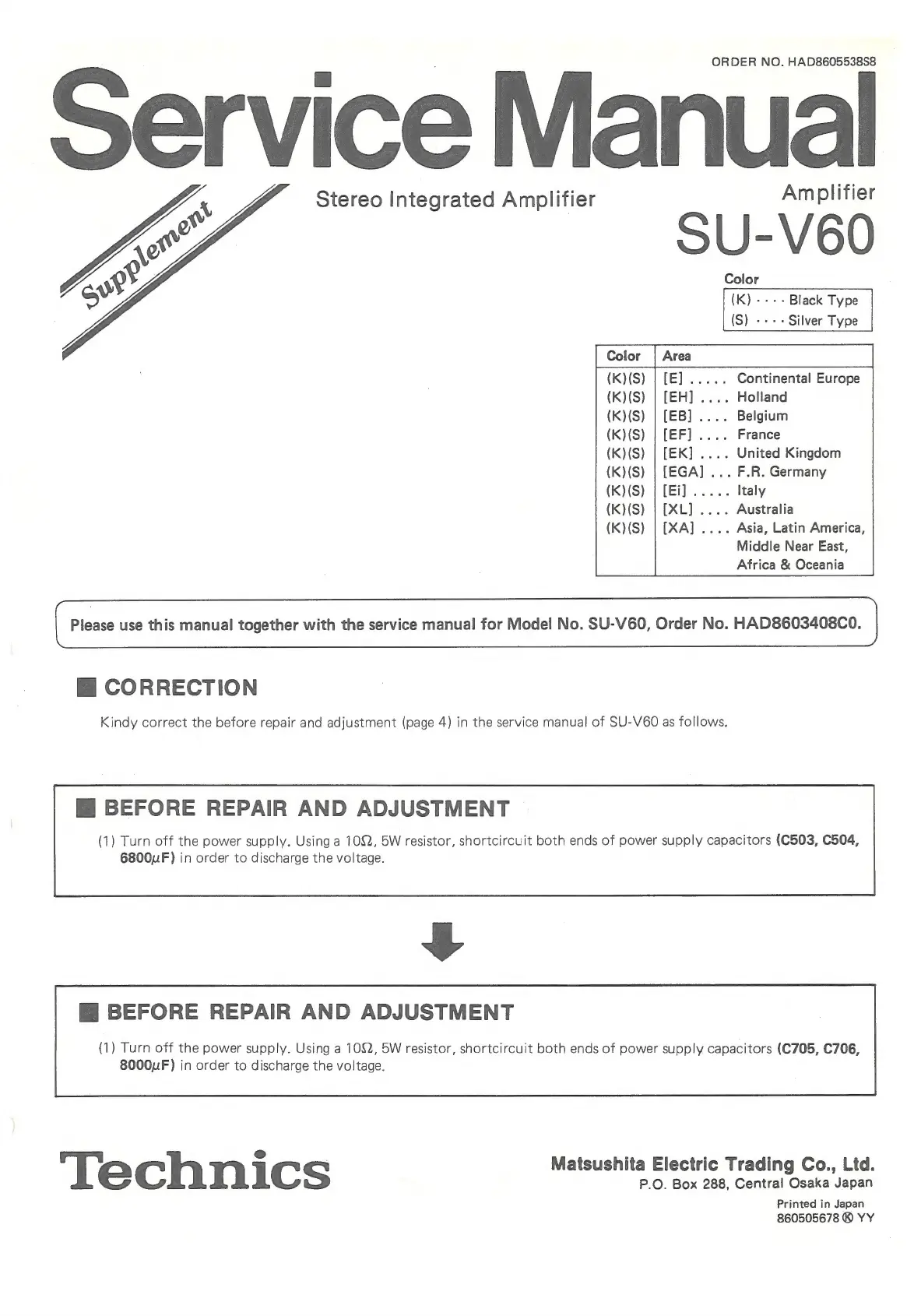

Technics SU-V60 Service Manual

ORDER NO. HAD8605538S8
ervice Manual
Stereo
Integrated
Amplifier Amplifier
SU-V60
Color
(K) - +++ Black Type
(S) -+--+ Silver Type
eanae Continental Europe
(K)(S) | [EH] .... Holland
(K)(S) | [EB] .... Belgium
(K)(S) | [EF] .... France
(K)(S) | [EK] .... United Kingdom
(K)(S) | [EGA] ... F.R. Germany
(K)(S) | [Ei] ..... Italy
(K)(S) | [XL] .... Australia
[XA] .... Asia, Latin America,
Middle Near East,
Africa & Oceania
Please use this manual together with the service manual for Model No. SU-V60, Order No. HAD8603408C0.
li CORRECTION
Kindy correct the before repair and adjustment (page 4) in the service manual of SU-V60 as follows.
Mi BEFORE REPAIR AND ADJUSTMENT
(1) Turn off the power supply. Using a 10Q, 5W resistor, shortcircuit both ends of power supply capacitors (C503, C504,
6800uF) in order to discharge the voltage.
BEFORE REPAIR AND ADJUSTMENT
(1) Turn off the power supply. Using a 102, 5W resistor, shortcircuit both ends of power supply capacitors (C705, C706,
8000uF) in order to discharge the voltage.
