Action Result Example
Flick Flick the badge off the bottom edge of the display to remove it from the Settings bar
.
Flick the badge off the right edge of the display to remove it from the Results bar.
Flick from the right or bottom edge to recover a removed badge. This action is only possible within 10 seconds of
badge removal.

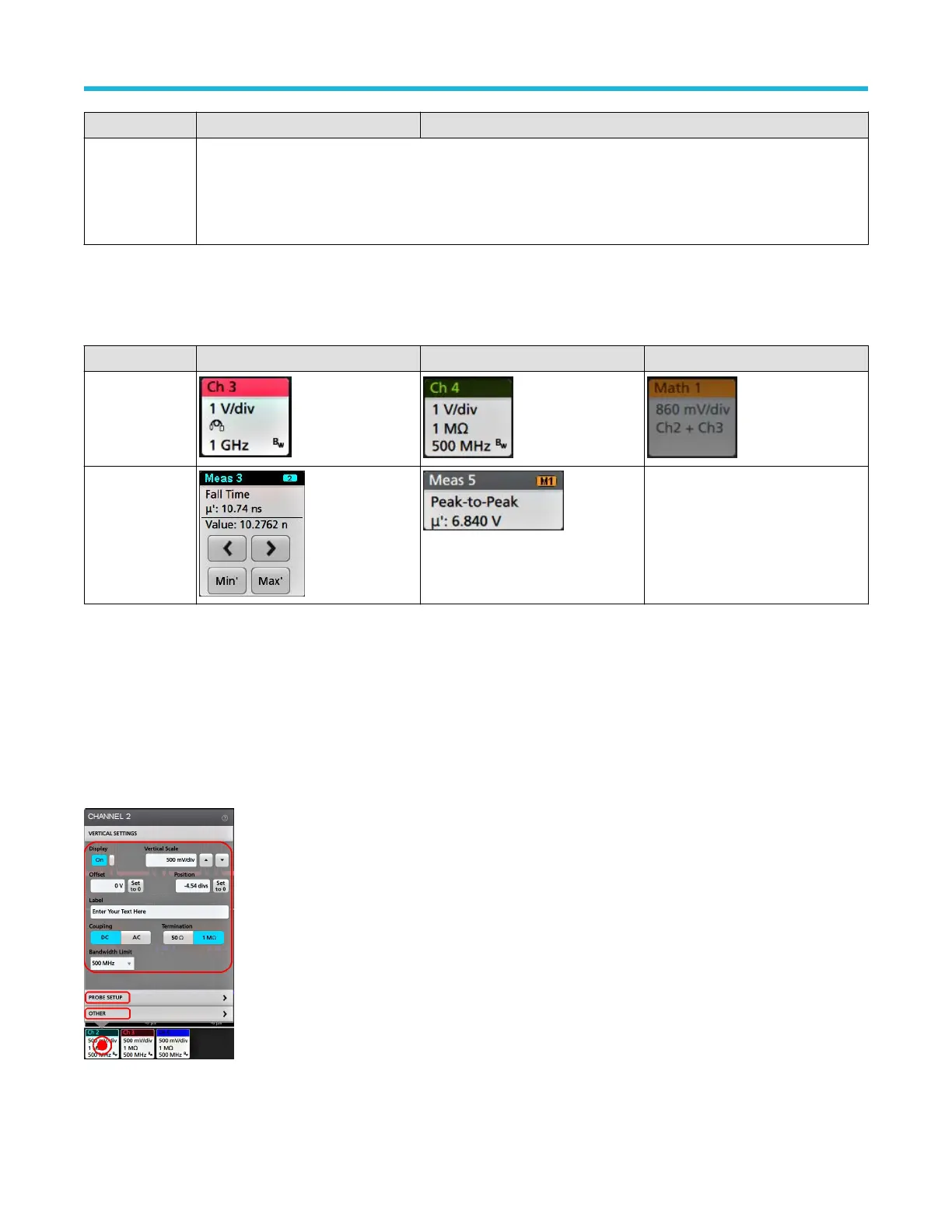

Badge selection status
The appearance of a badge indicates its selection status (selected or unselected), or if a measurement needs to be deleted to close a
channel or waveform badge.
Badge type Selected Unselected Turned off or in use
Channel or
W
aveform
Measurement N/A
A dimmed Channel badge means the screen waveform is turned off (but not deleted). A dimmed Waveform badge means that the
waveform display is turned of
f, or it is being used as a source by a measurement and cannot be deleted until the measurement is deleted.
Configuration menus
Configuration menus let you quickly set the parameters for channels, system settings (Horizontal, Trigger, Acquisition), measurements,
cursor readouts, Waveform and Plot views, callout text, and so on.
Double-tap an item (badge, Waveform View or Plot View, cursor readouts, callout text, and so on) to open its configuration menu. For
example, double-tap a Channel badge in the Settings Bar to open its configuration menu.
Selections or values that you enter take effect immediately. Menu contents are dynamic, and can change depending on your selections,
instrument options, or attached probes.
Getting acquainted with your instrument
38
