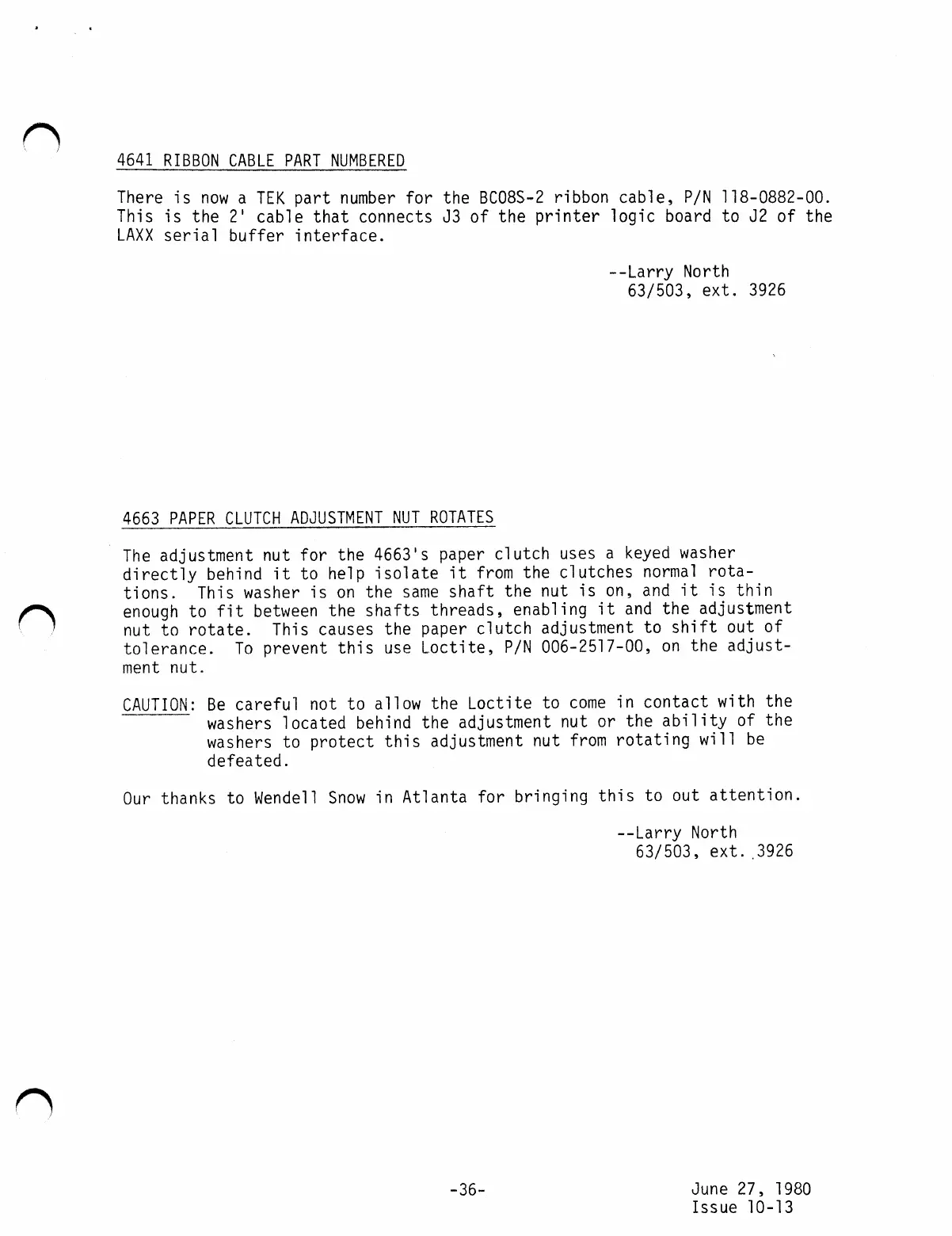

4641 RIBBON CABLE PART NUMBERED
There is now a TEK part number for the BC08S - 2 ribbon cable , P / N 118-0882-00 .
This is the 2 ' cable that connects J3 of the printer logic board to J2 of the
LAXX serial buffer interface .
--Larry
North
63/503
,
ext
.
3926
4663 PAPER
CLUTCH
ADJUSTMENT NUT
ROTATES
The
adjustment nut
for the
4663's
paper
clutch
uses a
keyed
washer
directly
behind
it
to
help
isolate
it
from
the
clutches
normal
rota
tions
.
This
washer
is on
the
same
shaft
the nut
is
on , and
it
is
thin
enough
to
fit between
the
shafts
threads
,
enabling it
and
the
adjustment
nut to rotate .
This
causes
the
paper
clutch
adjustment
to
shift
out
of
tolerance
.
To
prevent
this
use
Loctite , P
/ N
006-2517-00 , on
the
adjust
ment
nut
.
CAUTION
: Be
careful
not
to
allow
the
Loctite
to
come in
contact
with the
washers
located
behind the
adjustment nut
or the
ability
of
the
washers
to
protect
this
adjustment
nut from
rotating
will
be
defeated .
Our
thanks to
Wendell
Snow in
Atlanta for
bringing
this to out
attention .
--Larry
North
63/503
,
ext .
3926
