General
Information—
7B10
Operators

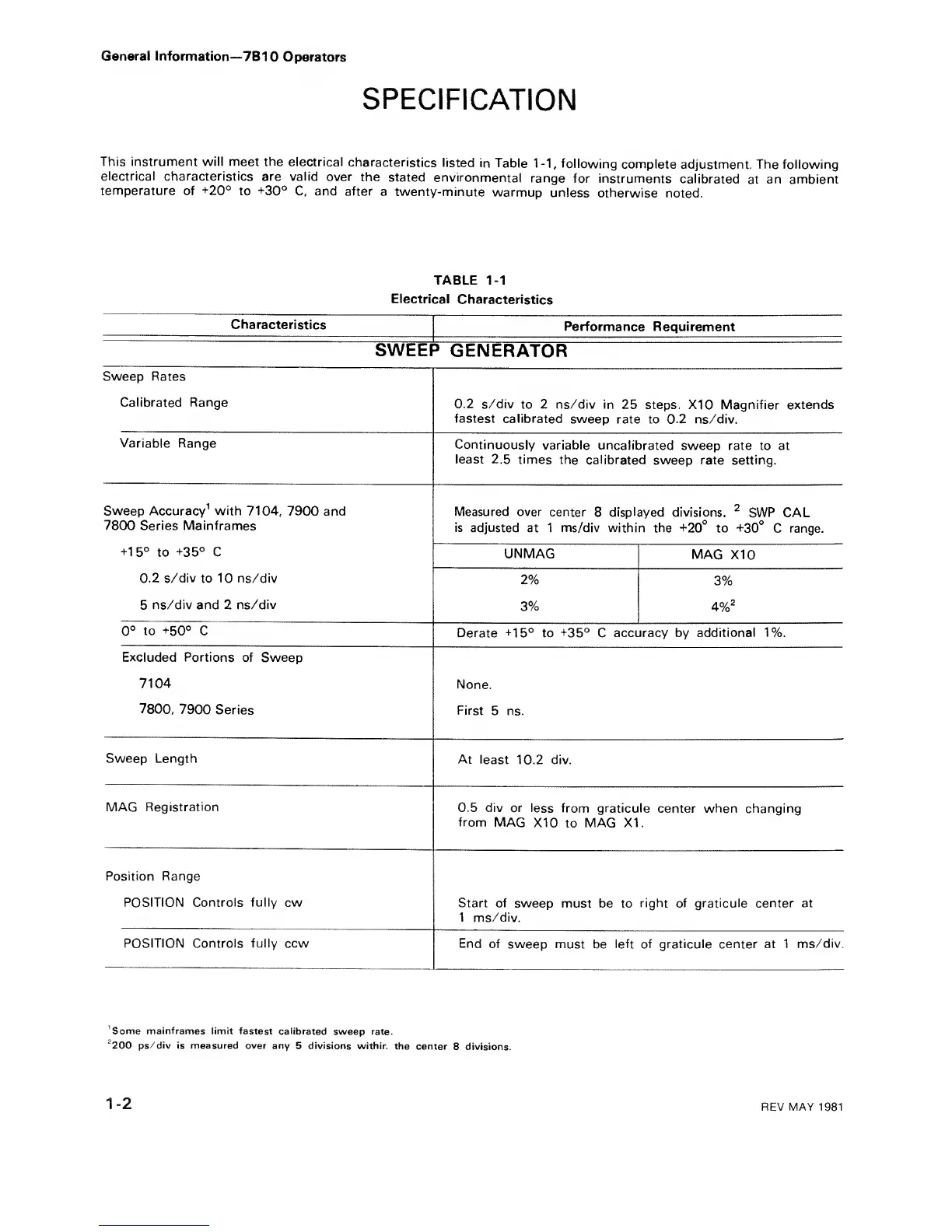

SPECIFICATION
This instrument will meet the
electrical
characteristics
listed
in
Table 1 -1,
following
complete
adjustment. The following
electrical characteristics
are valid
over
the
stated
environmental
range
for instruments
calibrated
at an ambient
temperature
of
+20°
to
+30°
C, and after
a
twenty-minute
warmup
unless otherwise
noted.
TABLE
1-1
Electrical
Characteristics
Characteristics
Performance Requirement
SWEEP
GENERATOR
Sweep Rates
Calibrated Range
0.2 s/div
to 2 ns/div in
25 steps, XI
0
Magnifier extends
fastest calibrated
sweep rate
to 0.2 ns/div.
Variable Range
Continuously
variable uncalibrated
sweep
rate
to at
least
2.5
times the calibrated
sweep rate setting.
Sweep Accuracy^ with
7104, 7900 and
7800 Series Mainframes
+15°
to
+35°
C
0.2 s/div to 10 ns/div
5
ns/div and 2
ns/div
Measured over center
8
displayed
divisions.
^
SWP
CAL
is adjusted
at
1 ms/div within
the
+20°
to
+30°
C range.
UNMAG
MAG
XI
0
2%
3%
3%
4%^
0°
to
+50°
C
Derate
+15°
to
+35°
C
accuracy by
additional
1%.
Excluded Portions
of Sweep
7104
7800, 7900
Series
None.
First
5 ns.
Sweep Length
At
least
10.2 div.
MAG Registration
0.5 div or
less from graticule
center when changing
from
MAG
XI
0 to
MAG XI.
Position Range
POSITION Controls fully cw
Start
of sweep
must be to
right of graticule center at
1 ms/div.
POSITION Controls fully ccw
End of
sweep must
be
left of graticule center at 1
ms/div.
’Some mainframes
limit fastest calibrated
sweep rate.
^200
ps/div
is measured over any
5 divisions withir.
the center
8 divisions.
1-2
REV MAY 1981
