Giving Demos of MSO Features
2. Push the lower-bezel E dit Labels menu
button.
D15-D0
On/Off
Thresholds Edit Labels MagniVu
On |
Off
Height
S|
M|L

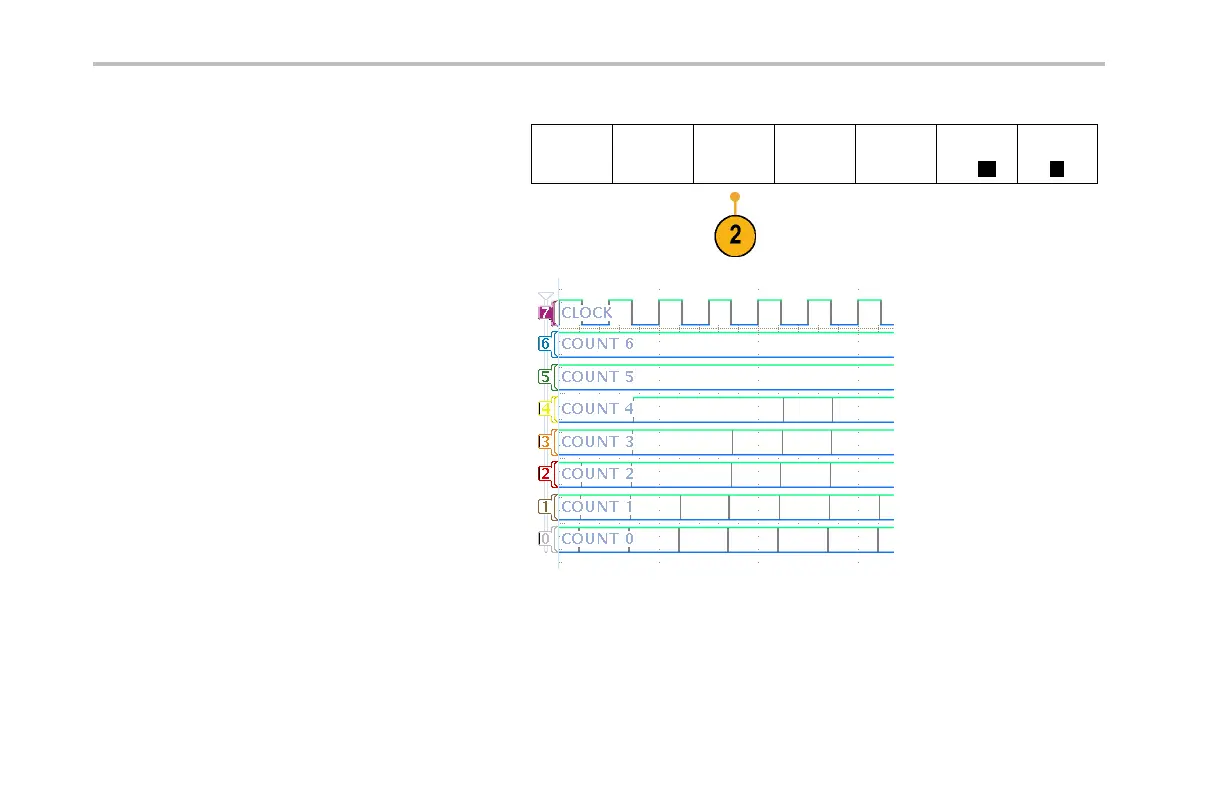

3. Use the keyboard to add labels for c hannels
D0 through D 6. Call them Count 0, Count
1, Count 2, C ount 3, Count 4, Count 5, and
Count 6. Use the keyboard’s Enter key or the
side menu’s down arrow key to s e lec t the next
channel to label.
Alternatively, you can add a label by
pressing Select Preset Label, then turning
multipurpose knob b to select a preset label
from a list, and pressing the side menu Insert
Preset Label button. Try this out by adding
the preset label CLOCK to D7.
92 Demo 2 Board Instruction Manual
