Pinpoint
T
rigge
rs
T
riggering
on
a
Parallel
Bus
Locate
problems
by
triggering
on
a
parallel
bus.
M
SO
instruments
can
use
digital
channels
as
components
of
a
parallel
bus.
But
MSO5000,
DPO5000,
and
MSO70000
instruments
can
use
a
parallel
bus
.
1.
Set
up
a
parallel
bus.
(See
page
50,
Setting
Up
a
Bus
.)

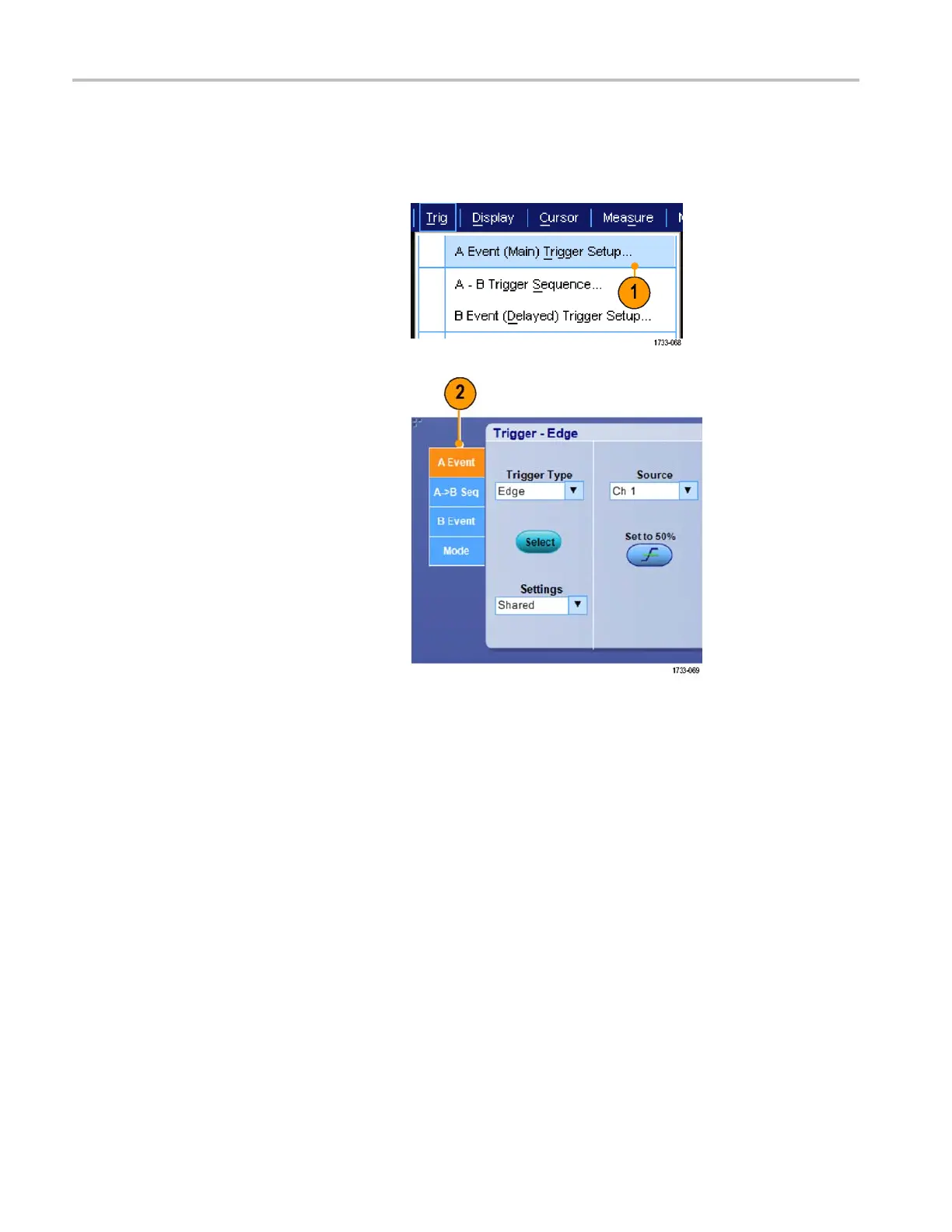

Select
Trig
>
A
Event
(Main)
Trigger
Setup...
.
2.
Select
the
A
E
vent
tab.
80
MSO70000/C,
DPO/DSA70000B/C,
DPO7000,
and
MSO/DP
O5000
Series
U
ser
M
anual
100
102
