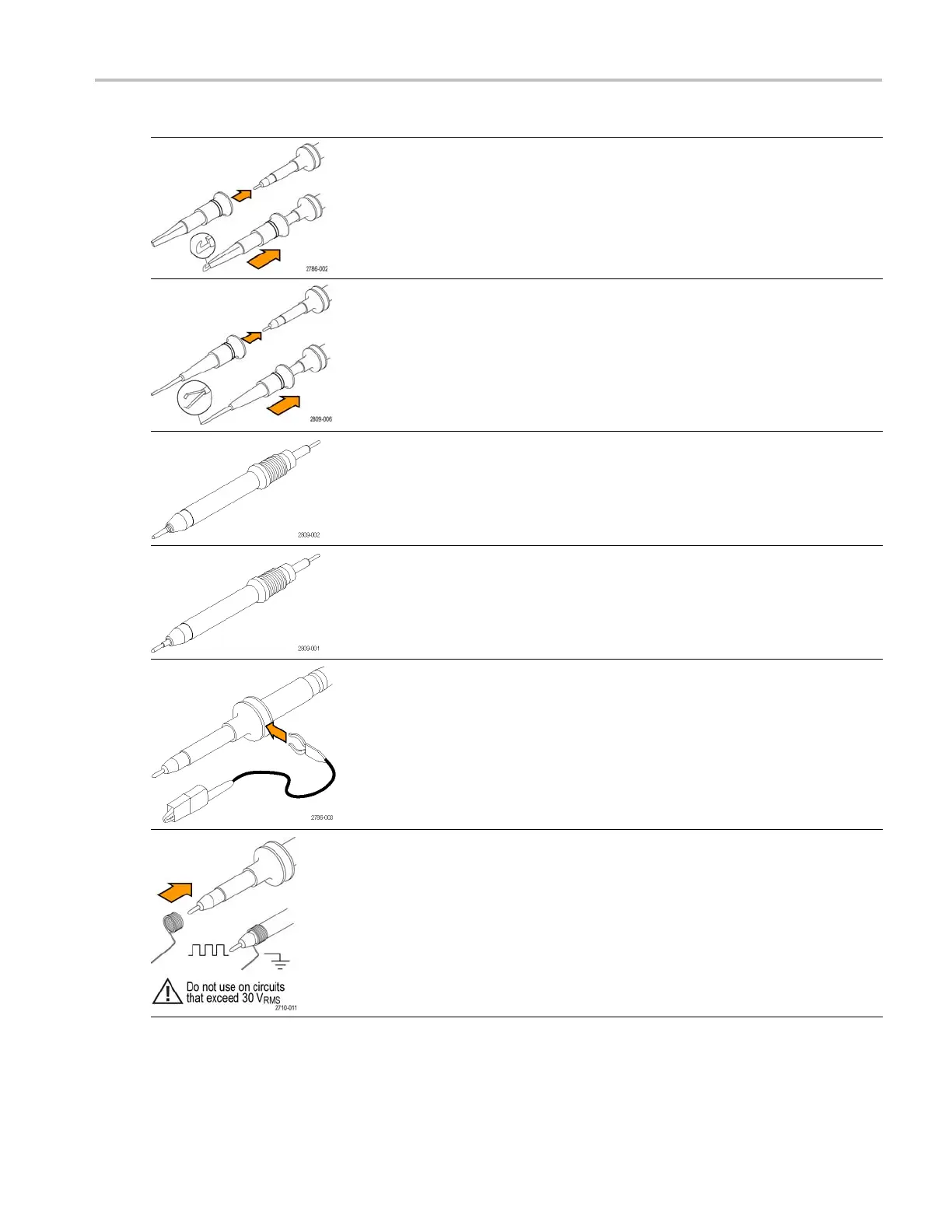

Item Description
Hook tip
Press the hook tip onto the probe tip and then
clamp the hook
onto the circuit
Reorder Tekt
ronix part number 013-0362-XX
Micro Hook tip
Use this tip to access test points in tight spaces.
Press the hook tip onto the probe tip and then
clamp the hook onto the circuit
Reorder Tektronix part number 013-0363-XX

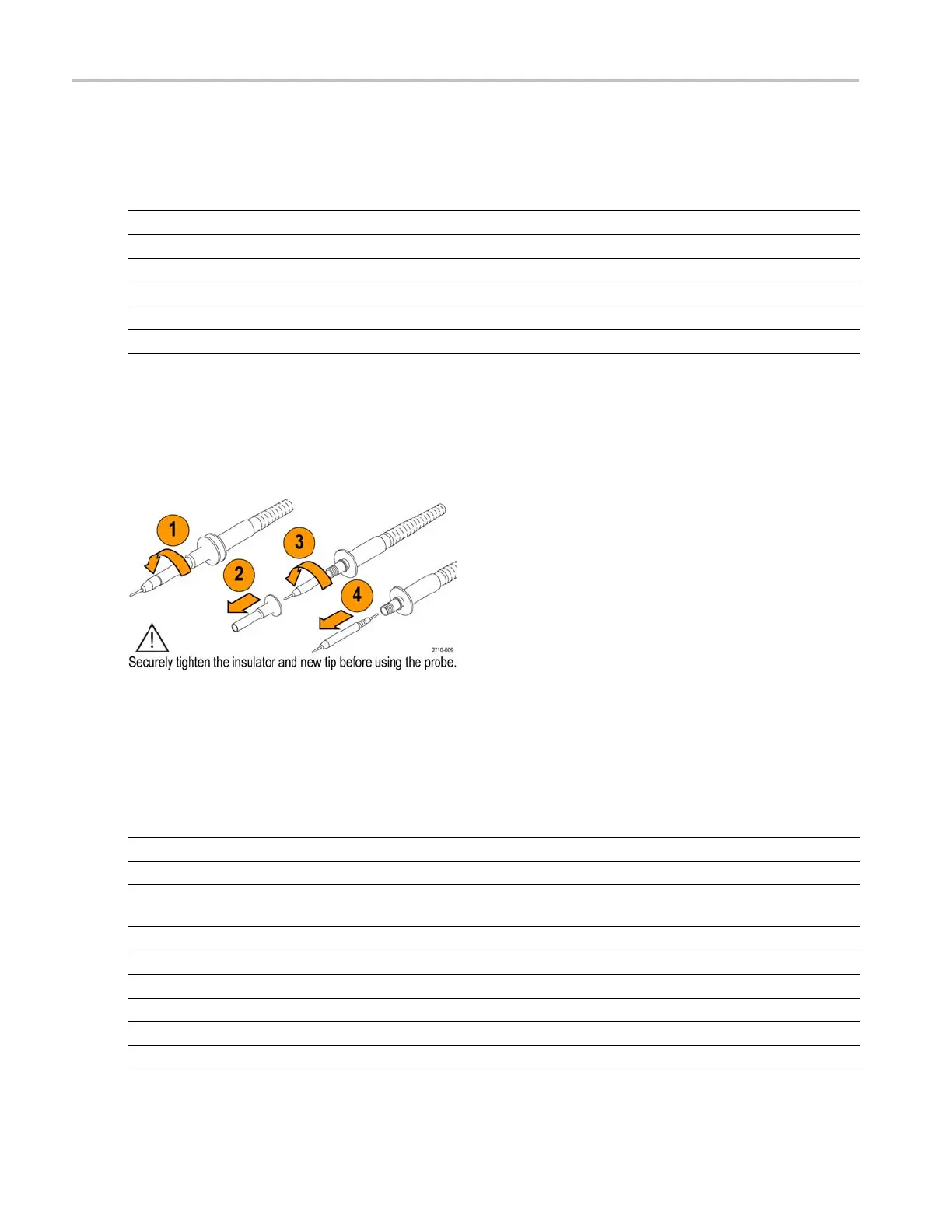

Rigid tip
This tip is pre-installed on the probe.
Reorder Tektronix part number 206-0610-XX
Pogo tip
This spring-loaded tip allows compliant testing of
circuit boards.
Reorder Tektronix part number 206-0611-XX
Ground lead, with alligator clip
Secure the lead to the p robe head ground and then
to your circuit ground.
Reorder Tektronix part number 196-3521-XX
Ground springs
Attach the spring to the ground band on the probe
tip to take measurements on test points that have
ground connections nearby (<0.75 in, std; XX in,
short).
Reorder Tektronix part numbers:
016-2028-XX (long, 2 ea.)
016-2034-XX (short, 2 ea.)
