Acquisition
Setting Up Digital Signal Input

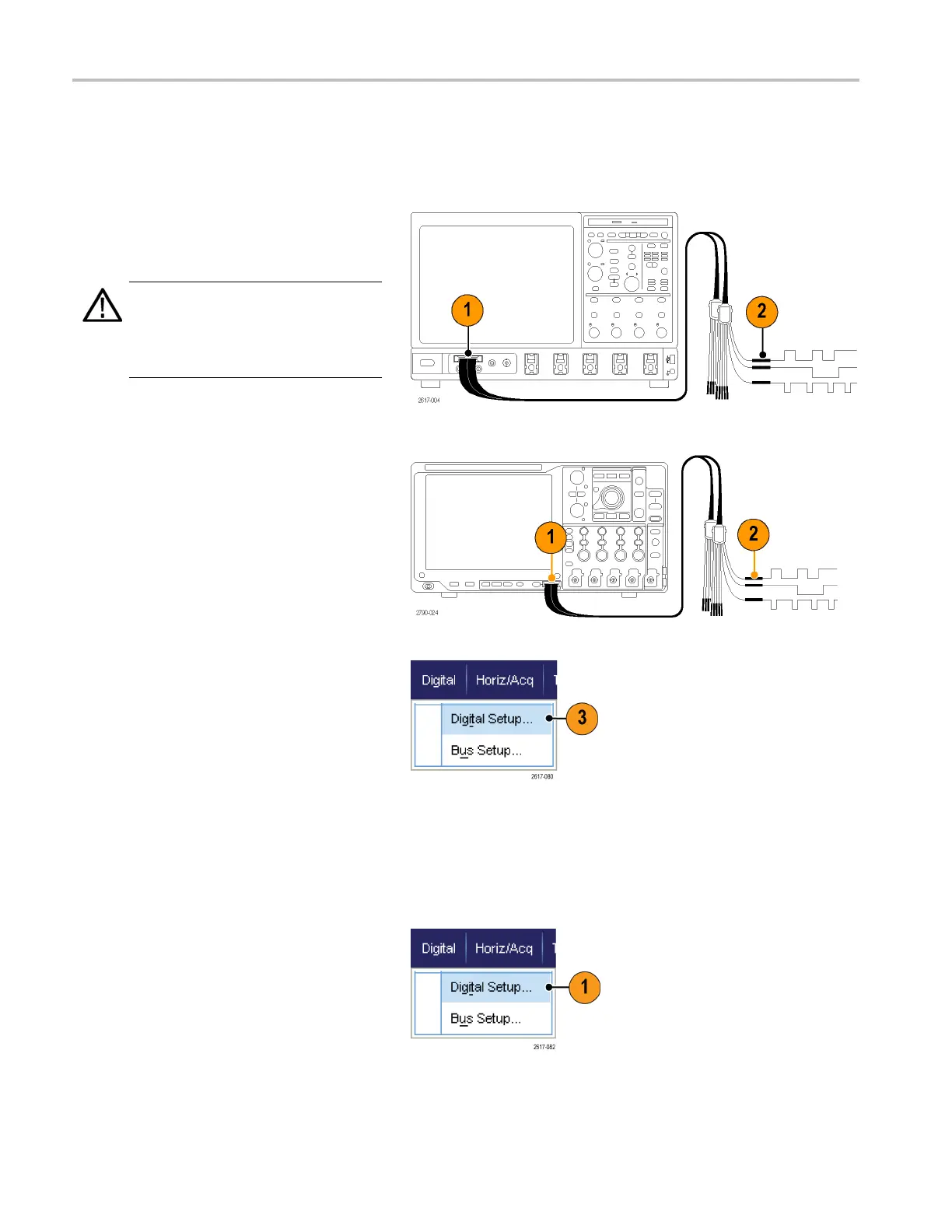

Use D igital setup menus to set up the digital channels to acquire signals. Digital channels are available on MSO70000/C a nd
MSO5000 Series instruments only.
1. Connect the logic probe tothe instrument.
2. Connect the probe to the input signal
sources.
CAUTION. To prevent damage to the
instrument always wear an antistatic wrist
strap when making connections to the
instrument and observe the maximum input
voltage ratings for input connectors.
MSO70000/C, DSA70000B/C , and DPO70 000B/C Series
MSO5000 and DPO5000 Series
3. Set up digital channels and buses using
the Digital menus.
(See page 48, Setting Up Digital C hannels.)
and (See page 50, Setting Up a Bus.)
Setting Up Digital Channels
Yo u can set a digital channel threshold, size, position and label on MSO70000/C and MSO5000 Series instruments.
1. Select Digital > Digital Setup.
48 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
