Pinpoint trigge

Setting up E-Mail on Event

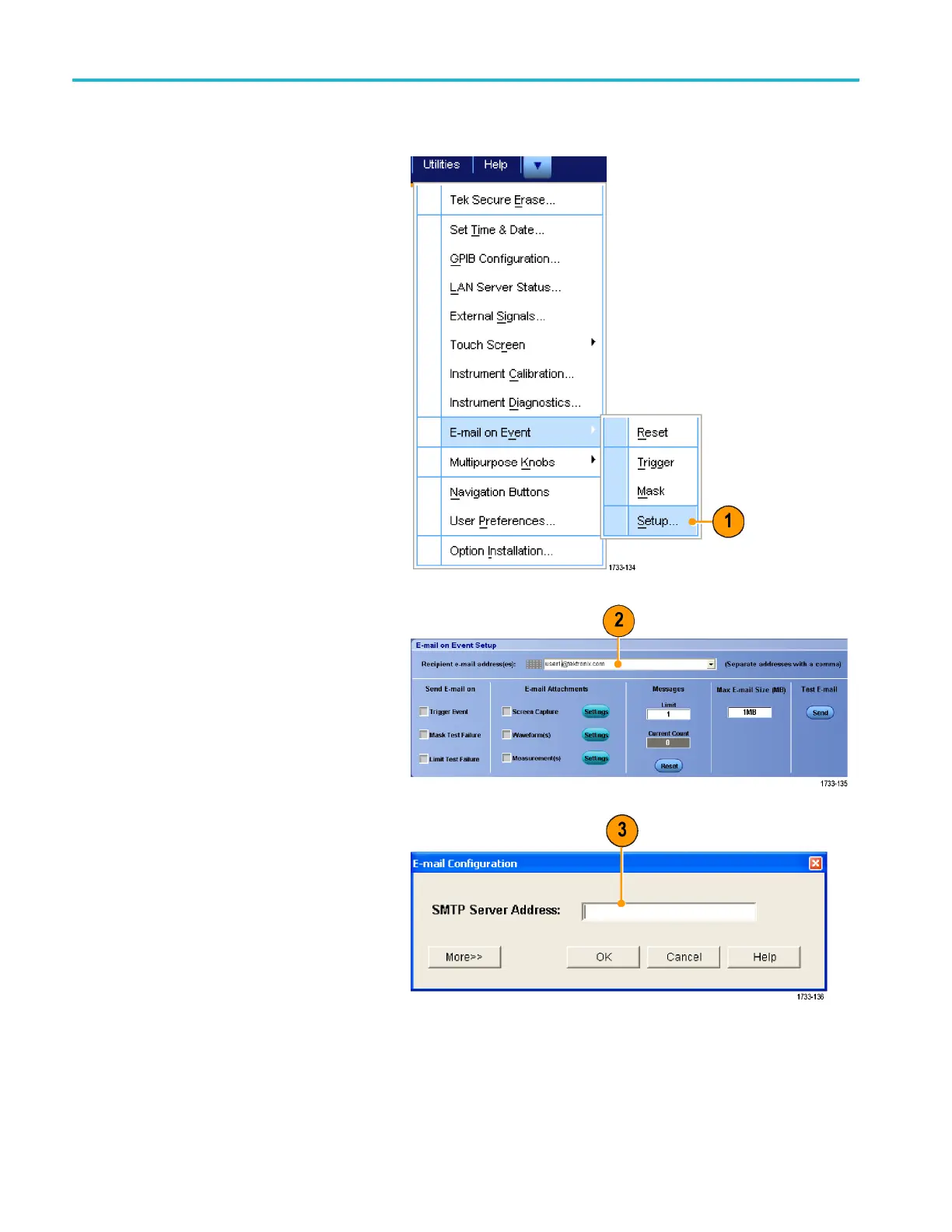

1. Select Utilit

ies > E-mail on Event >

Setup....

2. Enter recipients' e-mail address(es).

Separate m ultiple entries with commas.

There is a limit of 252 characters in the

e-mail address box.

3. Click

Conﬁg, and then enter the SMTP

Server Address. Contact your network

administrator for the correct address.

88 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
