Tektronix DPO7254 User Manual

Saving and Recal
ling Information

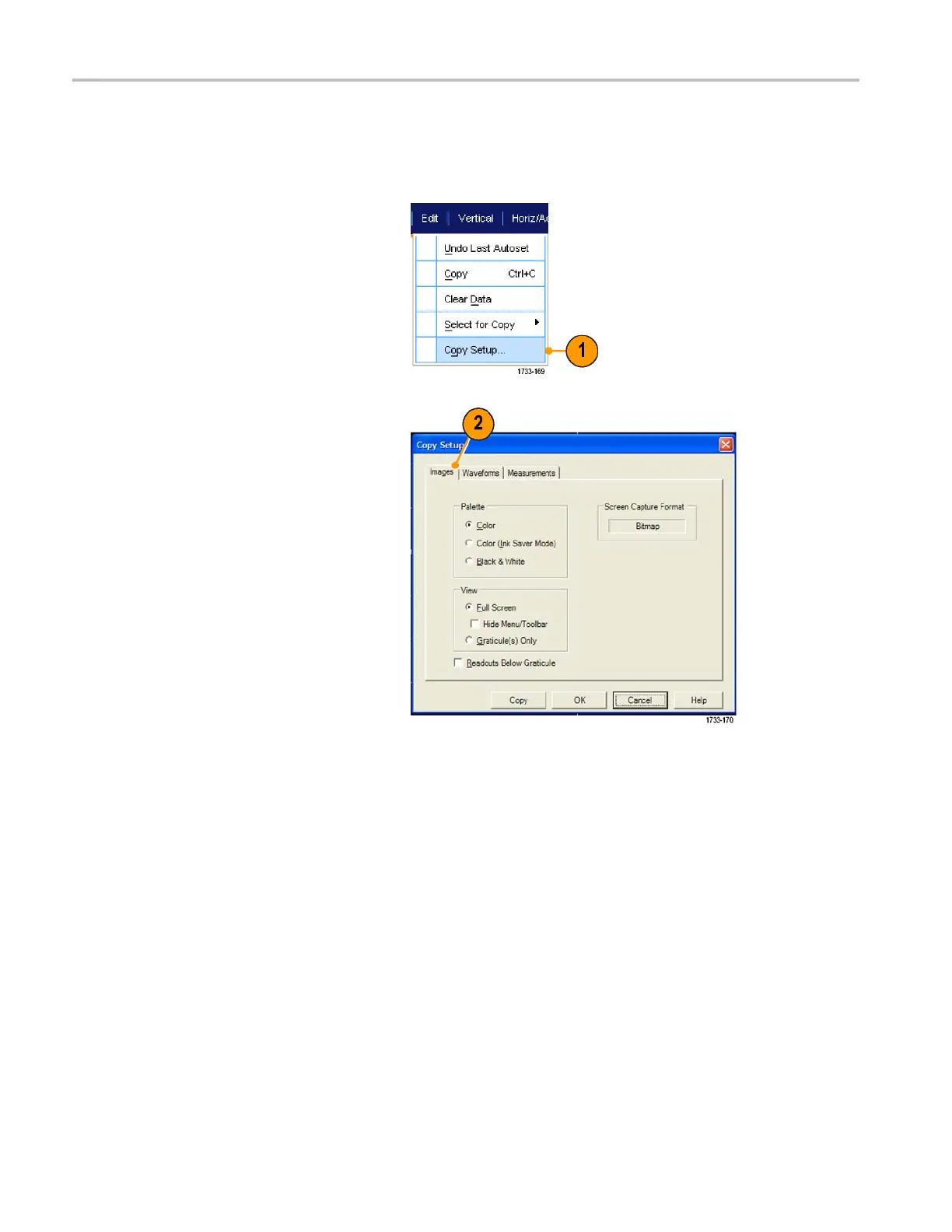

To copy images, waveforms, or measurements, use the following procedure:
1. Select the item that you want to copy.
2. Select Edit > Copy or press Ctrl + C.
3. Press Ctrl + V to paste the item into a
Windows application.

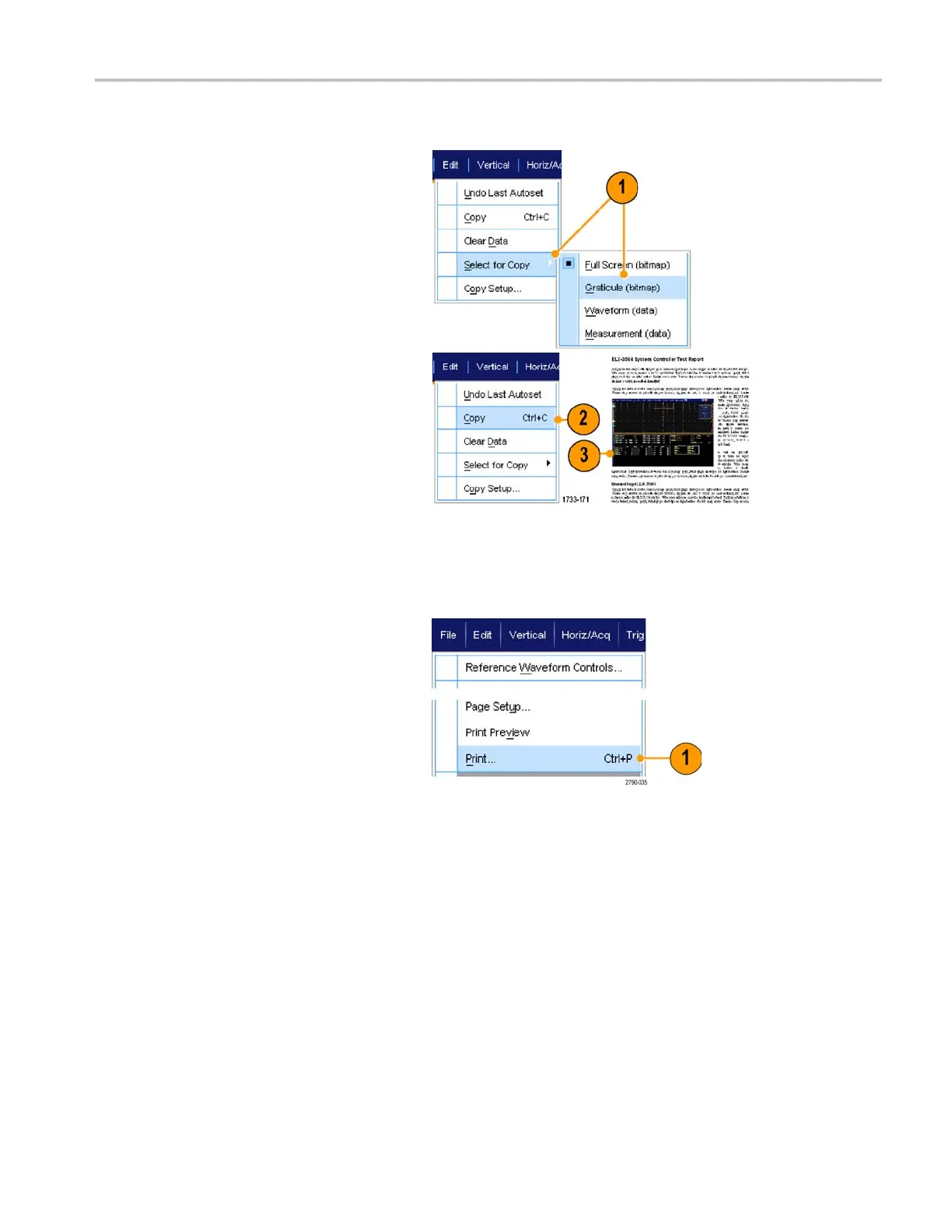

Printing
aHardCopy
1. To print a
hard copy, push the print button
or select File > Print. If necessary, make
changes to the page orientation in the
Page Set
up dialog box.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 155

Tektronix DPO7254 Specifications

General

Bandwidth	2.5 GHz
Channels	4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Input Impedance	50 Ω or 1 MΩ
Display	12.1-inch XGA
Maximum Input Voltage	5 Vrms (50 Ω), 400 V (1 MΩ)
Trigger Modes	Edge
Interface	USB, GPIB, Ethernet
Sample Rate	40 GS/s (all channels)
