Saving and recal
ling information
Recalling instrument setups

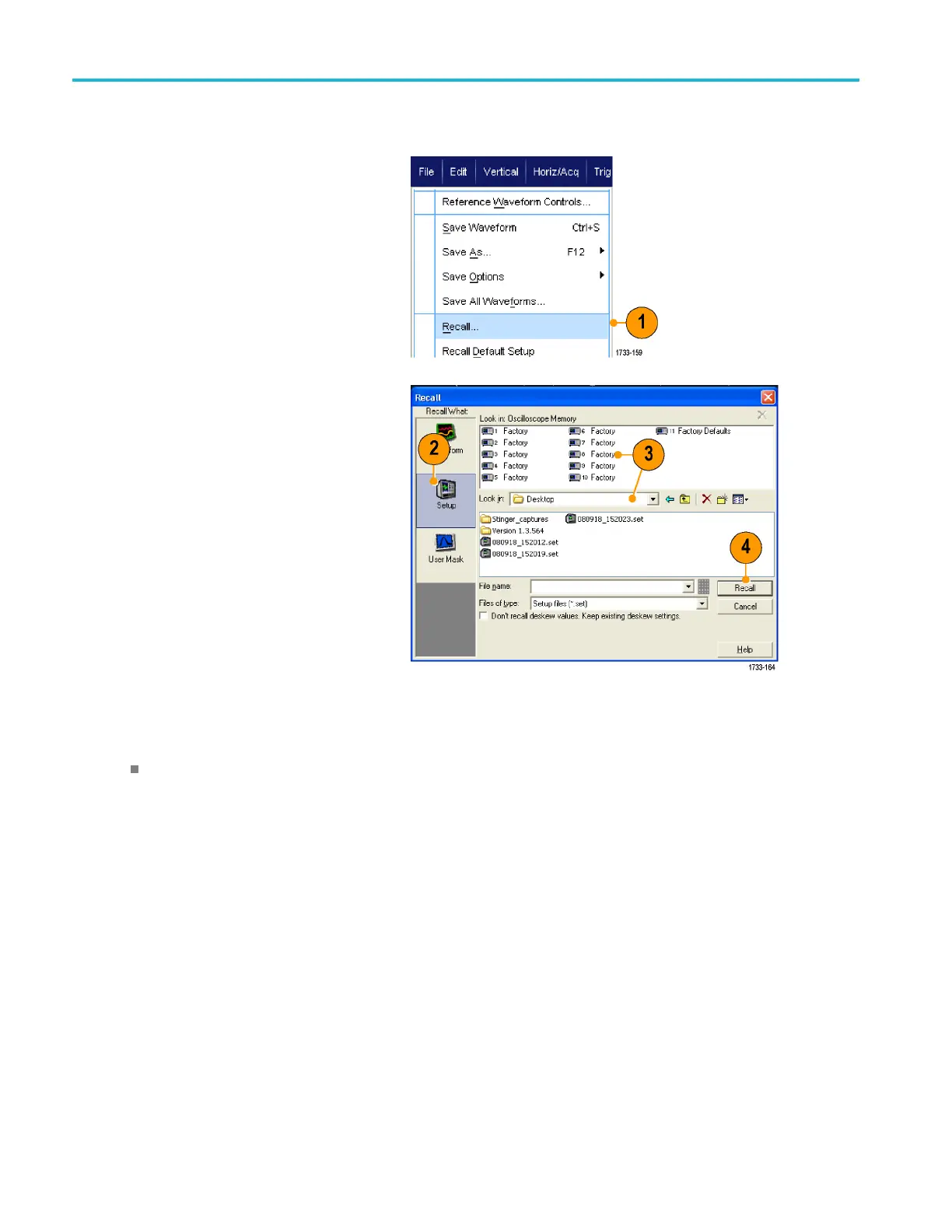

1. Select File > Recall....
2. Click Setup.
3. Select the setup you want to recall.
Recall a setup le from one of the ten
locations in the instrument memory or
from a Windows directory.
To retain your current deskew settings,
click Don't recall deskew values.
4. Click Recall.
Quick tip
You can recall any setup stored on disk and then save it in an internal setup storage location for quicker access.
158 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
