Bus pattern editor (Bus tab)

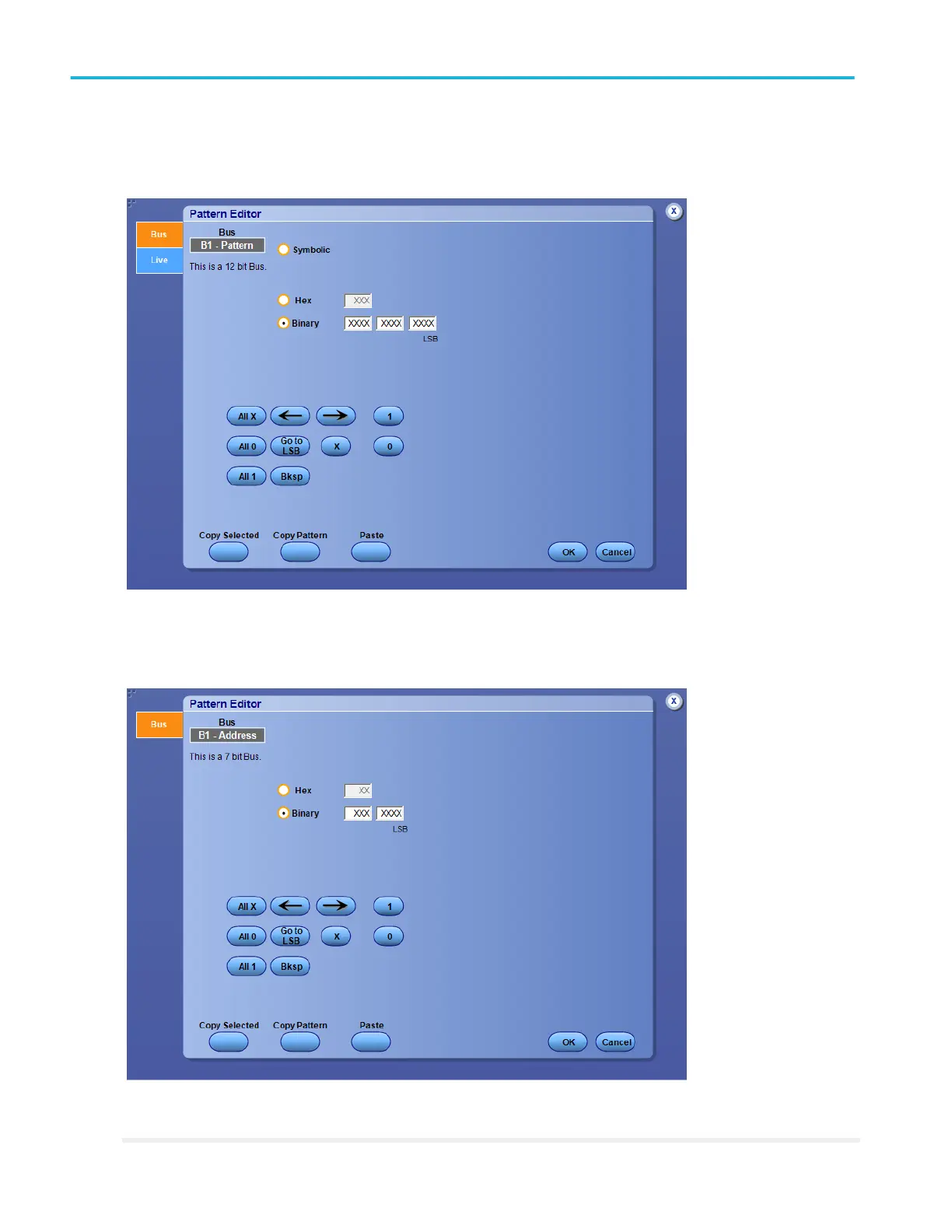

When you select a parallel bus and click the Edit button, use the Pattern Editor controls to set up the bus trigger pattern for the
instrument to use to detect a specific parallel bus value.
When you select a serial bus and click the Edit button, use the Pattern Editor controls to set up the bus trigger pattern for a serial
bus value. For example, the Data (SPI bus), or the Address, Data, or Address and Data (I2C bus) bus values.
What do you want to do next?
Oscilloscope reference
846 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
