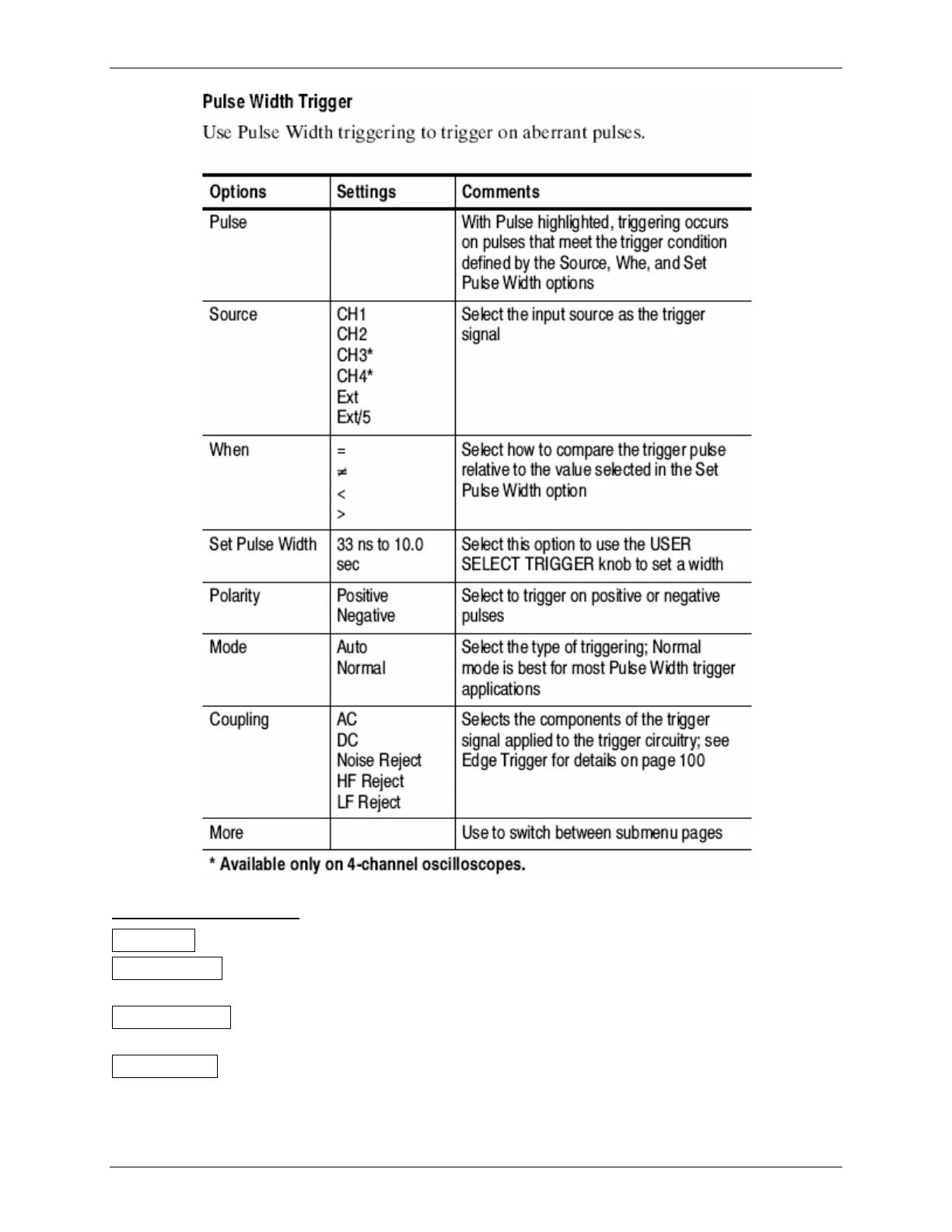

Other Trigger Controls
Level Dial Use to select which point on the wave to set the trigger.
SET TO 50% The trigger level is set to the vertical midpoint between the peaks of the trigger
signal.
FORCE TRIG Completes an acquisition regardless of an adequate trigger signal. This button
has no effect if the acquisition is already stopped.
TRIG VIEW Displays the trigger waveform in place of the channel waveform while the TRIG
VIEW button is held down. You can use this to see how the trigger settings affect the trigger
signal, such as trigger coupling.
Dr. Montoya Rev. 3/16/09
