Tutorial

2–10

TDS 684A, TDS 744A, & TDS 784A User Manual

NOTE. See Appendix A: Options and Accessories for optional probes you can

order and use with this product.

Do the following steps to reset the oscilloscope to a known factory default state

before doing the examples. (You can reset the oscilloscope anytime you begin a

new task and need to “start fresh” with known default settings.)

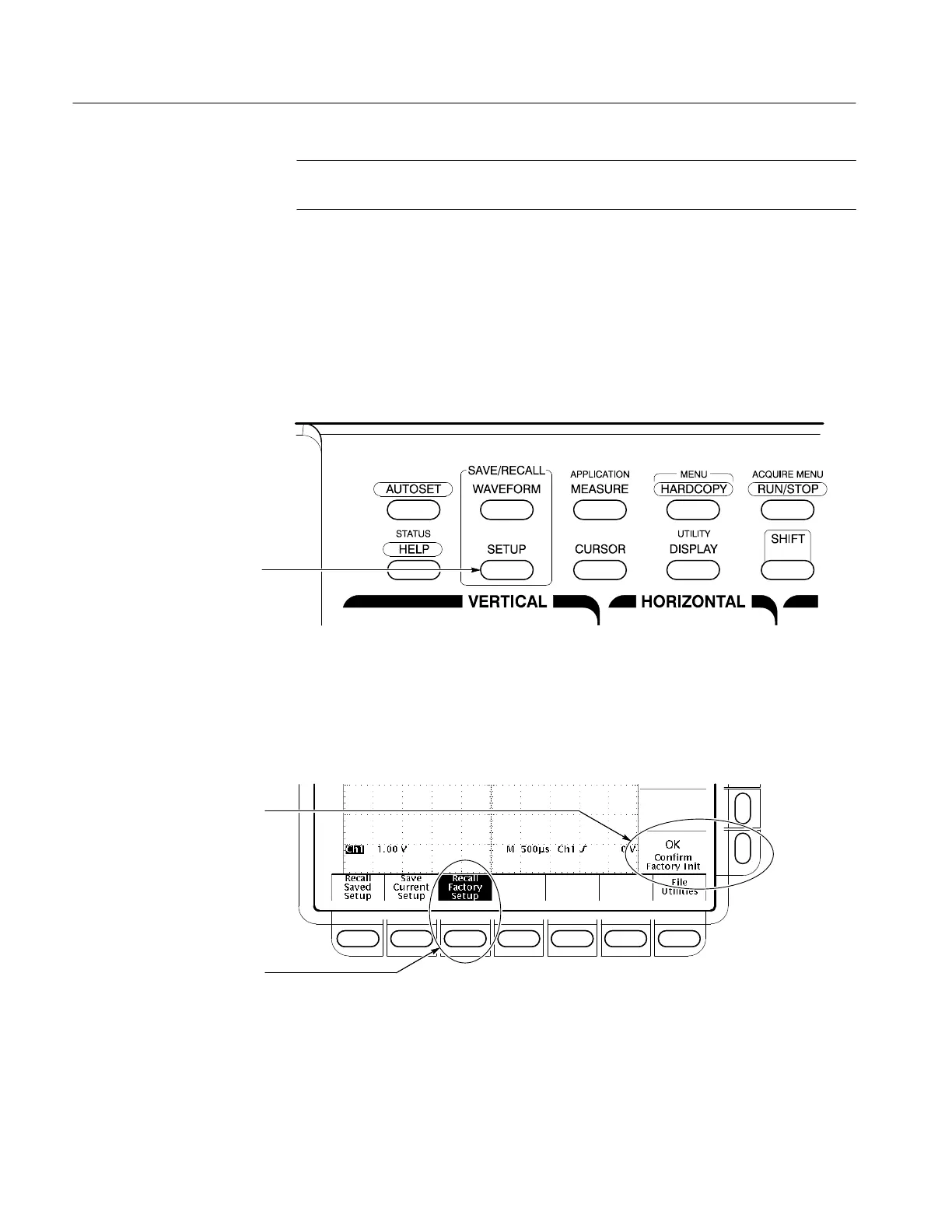

1. Press the save/recall SETUP button to display the Setup menu. (See

Figure 2–2.)

SETUP Button

Figure 2–2: SETUP Button Location

The oscilloscope displays main menus along the bottom of the screen.

Figure 2–3 shows the Setup main menu.

Recall Factory Setup

Menu Item and Button

OK Confirm Factory Init

Menu Item and Button

Figure 2–3: The Setup Menu

2. Press the button directly below the Recall Factory Setup menu item.

Reset the Oscilloscope
