Tektronix TDS1001B User Manual

Diagrams
7-- 2
TDS1000B and TDS2000B Series Oscilloscope Service Manual
Acquisition
ASIC--A
Power supply
Front
panel
Amp 1
Acq 1
A/D
Amplifier
ASIC--A
Amp 2
Acq 2
CH 1
CH 2
CH 3
CH 4
Trigger
Processor and
Display -- A
Main Board
Power
Acquisition
ASIC--B
Amp 1
Acq 1
Amplifier
ASIC--B
Amp 2
Acq 2
A/D
Trigger
Amp E
Amplifier
ASIC--B
Becomes part
of chain A on 2
channel
EXT
Microprocessor
Processor and
Display -- B
USB
interface
Note: Shaded area is only present in
4-channel models.
Amp E
Amplifier
ASIC--B
EXT
Display

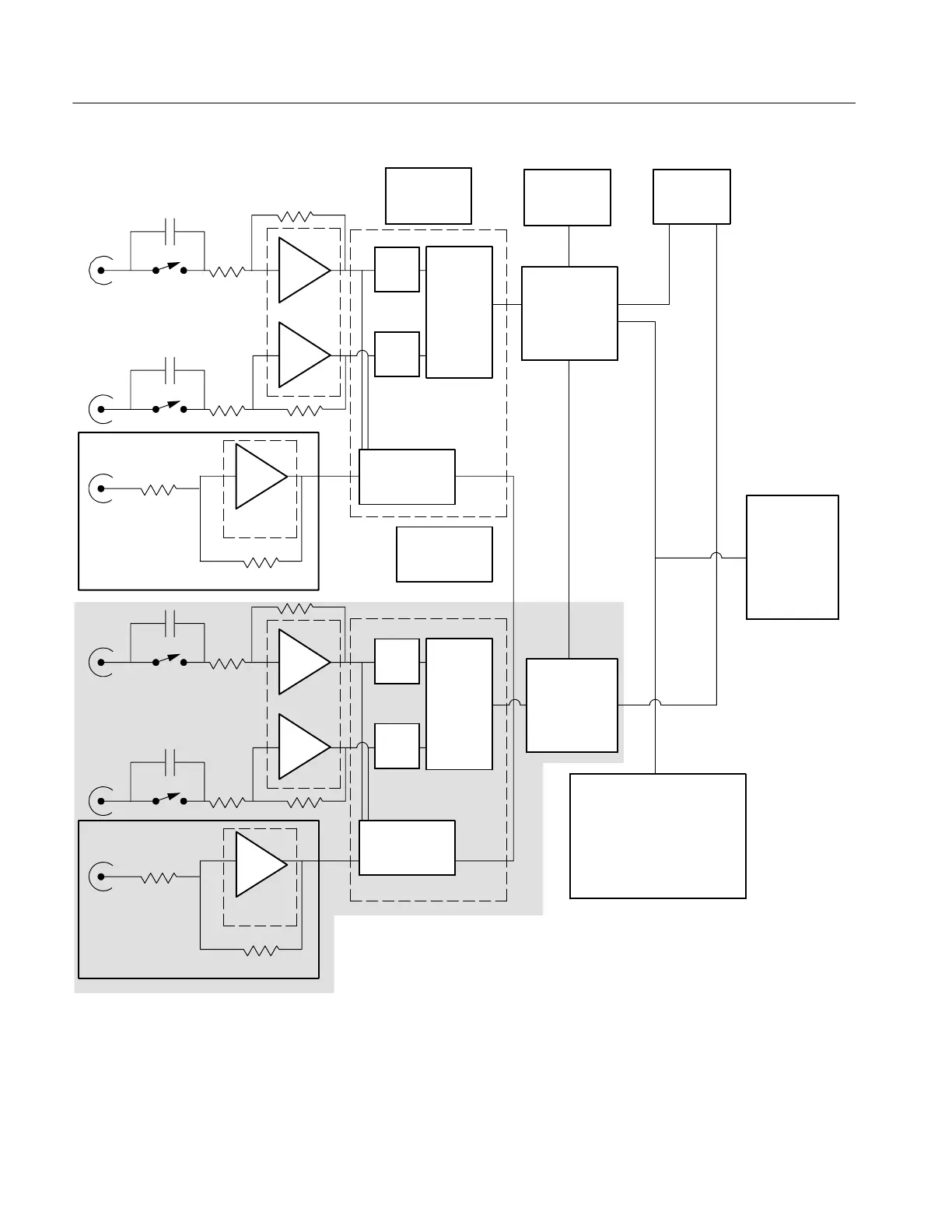

Figure 7--1: TDS1000B and TDS2000B series block diagram
