Maintenance
6–24
TDS3000 Series Service Manual
NOTE. It is possible to remove the inverter board without removing the front
chassis or display module. If this is the only thing you need to do, skip to step 1
on page 6–26.
4. Place the front chassis with the display facing you. See Figure 6–13.
5. Use your thumbs to slide the top display module tabs up until the overhang-
ing part of the tabs clear the chassis holes. See Figure 6–13.
6. Push the tabs through the chassis holes to remove the display module.
Chassis assembly
Side up and push out
Display chassis

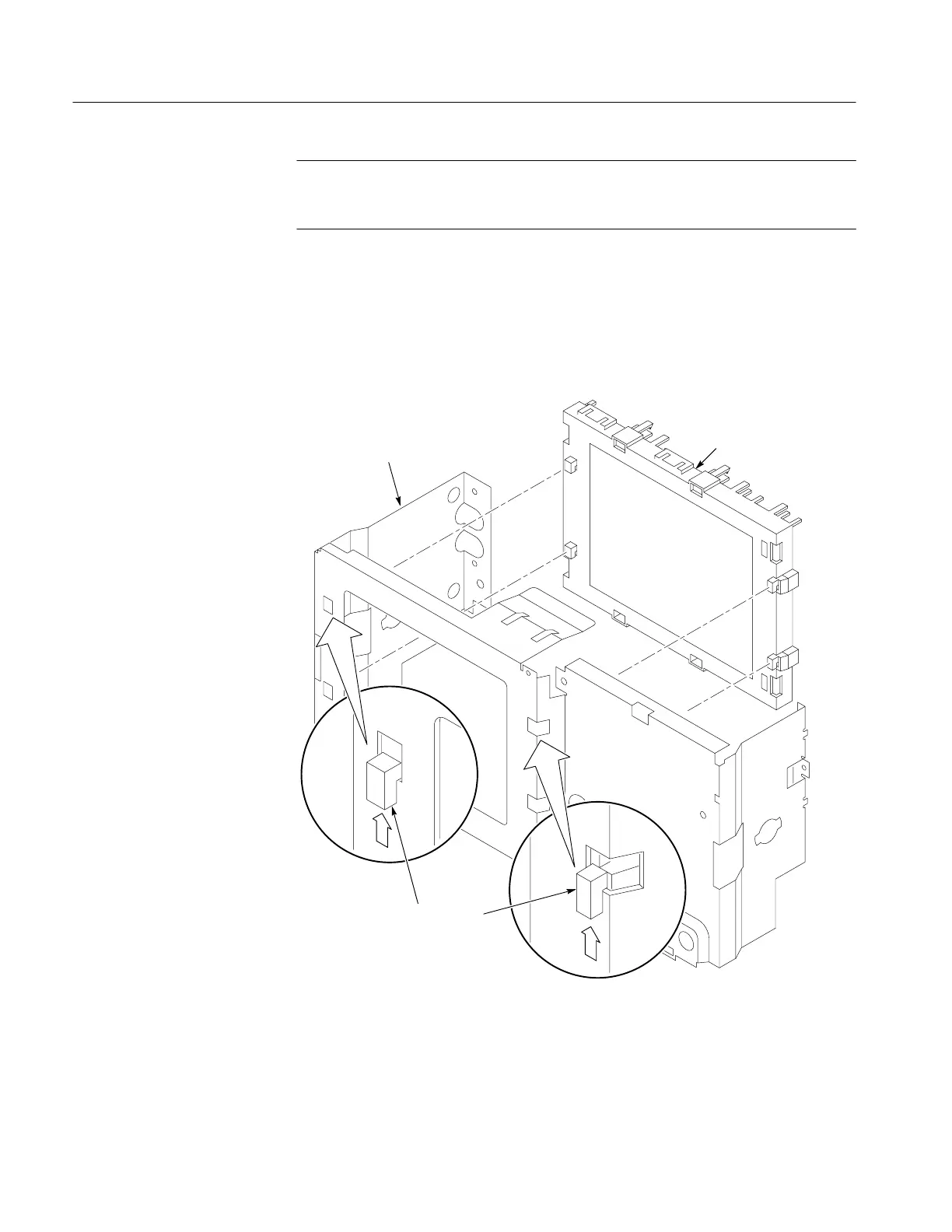

Figure 6–13: Display module
To Next Page
