Removal and Replacement Procedures

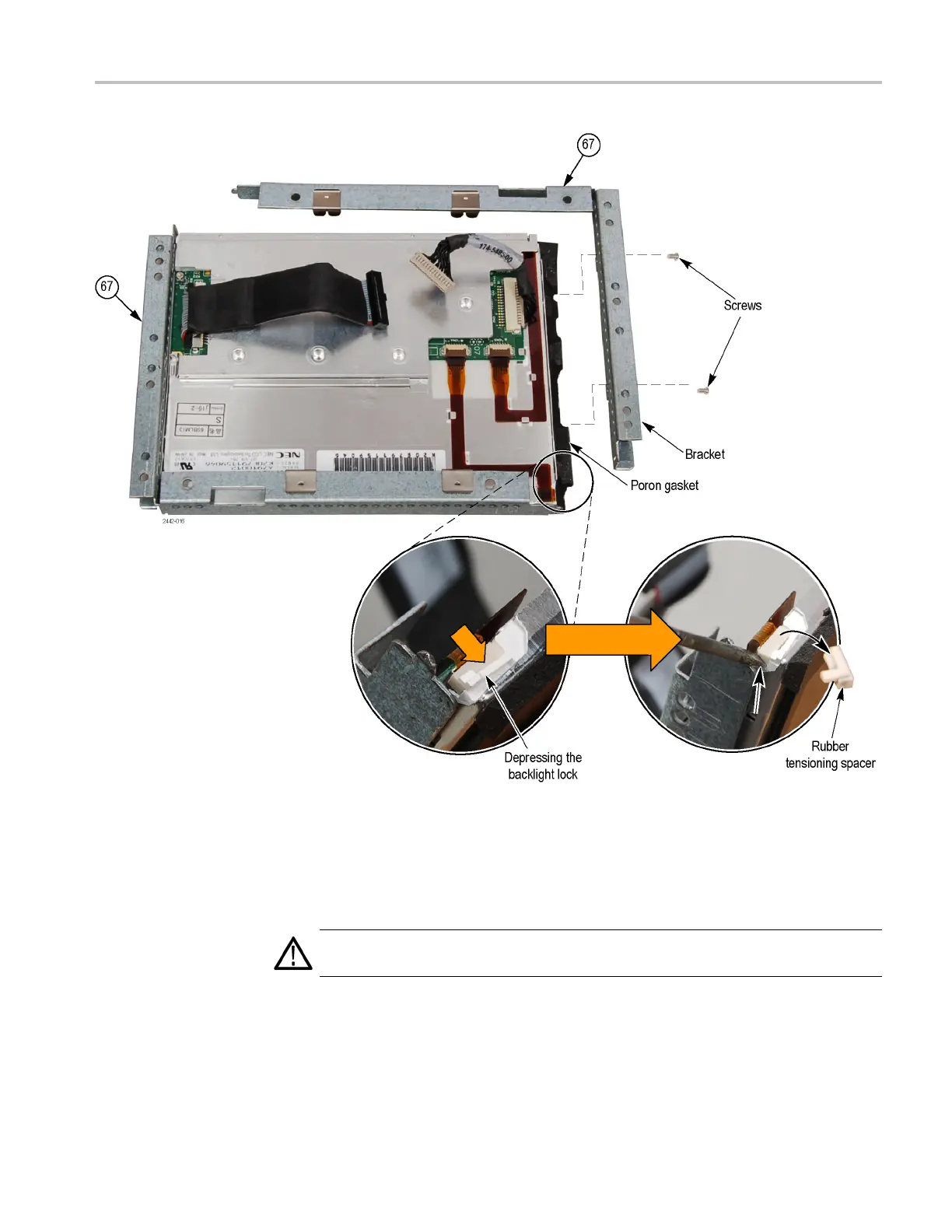

Figure 4-7: LCD Assembly bracket and backlight lock
4. Gently separate the poron gasket from the bracket and remove the bracket.
5. While depressing the small white plastic backlight lock (located on the corner
of the assembly), remove the rubber tensioning spacer using a thin object.
CAUTION. To prevent damage, do not bend the flex circuitry. Carefully remove the
flex circuit from the metal guides and connector latch.
WFM6120, WFM7020, and WFM7120 Waveform Monitors Service Manual 4–35
