The following table provides information on each connector, as well as a description:
Rear panel elements
Item Description
A DSL. DSL connector.
B USB. Slot where you can insert a 3G USB modem.
C 4-port Gigabit Ethernet Switch.
D RST. Reset button. For further information on how the reset button works, please
see RST Button on page 11
E WPS (Wireless Protected Setup). This allows for easy and secure configuration of
the WiFi network parameters.
F Eth WAN. WAN Gigabit Ethernet.
G On/Off switch.
H Power source connection (PSU).
Note
The WPS system is not currently included, but it will be available for future software versions.
3.1.3 Side Panels
Two Wi-Fi antennas are located on the side panels, one on either side.

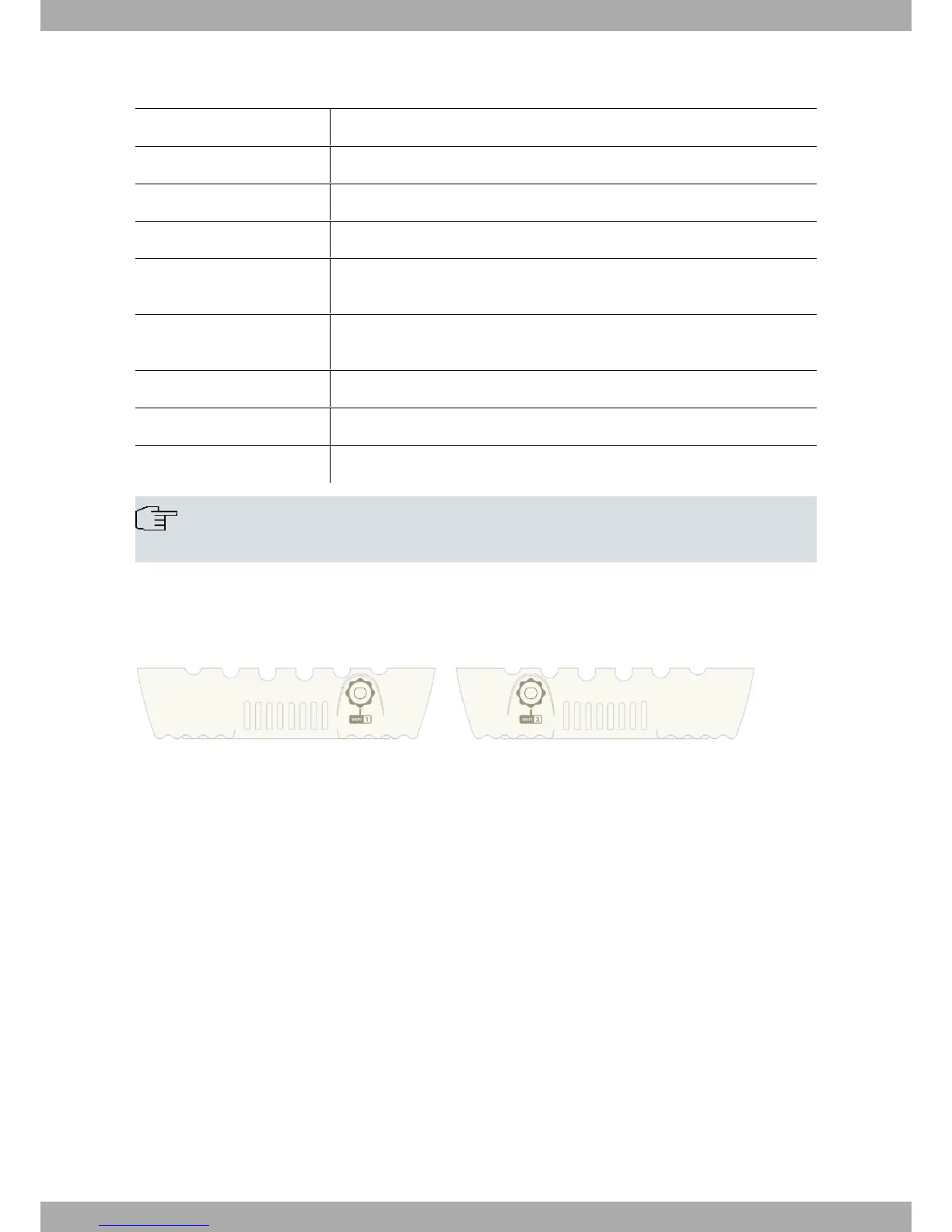

Fig. 3: Right hand side panel and Fig. 4: Left hand side panel
3.1.4 Underside Panel
The following elements can be found on the underside panel:
Teldat S.A.
3 Components and Power Supply
Teldat V Router 5
