Tenda TEG1024G User Manual

instructions:
 Put the switch in clean place where there is adequate ventilation
 Place the switch on stable desk in case of falling.
 Make sure there’s at least 10cm’s space for dissipation.
 Don’t put heavy articles on the Switch.
 When the devices need to be used by overlapping, make sure the
vertical distance is over 1.5cm.
 The power supply used should match the required power
specification of the switch.
2.2 Installation methods
TEG1016G/TEG1024G switch can be installed to desktop or standard
19-inch rack

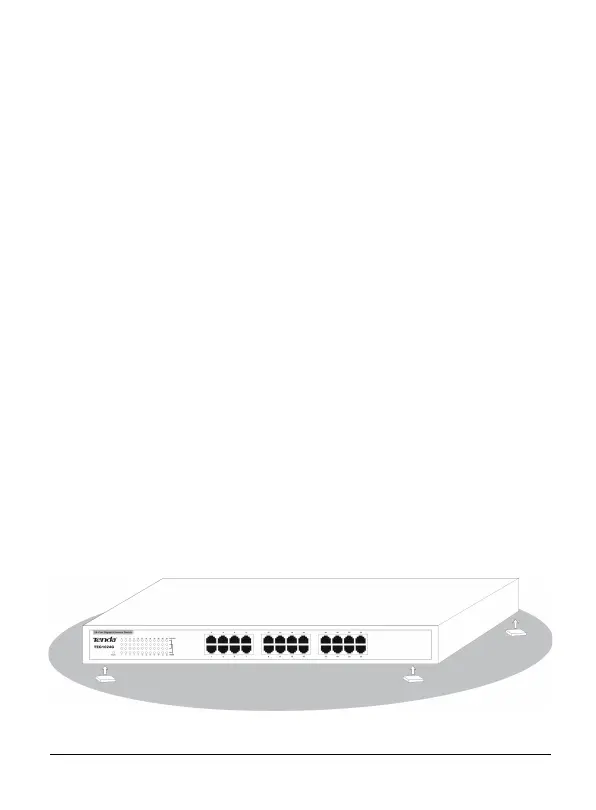

1. Install the switch to the desktop.
Install the 4 included foot pads to the corresponding position at the
bottom of the switch and then place it on the desktop.
6

Tenda TEG1024G Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Input frequency	50/60 Hz
Size (imperial)	19 \
Dimensions (WxDxH)	208 x 440 x 44 mm
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity technology	Wired
Switch type	Unmanaged
Switch layer	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
SFP/SFP+ slots quantity	0
Basic switching RJ-45 Ethernet ports quantity	24
Certification	CE, RoHS
Product color	Blue
LED indicators	Link, Power
Housing material	Metal
Input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990
