Thermor Aeromax Piscine 10 User Manual

* Data provided for information purposes for a heat pump power
cable less than 20m long. In case of a longer cable, please refer to
the standard.
Power
(kW)
Rated
current
(A)
D curve
circuit
breaker (A)
Cable
diameter*
8 8.4 16 3G 2.5
2
10 9.5 16 3G 2.5
2
12 10 16 3G 2.5
2
14 15.6 20 3G 4
2

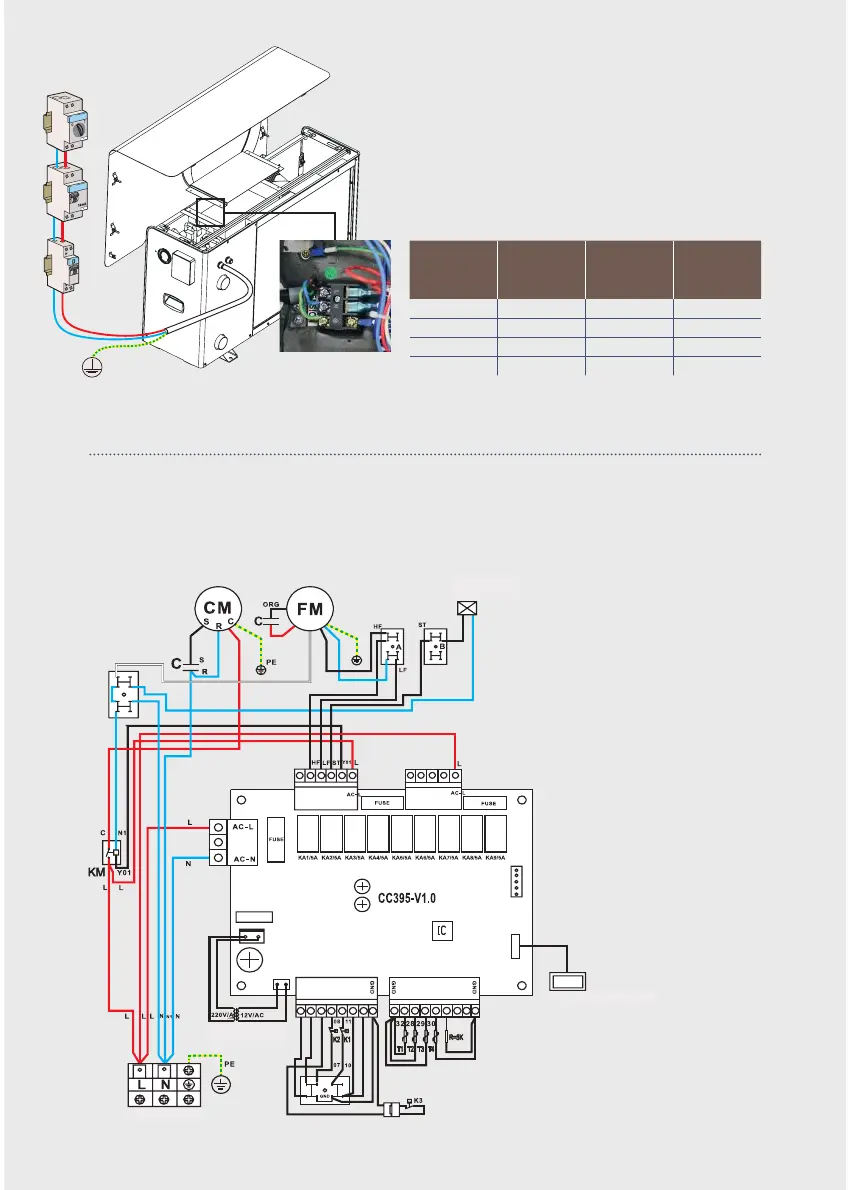

WIRING DIAGRAM FOR MAINTENANCE
OF YOUR AEROMAX SWIMMING POOL 2
WIRING DIAGRAM FOR
COMMISSIONING YOUR
AEROMAX SWIMMING POOL 2
T1 Ambient temperature
T2 Water inlet
temperature
T3 Water outlet
temperature
T4 Heating element
temperature
K1 Low-pressure
contactor
K2 High-pressure
contactor
K3 Water flow rate
FM Fan
CM Compressor
KM Alternating current
contactor
four-way
valve
Transformer
Wired regulator
VOLTAGE
