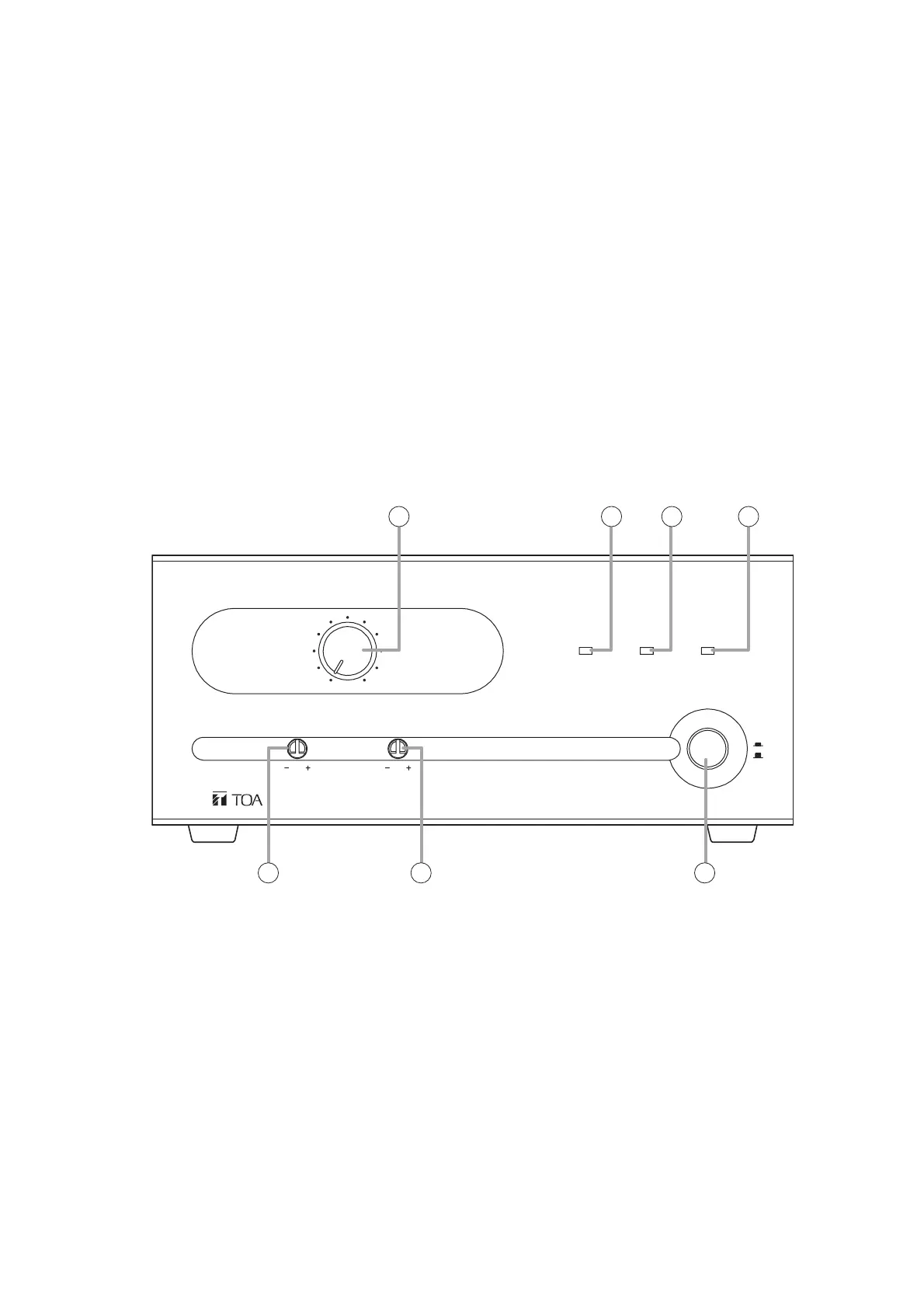

This figure represents the BA-260.
5. NOMENCLATURE AND FUNCTIONS
[Front]
1. Power switch
Power is switched on and off with each
depression of this switch.
2. Power indicator
Lights blue when the Power switch (1) is switched
on.
3. Master volume control
Adjusts the gain of the Line input.
Turn the knob clockwise to increase the level and
counterclockwise to decrease it.
4. Signal level indicator
Lights green when audio signals are output from
the speaker output terminal.
5. Peak indicator
Lights red if output signals approach clipping level.
If steady lit, turn down the Master volume control
until the indicator flashes intermittently.
6. Bass control
Turn the control clockwise to increase bass level
and counterclockwise to decrease it.
The center position of the control provides flat
frequency response.
7. Treble control
Turn the control clockwise to increase treble level
and counterclockwise to decrease it.
The center position of the control provides flat
frequency response.
3. GENERAL DESCRIPTION
The BA-235 (35 W) and BA-260 (60 W) are Power Amplifiers for background music and general
announcement. These units are suited for use in bars, retail stores, and banquet rooms. When used in
conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be
made.
4. FEATURES
• Remote master volume control using an external volume control.
• Supplied volume control cover prevents accidental operation of the Master volume knob.
• Front operable bass and treble controls.
Also front panel recessed knobs help to prevent accidental operation.
• Removable input/output terminal blocks facilitate installation and maintenance.
Besides, RCA jacks provided for LINE input.
