1. Hydraulic Pump (Oil Reservoir): Regulates hydraulic oil flow produced by the direction
of the control lever.
2. Liing Hook: When liing of the compactor is required either by forkli, crane, etc., tie
rope or chain around this liing spot.
3. Vibrating Plate: A flat, open plate made of durable cast iron construction used in the
compacting of soil.
4. Front Cover: Open to access engine and other components.
5. Engine: This plate compactor uses a 4-sroke series gasoline engine. Refer to the
owner’s manual for engine information.
6. Direction Control Lever: Push the lever forward to move compactor in a forward
direction.
Pull the lever backwards to move compactor in backwards direction. Placing the lever in the
middle (midway) will cause the compactor not to move (neutral).
7. Throttle Lever: Controls speed of the plate compactor. Place straight vertically to start,
push fully counterclockwise for full throttle and fully clockwise to stop plate compactor.
8. Handle Bar: When operating the compactor, this handle is to be in the downward
position.
When the compactor is to be stored, move the handle bar to the upright position.
9. Vibration Case Oil Filter: Used to add oil to the vibration case.
10. Breather Plug: Allow pressure to escape to the air in the form of a gas from heat.
11. Hand Grip: When operating the compactor use this hand grip to maneuver the
compactor.

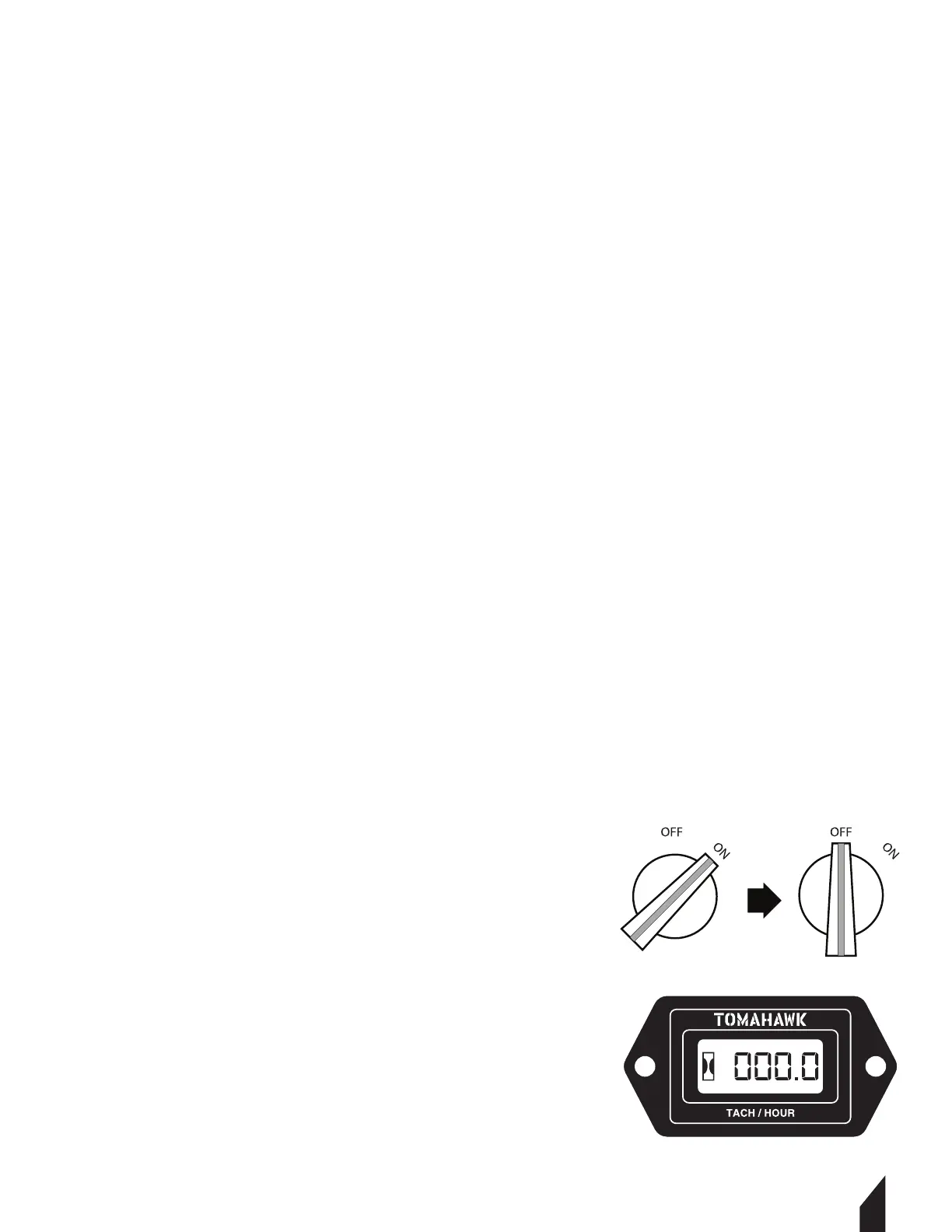

12. Engine ON-OFF Switch: Used to turn the engine on or
off.
13. Extension Plates: The extension plates add an
additional 2” on either side of the plate
14. Tachometer (Optional): Enhance your plate
compactor experience with the optional tachometer,
providing real-time RPM readings for precise control and
performance monitoring. Call the Tomahawk Support
Team at (866) 577-4476 for more information.
