Tornado HI-FAN-W16DIGIT-1P User Manual

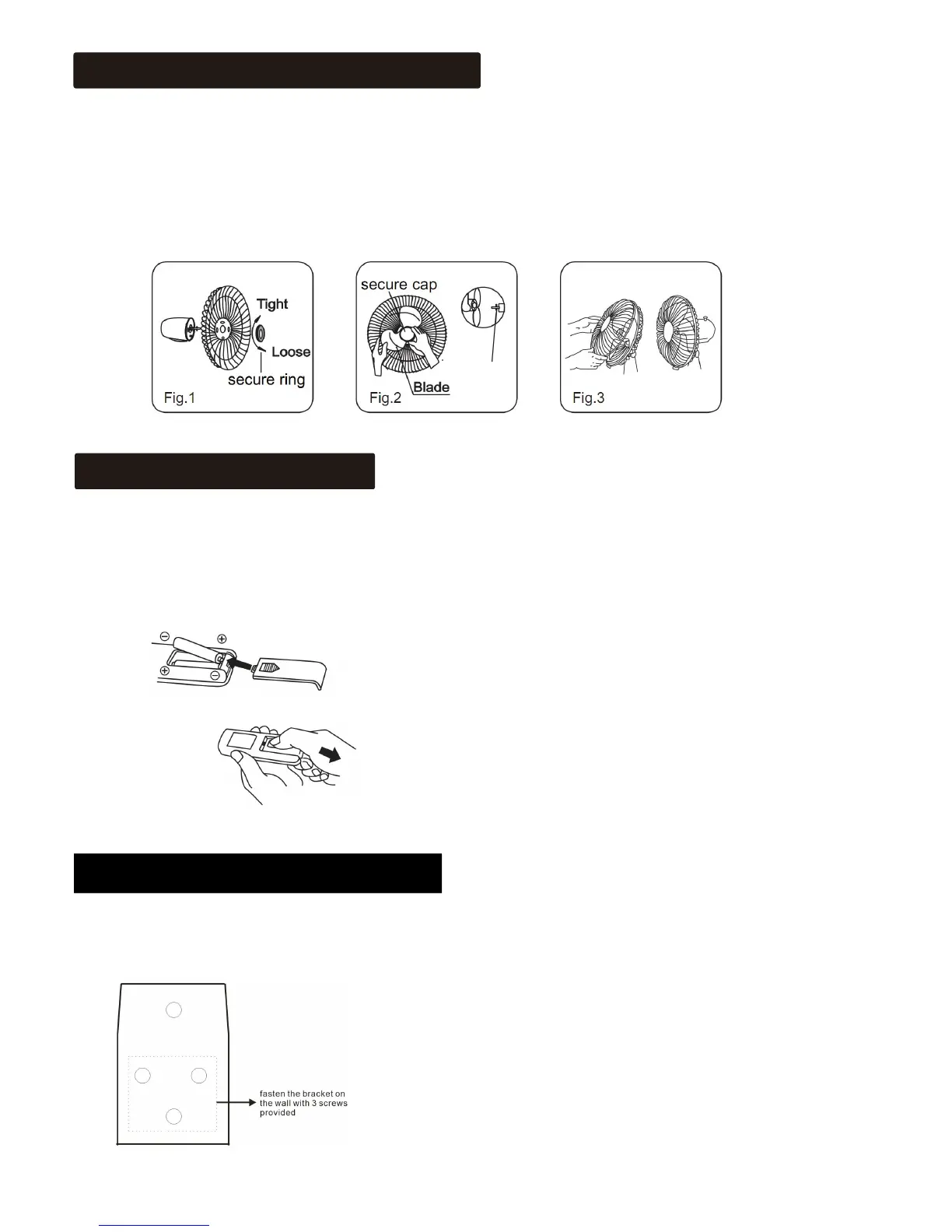

ASSEMBLY COMPONENTS
BATTERY WARNING
1. Unscrew the secure ring clockwise from the fan motor. Fix the rear grill to the motor then tighten
the secure ring again (see fig.1);
2. Insert the blades into the motor shaft pin, and turn the fan blade securing cap counterclockwise
to tighten the blade (see fig.2).
3. Fix the front grill and the rear grill with circlip clip and then use the fasten clip to tighten the fan grill
(see fig.3).
ING THE TEMOTE CONTROL
1. Do not dispose of batteries in fire, batteries may explode or leak;
2. Do not mix old and new batteries;
3. Do not mix alkaline, standard(carbon-zinc) or rechargeable (nickel-cadmium) batteries.
1. Drill 3 holes on the wall where the fan intended to be mounted, and insert the 3 drywall plugs into the hole;
2. Fix the fan bracket on the wall with inserting and tightening the screws provided into the drywall plugs;
3. Hang the fan upward onto the wall bracket and tighten the white screw nut provided to secure the fan.
MOUNTING ON THE WALL

Tornado HI-FAN-W16DIGIT-1P Specifications

General

Brand	Tornado
Model	HI-FAN-W16DIGIT-1P
Category	Fan
Language	English
