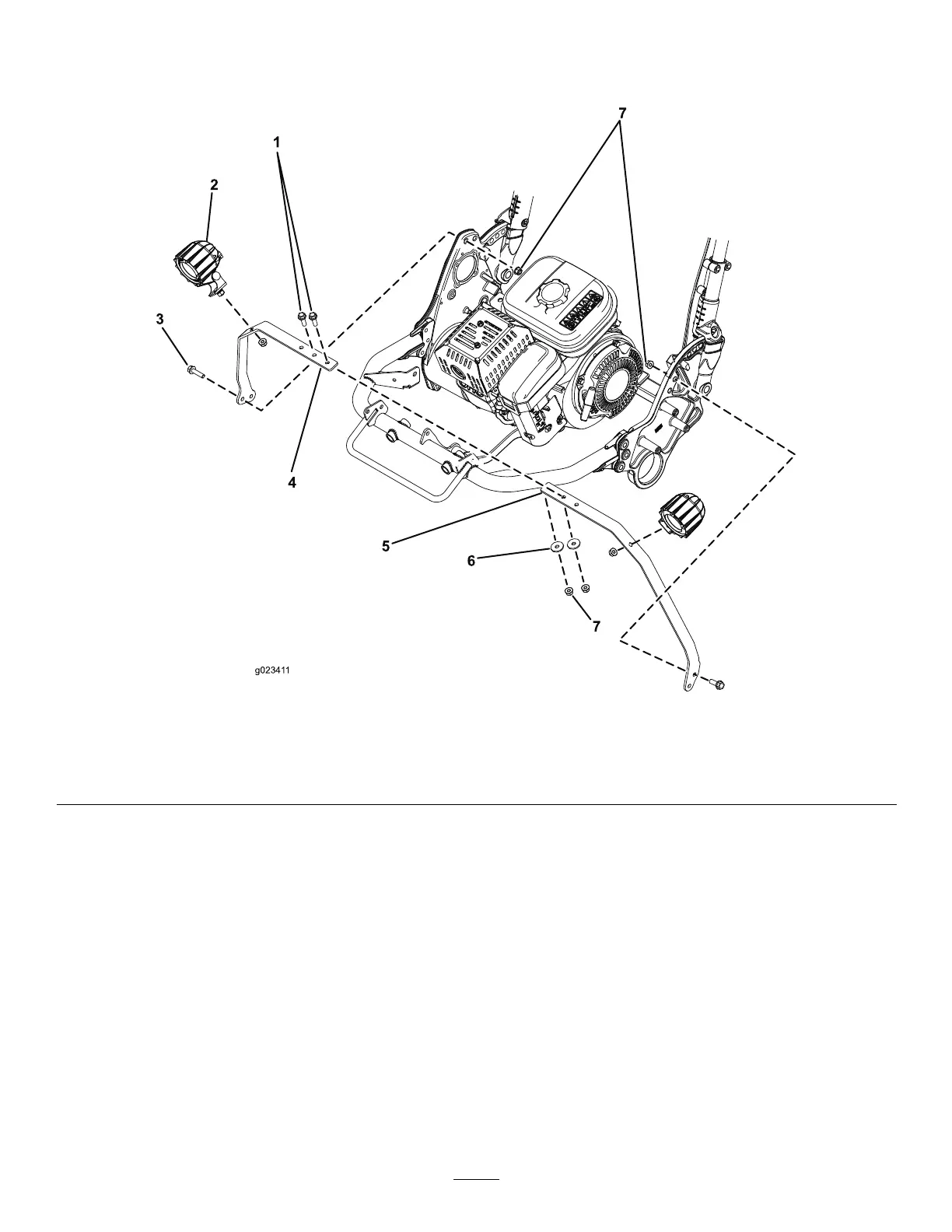

1.Mounttherightbartotherightsideofthemower
usingtwobolts(5/16x1–1/4inch)andtwoange
nuts(Figure1).
2.Repeattheprocedurefortheleftside,usingtheleft
bar.
7
g02341 1
1
2
3
4
5
6
7
Figure1
1.Bolt(5/16x1inch)
4.Rightbar7.Flangenut
2.LEDlight
5.Leftbar
3.Bolt(5/16x1–1/4inch)
6.Washer
2
