Steering Adjustment
If the tractor turns tighter in one direction than the other,
or if the ball joints are being replaced due to damage or
wear, the steering drag links may need to be adjusted.
Adjust the drag links so that equal lengths are threaded
into the ball joint on the left side and the ball joint on the
right side:
1. Loosen the jam nut found on the drag link at the
rear of the ball joint. See Figure 16.

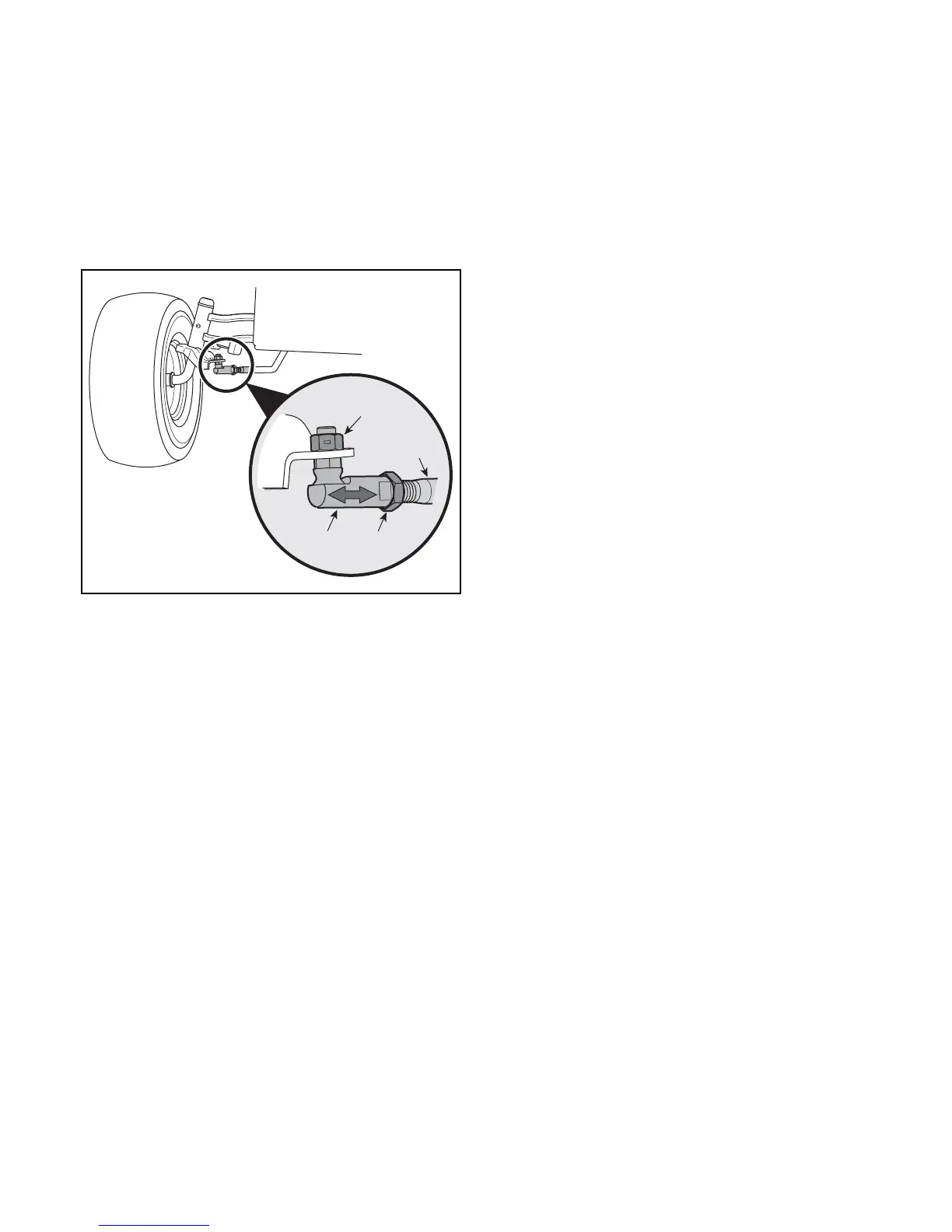

Figure 16
2. Remove the hex nut on the top of ball joint. See
Figure 16.
3. Thread the ball joint toward the jam nut to shorten
the drag link. Thread the ball joint away from the
jam nut to lengthen the drag link.
4. Replace hex nut and retighten the jam nut after
proper adjustment is achieved.
NOTE: Threading the ball joints too far onto the drag
links will cause the front tires to "toe-in" too far. Proper
toe-in is between 1/16" and 5/16".
Front tire toe-in can be measured as follows:
1. Place the steering wheel in position for straight
ahead travel.
2. In front of the axle, measure the distance
horizontally from the inside of the left rim to the
inside of the right rim. Note the distance.
3. Behind the axle, measure the distance horizontally
from the inside of the left rim to the inside of the
right rim. Note the distance.
4. The measurement taken in front of the axle should
be between 1/16" and 5/16" less than the
measurement taken behind the axle.
5. Adjust if necessary.
Hex Nut
Jam
Nut
Ball
Joint
Drag Link

Toro 13AX60RH744 Specifications

General

Engine Displacement	190cc
Deck Material	Steel
Number of Blades	1
Speed Control	Variable Speed
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Engine Power	6.0 ft-lb Gross Torque
Engine	Briggs & Stratton
Cutting Width	22 in
Blade Tip Speed	18, 000 feet per minute
Drive Type	Rear Wheel Drive
Drive System	Rear Wheel Drive
Weight	80 lbs
Warranty	2 years limited
