SECTION 2: SAFETY AND INSTRUCTIONAL LABELS

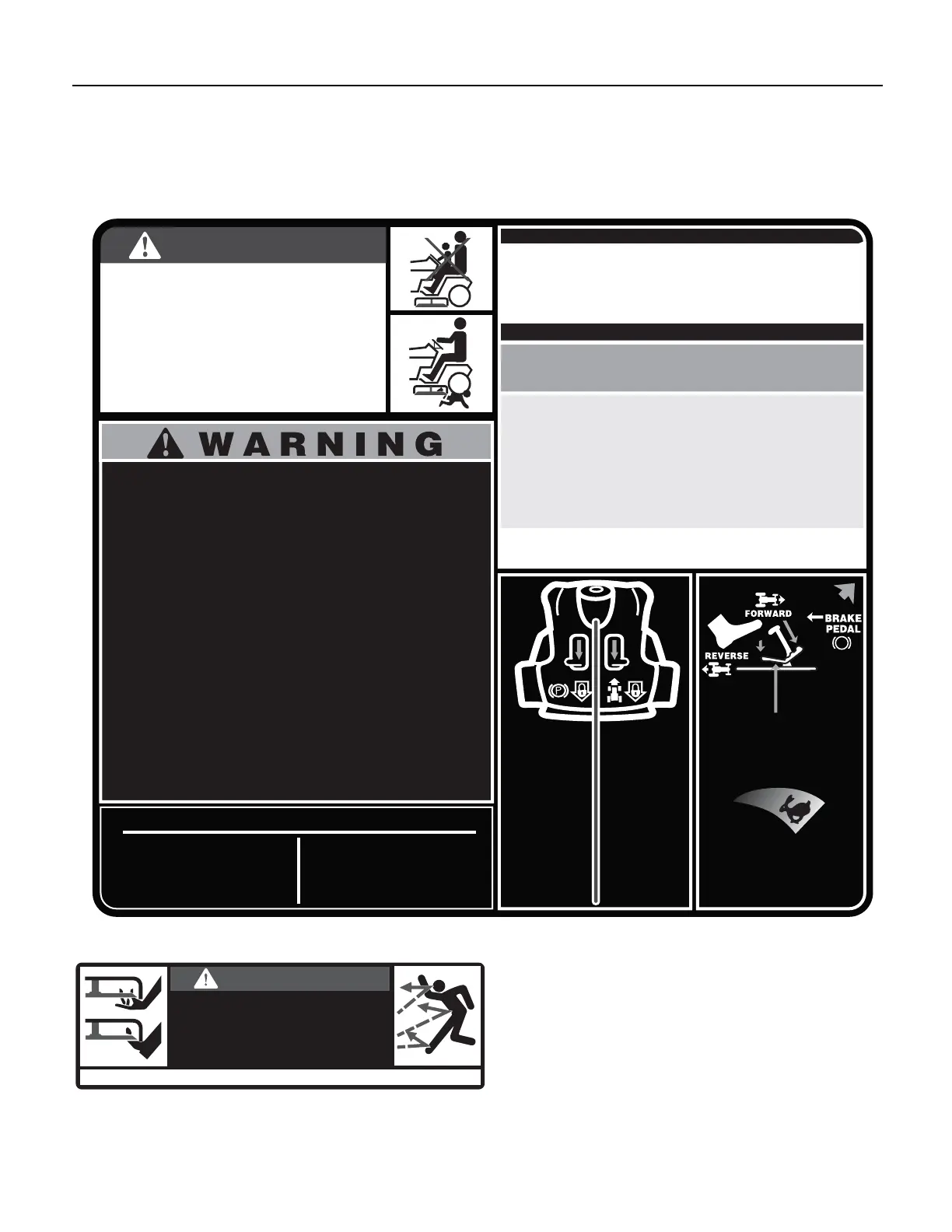

Safety and instructional labels found on your lawn tractor are illustrated below (3/4 actual size). Always follow their
instructions and heed their warnings. If you discover a safety label is scratched, damaged or missing, order a replacement
immediately.
DANGER
KEEP HANDS AND FEET AWAY.
DO NOT OPERATE MOWER
UNLESS CHUTE DEFLECTOR
OR ENTIRE GRASS CATCHER IS
IN ITS PROPER PLACE.
ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.
S30503
Part No. 112-1265
ROTATING BLADES CAUSE
SERIOUS INJURY OR DEATH
• DO NOT MOW WHEN CHILDREN OR OTHERS ARE
AROUND
•
NEVER CARRY CHILDREN EVEN WITH BLADE(S) OFF.
• LOOK DOWN AND BEHIND BEFORE AND WHILE
BACKING.
• MOWING IN REVERSE IS NOT RECOMMENDED.
DANGER
OPTIONAL ATTACHMENTS
TO START
OPERATING MODES
REVERSE CAUTION MODE
1. TURN KEY TO REVERSE CAUTION MODE POSITION.
2. DEPRESS REVERSE PUSH BUTTON. (RED INDICATOR LIGHT “ON”)
WHEN RED LIGHT IS “ON” MACHINE CAN BE OPERATED IN REVERSE
WITH
MOWER BLADES ENGAGED.
IMPORTANT: MOWING IN REVERSE IS NOT RECOMMENDED.
3. AFTER RESUMING FORWARD OPERATION, RETURN KEY TO
“NORMAL MOWING” POSITION.
NOTE: IN BOTH MODES, WHEN OPERATOR LEAVES SEAT, ENGINE WILL
STOP UNLESS PARKING BRAKE IS SET AND BLADES ARE DISENGAGED.
NORMAL MOWING
YOU MUST DISENGAGE BLADES/PTO,
(POWER TAKE OFF)
BEFORE
T
RAVELING IN REVERSE.
DEPRESS
BRAKE PEDAL,
PUSH PARKING
BRAKE LEVER
DOWN AND
RELEASE PEDAL
TO LOCK
DEPRESS SPEED
CONTROL PEDAL
TO DESIRED SPEED.
PUSH CRUISE
CONTROL LEVER
DOWN AND RELEASE
PEDAL. PRESS
BRAKE OR
SPEED CONTROL
TO RELEASE
PARKING
BRAKE
CRUISE
CONTROL
Twin Bagger for 42" Deck.
Mulch Kit for 42" Deck.
Twin Bagger for 46" Deck.
Mulch Kit for 46" Decks.
TO AVOID SERIOUS INJURY OR DEATH
• GO UP AND DOWN SLOPES, NOT ACROSS.
• AVOID SUDDEN TURNS.
• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIP.
• IF MACHINE STOPS GOING UPHILL, STOP BLADE(S)
AND BACK DOWNHILL SLOWLY.
• KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND
SWITCHES, ETC.) IN PLACE AND WORKING.
• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE(S).
• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE
PLACING HANDS OR FEET NEAR BLADE(S).
• BEFORE LEAVING OPERATOR'S POSITION, DISENGAGE
BLADE(S), ENGAGE PARKING BRAKE, SHUT OFF AND
REMOVE KEY.
READ OPERATOR'S MANUAL
46" Dozer Blade.
42" 2 Stage Snowthrower.
Bumper Kit.
Tool and Storage Chest.
DIRECTIONAL SPEED
CONTROL PEDAL
1. DISENGAGE BLADES/PTO, (POWER TAKE OFF)
2. ENGAGE THE TRACTOR’S PARKING BRAKE.
3. ACTIVATE THE CHOKE CONTROL.
4. TURN KEY TO START ENGINE. AFTER START RELEASE KEY & DEACTIVATE CHOKE
BY PLACING THROTTLE TO
FAST “RABBIT”
POSITION.
Part No. 112-5958
