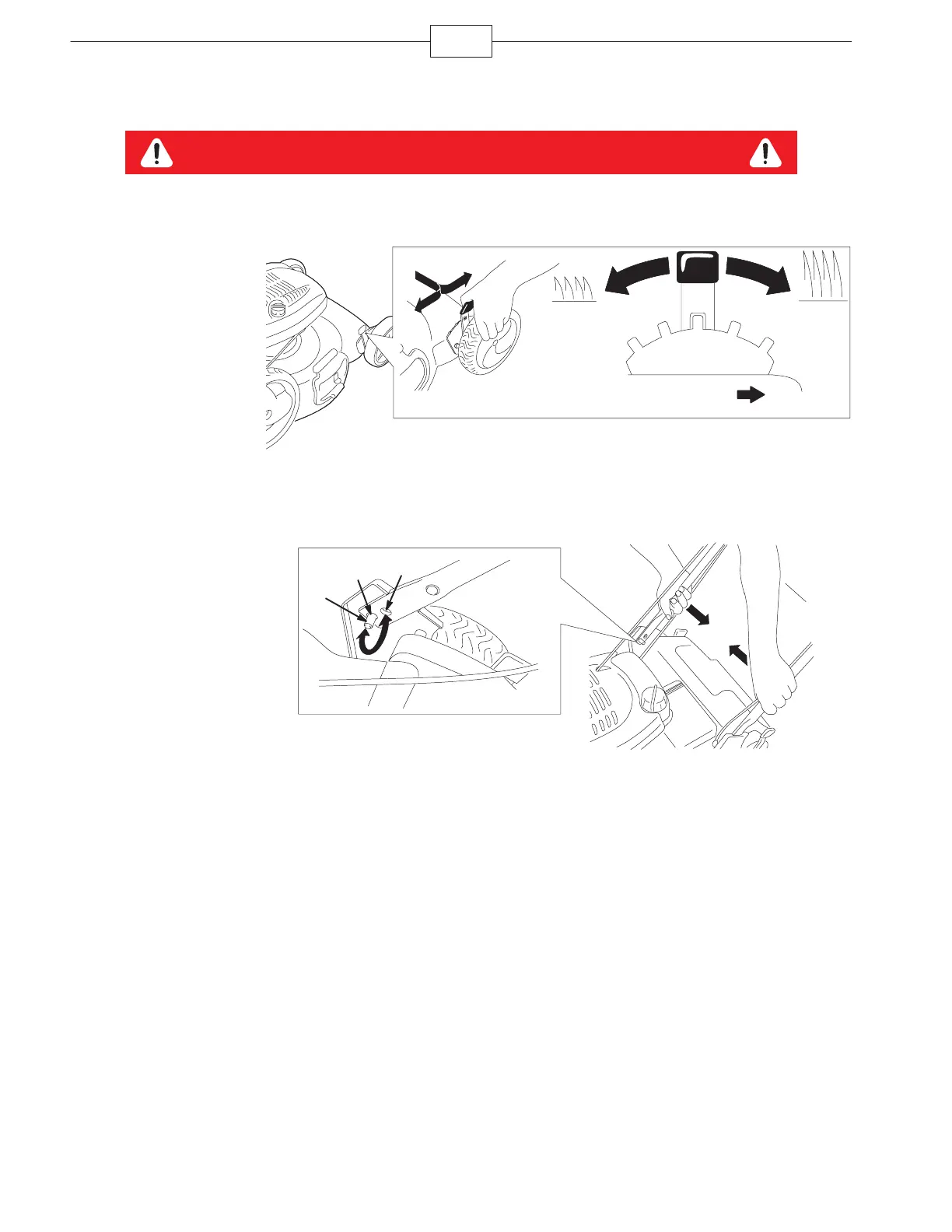

Adjusting the Cutting Height
Caution
If the engine has been running, the muffler will be hot and can severely burn you.
Keep away from the hot muffler.
Adjust the cutting height
as desired. Set all four
wheels to the same
height.
Note: To raise the mower,
move the front cutting
height levers forward and
the rear cutting height
levers rearward; to lower
the mower, move the
front levers rearward and
the rear levers forward.
1-5/8,
1-1/4,
2,
2-3/8,
2-3/4,
3-1/8,
3-7/8,
4-1/4,
3-1/2,
m-5629
m-5605a
m-5653
FRONT
Note: Only a front cutting height lever is shown. The rear cutting height
levers operate in the opposite direction to achieve the same result.
Adjusting the Handle Height
Squeeze the bottom of
the handle halves
together (as shown) and
change the handle holes
in which the pins (A) are
mounted, as follows:
• Raise the handle
using hole (B).
• Lower the handle
using hole (C).
m-5612
m-5614
A
B
C
