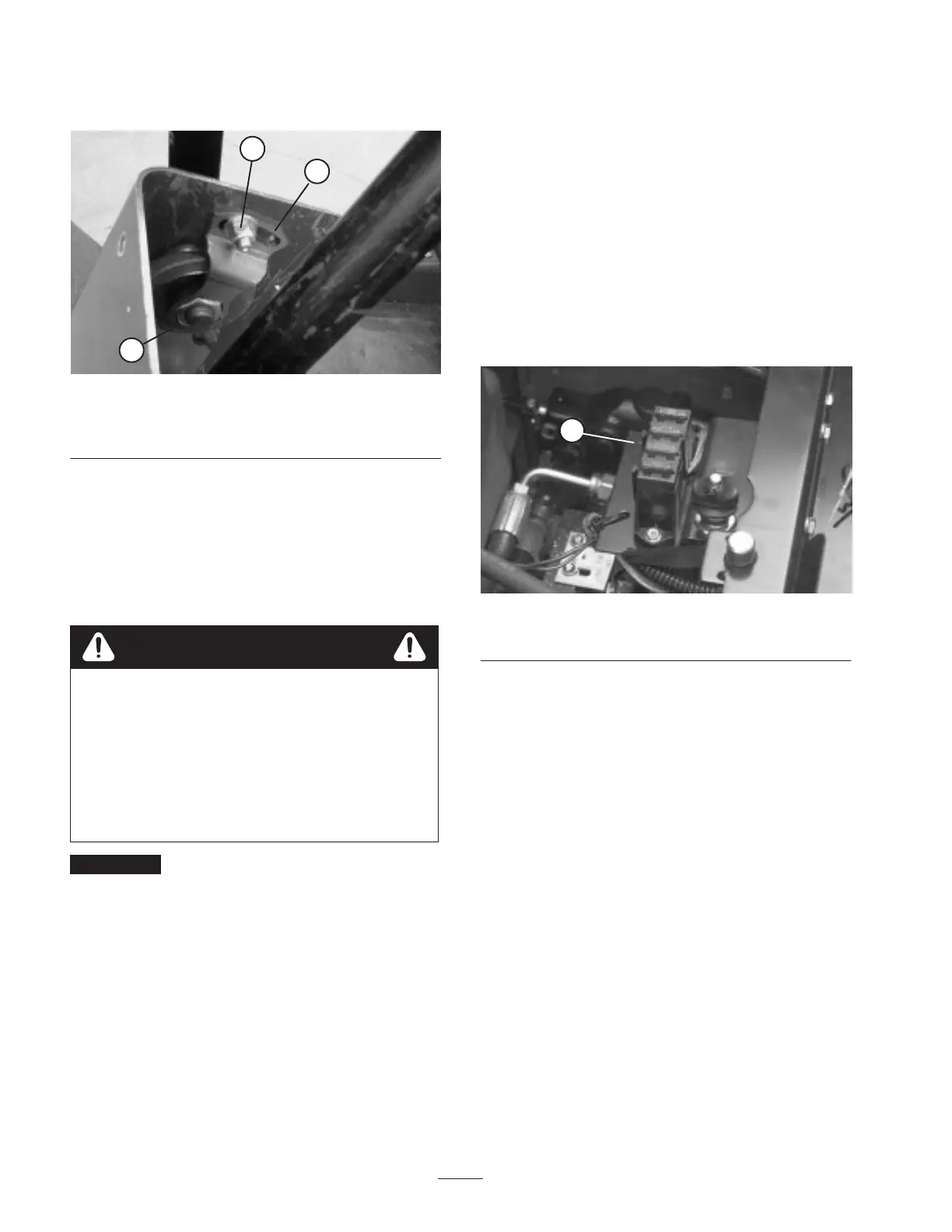

2. Slide cover up steering shaft to expose pivot bracket
(Fig. 44).
1
2
3
Figure 44
1. Pivot plate
2. Small nut
3. Large nut
3. Loosen small nut, rotate pivot bracket until it tightens
large nut below (Fig. 44). Retighten small nut.
4. Reinstall steering column cover and parking brake
knob.
Servicing Battery
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals
known to the State of California to cause cancer
and reproductive harm. Wash hands after
handling.
Warning
Important Before welding on the machine, disconnect
ground cable from the battery to prevent damage to the
electrical system.
Note: Check battery condition weekly or after every 50
hours of operation. Keep terminals and entire battery case
clean because a dirty battery will slowly discharge. To
clean the battery wash the entire case with solution of
baking soda and water. Rinse with clear water. Coat the
battery posts and cable connector with Grafo 112X
(Skin-over) grease, Toro Part No. 505-47 or petroleum jelly
to prevent corrosion.
Wiring Harness Service
Prevent corrosion of wiring terminals by applying Grafo
112X (Skin-over) grease, Toro Part No. 505-47, to the
inside of all harness connectors whenever the harness is
replaced.
Whenever working with the electrical system, always
disconnect battery cables, negative (–) cable first, to
prevent possible wiring damage from short-outs.
Fuses
Fuses are accessible under seat plate (Fig. 45). All fuses are
10 amp.
1
Figure 45
1. Fuses
