Specifications
• Flow rate: 0.05–4.58 GPM
(0,2–17 LPM)
• Recommended operating
pressure: 20–50 psi
(1,4–3,5 Bar)
• Maximum operating pressure:
75 psi (5,2 Bar)
•
1
⁄2" (13mm) female-threaded
inlet
570Z Series
Sprinklers
0'–17' (0–5m) Radius
Features
• Zero-flush seal prevents
flushing on pop-up
• Retraction flushing clears debris
for reliable pop-down
• Low-pressure sealing at 15 psi
(1 Bar)
• Small, 2" (50mm) diameter cap
is less visible, reducing damage
from exposure or vandals
• Accepts all Toro spray
nozzles—including 570 MPR
Plus, Toro variable arc, bubbler
and low-angle nozzles
• Accepts Maxijet
®
nozzles for
low-application-rate irrigation
• All bodies shipped with a flush
plug in place for ease of
flushing and riser pull up
• Ratcheting riser feature for easy
and reliable arc adjustment
• Non-side-inlet models available
on 6" (150mm) and 12"
(300mm) sprinkler bodies for
sandy soils or applications
prone to high-pressure surges
and spikes
• Check valve prevents low-head
damage and keeps laterals
charged with water (optional)
• Durable engineering
plastic construction
• Stainless steel retraction spring
• Recycled water
indicators available
• Two-year warranty
• Dimensions:
• Body diameter:
– 1
3
⁄8" (35mm) on 2P, 3P,
4P, 6P and 6P-SI models
– 1
5
⁄8" (41mm) on 12P
models
– 1
3
⁄4" (44mm) on 12P-SI
models
• Cap diameter: 2" (50mm)
• Side inlet: 4
3
⁄4" (120mm)
from top of sprinkler to center
of side inlet
• Check valve maintains up to 10'
(3m) elevation change (optional
on side-inlet models except 2"
[50mm])
570Z Series
RESIDENTIAL • COMMERCIAL

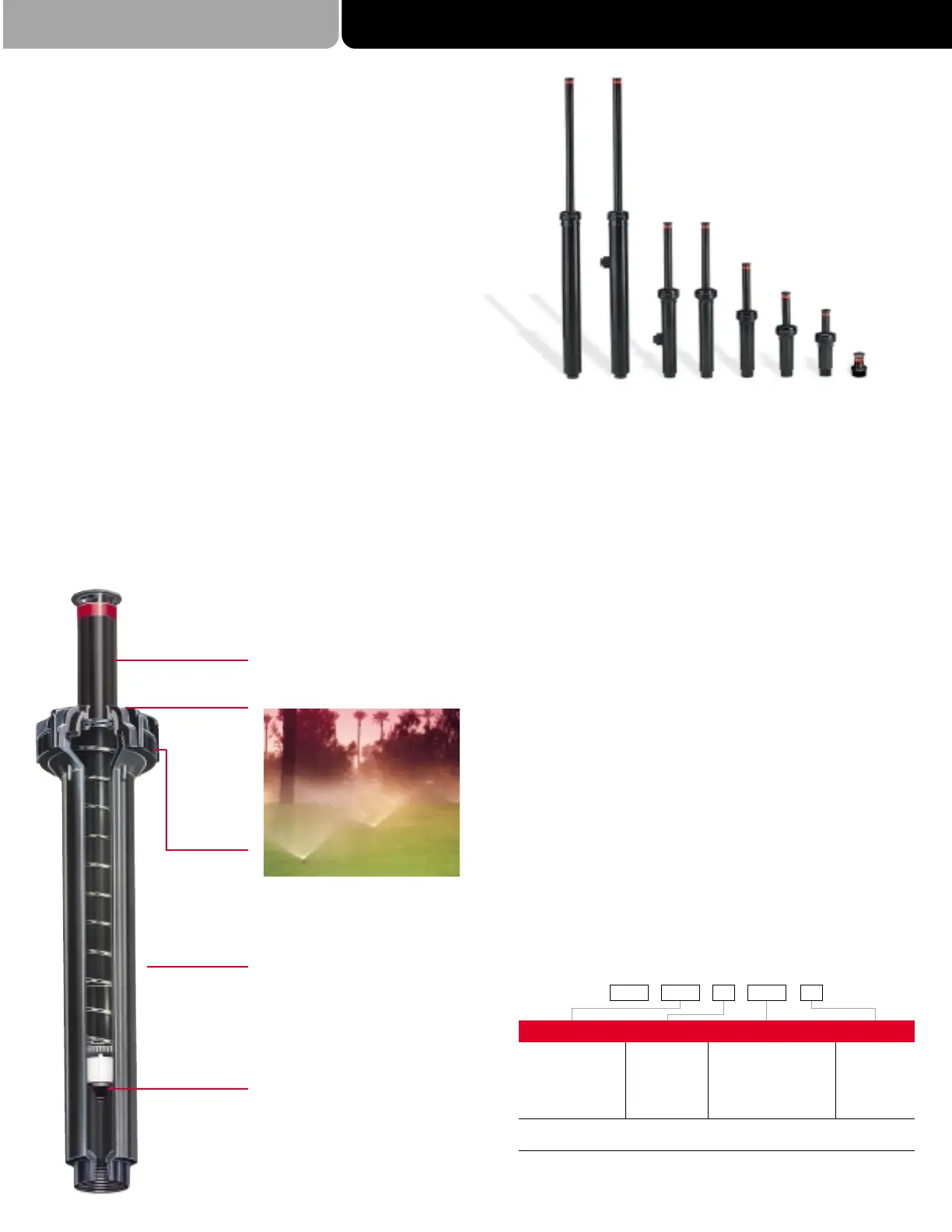

Ratcheting riser
lets you fine-tune
after installation
Zero flush seal,
on retraction
Small (2" cap
diameter) solid
black cap is less
visible, reducing
damage from
exposure
Side inlet available on
non-Check-O-Matic
6" and 12" models
(not illustrated)
Optional:
Check-O-Matic seal
installed into riser
prevents low-head
drainage
Pop-up Height Optional Optional Optional
12—12" (300mm) SI—Side Inlet* COM—Check-O-Matic** E—Effluent
6—6" (150mm)
4—4" (100mm)
3—3" (76mm)
2—2" (50mm)
Example: A 570Z Series Sprinkler with a pop-up height of 6" (150mm)
and a check valve, you would specify: 570Z-6P-COM
*Available for 6" (150mm) and 12" (300mm) models.
**Available with non-side inlet models except 2" (50mm).
Maxijet is a registered trademark of The Toro Company.
Specifying Information
570Z XXP COMSI E
2
2
