17
Positioning the Seat
The seat can move forward and backward. Position the seat
where you have the best control of the machine and are
most comfortable.
1. Raise the seat and loosen the adjustment knobs
(Fig. 12).
2. Move the seat to the desired position and tighten the
knobs.
m–6433
1

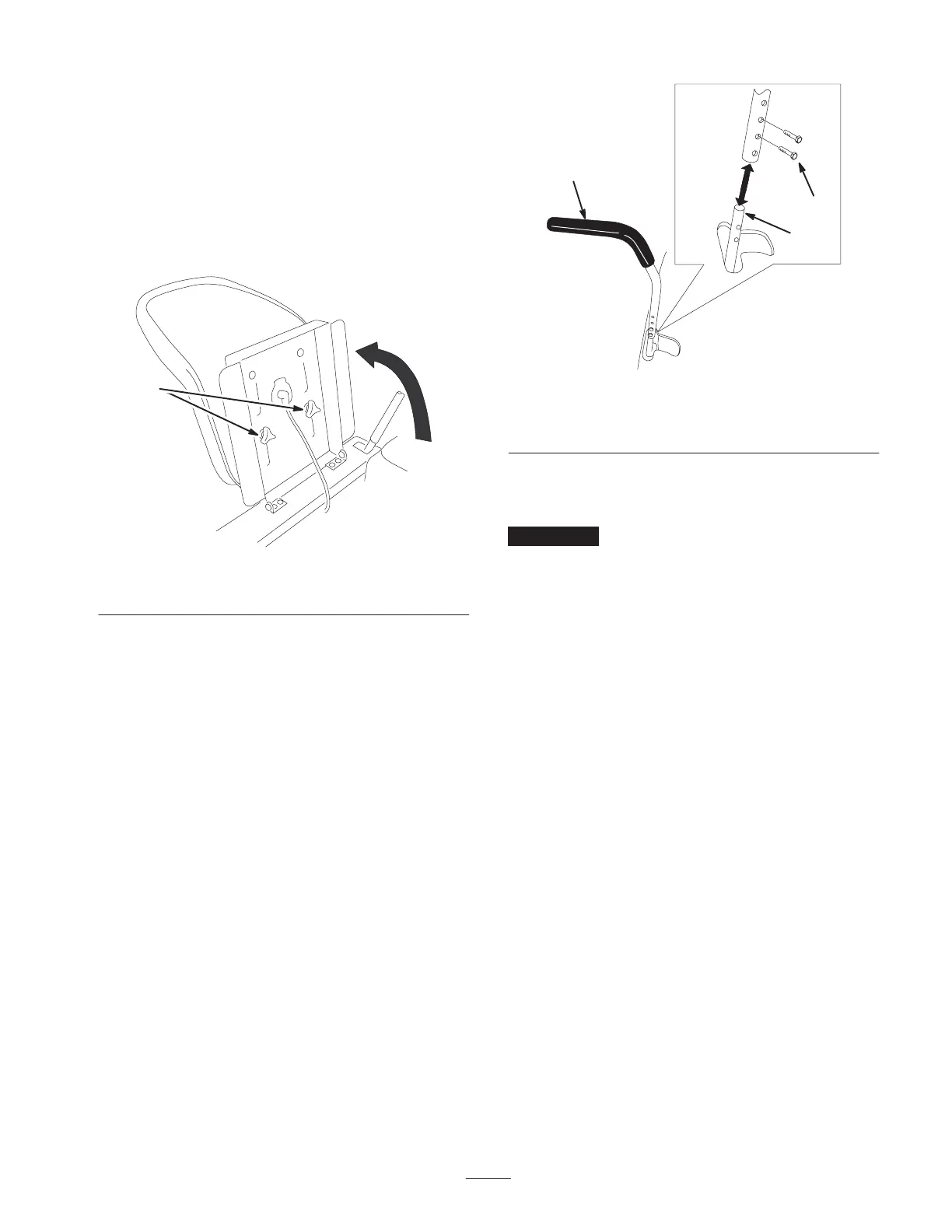

Figure 12
1. Adjustment knobs
Adjusting the Motion Control
Levers
The motion control levers can be adjusted higher or lower
for maximum operator comfort.
1. Remove the 2 bolts holding the control lever to the
control arm shaft (Fig. 13).
2. Move the control lever to the next set of holes. Secure
the lever with the 2 bolts (Fig. 13).
3. Repeat the adjustment for the opposite control lever.
1
2
3
m–6417
Figure 13
1. Control lever
2. Bolt
3. Control arm shaft
Pushing the Machine by Hand
Important Always push the machine by hand. Never
tow the machine because damage may occur.
To Push the Machine
1. Park the machine on a level surface and disengage the
blade control (PTO).
2. Move the motion control levers to the brake position,
stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
3. Push each bypass lever forward and then push them out
(Fig. 14).
4. Move the motion control levers to the center, unlocked
position to disengage the brake (Fig. 9).
5. Push the machine.
