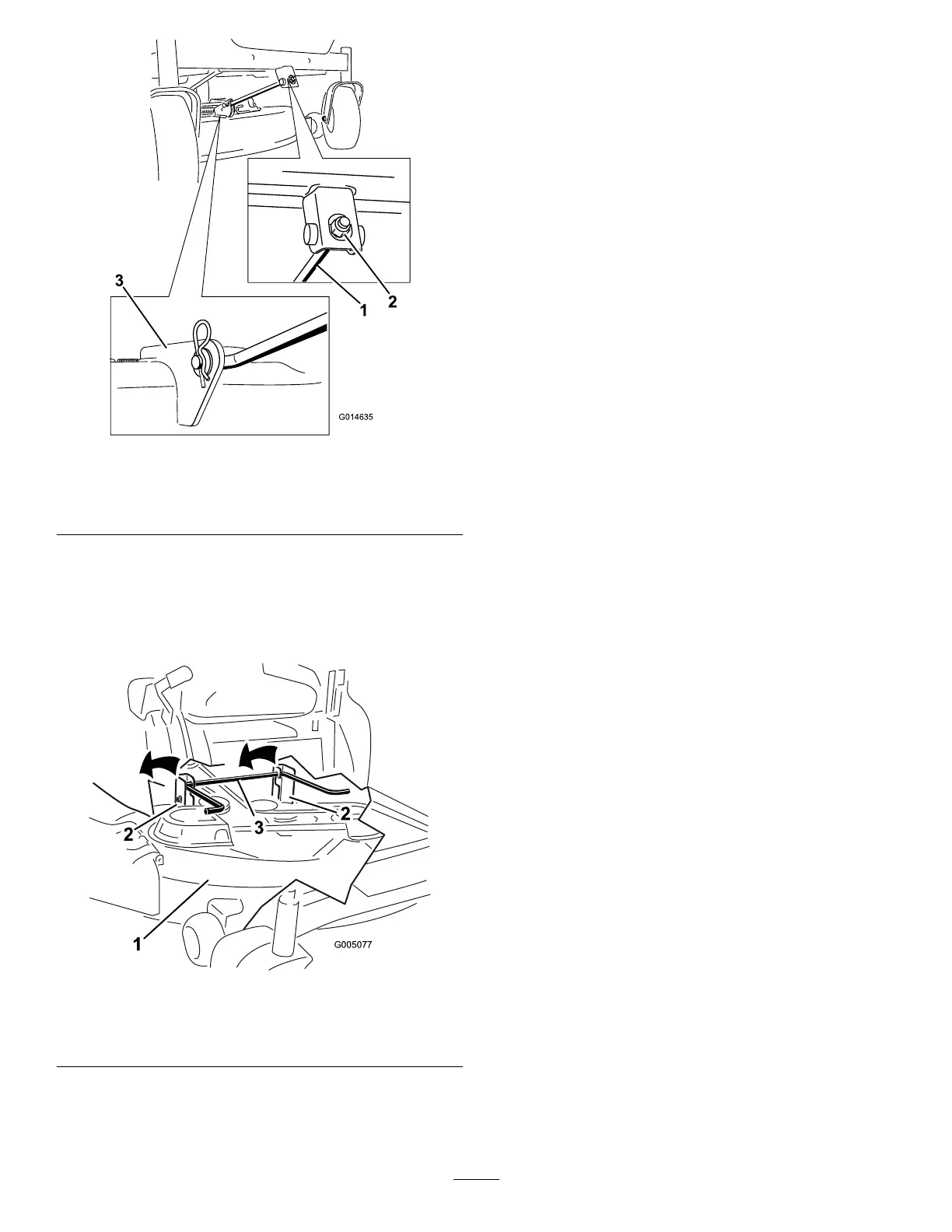

g014635
Figure66
1.Frontsupportrod3.Deckbracket
2.Lockingnut
5.Carefullylowerthefrontofthemowerdeckto
theground.
6.Liftthemowerdeckandhangerbracketsclear
oftherearliftrodandlowerthemowercarefully
totheground(Figure67).
g005077
Figure67
1.Mowerdeck
3.Rearliftrod
2.Hangerbracket
7.Slidethemowerdeckrearwardtoremovethe
mowerbeltfromtheenginepulley.
8.Slidethemowerdeckoutfromunderneaththe
machine.
Note:Retainallpartsforfutureinstallation.
InstallingtheMowerDeck
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowest
position.
5.Lifttherearofthemowerdeckandguidethe
hangerbracketsovertherearliftrod(Figure67).
6.Attachthefrontsupportrodtothemowerdeck
withtheclevispinandhairpincotter(Figure66).
7.Installthemowerbeltontotheenginepulley;
refertoReplacingtheMower-DeckBelt(page
39).
47
