vi
680
1
6
4
7
4
5
8
2
3
English

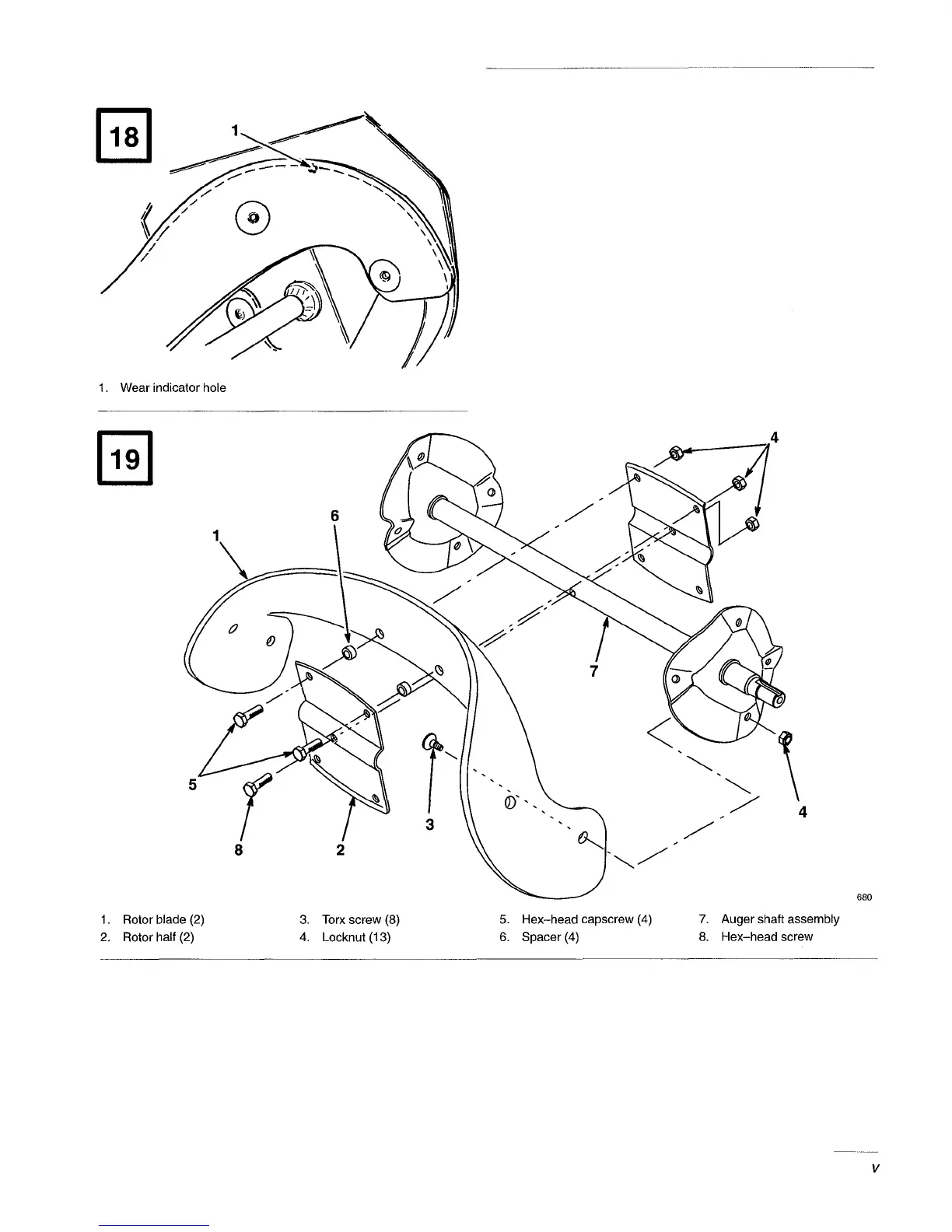

1. Rotor blade (2)
2. Rotor half (2)
3. Torx screw (8)
4. Locknut (13)
5. Hex-head capscrew (4)
6. Spacer (4)
7. Auger shaft assembly
8. Hex-head screw
Français
1. Lame du rotor (2)
2. Plaques d’acier
3. Vis Torx (8)
4. Ecrou de blocage (13)
5. Vis à tête hexagonale (4)
6. Entretoise (4)
7. Arbre de la tarière
8. Vis à tête hexagonale
20
