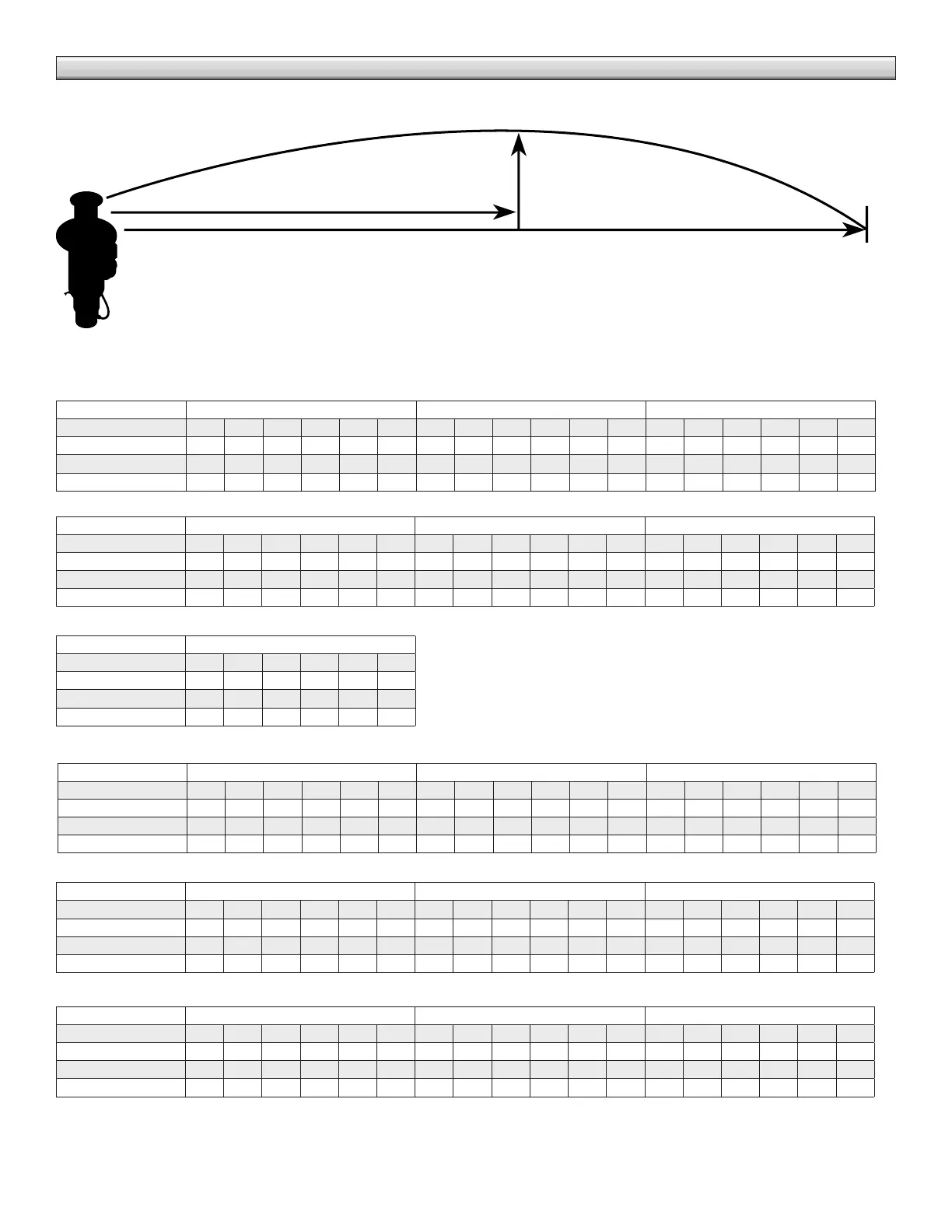

Nozzle Performance Chart
Nozzle/PSI/GPM #34 Nozzle @ 65 PSI, 30.0 GPM #35 Nozzle @ 65 PSI, 32.4 GPM #36 Nozzle @ 80 PSI, 34.0 GPM
Trajectory 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30°
"A" Radius 58' 60' 63' 67' 74' 70' 59' 61' 64' 70' 76' 74' 64' 68' 76' 80' 84' 82'
"B" Spray Height 4' 4' 6' 11' 14' 17' 4' 5' 7' 11' 15' 17' 5' 7' 9' 14' 17' 22'
"C" Distance from Head 24' 26' 35' 39' 39' 39' 30' 32' 36' 43' 43' 43' 25' 38' 40' 45' 49' 45'
Nozzle/PSI/GPM #37 Nozzle @ 80 PSI, 39.8 GPM
Trajectory 7° 10° 15° 20° 25° 30°
"A" Radius 65' 69' 78' 82' 86' 84'
"B" Spray Height 5' 7' 9' 14' 18' 22'
"C" Distance from Head 30' 39' 41' 46' 50' 46'
Nozzle/PSI/GPM #54 Nozzle @ 65 PSI, 31.2 GPM #55 Nozzle @ 65 PSI, 33.8 GPM #56 Nozzle @ 80 PSI, 35.7 GPM
Trajectory 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30°
"A" Radius 58' 60' 63' 67' 74' 70' 59' 62' 66' 70' 76' 77' 72' 73' 75' 82' 85' 82'
"B" Spray Height 5' 6' 8' 10' 15' 17' 6' 6' 9' 11' 15' 17' 5' 7' 9' 14' 17' 22'
"C" Distance from Head 31' 34' 40' 41' 41' 42' 34' 36' 43' 45' 45' 45' 25' 38' 40' 45' 49' 45'
Nozzle/PSI/GPM #57 Nozzle @ 80 PSI, 41.9 GPM #58 Nozzle @ 80 PSI, 46.2 GPM #59 Nozzle @ 80 PSI, 53.3 GPM
Trajectory 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30°
"A" Radius 72' 74' 77' 83' 89' 85' 75' 77' 83' 87' 92' 88' 77' 78' 84' 89' 96' 92'
"B" Spray Height 5' 7' 9' 14' 18' 22' 6' 7' 10' 15' 18' 22' 7' 8' 11' 16' 21' 25'
"C" Distance from Head 30' 39' 41' 46' 50' 46' 38' 40' 43' 47' 52' 48' 42' 44' 45' 47' 53' 49'
Information is for reference only. Actual results may vary.
FLX35-6 Trajectory Performance
Nozzle/PSI/GPM #31 Nozzle @ 65 PSI, 15.5 GPM #32 Nozzle @ 65 PSI, 20.5 GPM #33 Nozzle @ 65 PSI, 22.9 GPM
Trajectory 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30°
"A" Radius 46' 46' 50' 53' 54' 50' 46' 49' 51' 55' 63' 54' 54' 56' 59' 62' 66' 61'
"B" Spray Height 4' 4' 5' 8' 11' 13' 3' 4' 6' 9' 12' 15' 4' 5' 7' 9' 13' 15'
"C" Distance from Head 25' 25' 26' 33' 33' 33' 20' 24' 28' 34' 34' 34' 23' 28' 32' 34' 35' 35'
FLX55-6 Trajectory Performance
Nozzle/PSI/GPM #51 Nozzle @65 PSI, 15.7 GPM #52 Nozzle @65 PSI, 20.8 GPM #53 Nozzle @65 PSI, 23.4 GPM
Trajectory 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30° 7° 10° 15° 20° 25° 30°
"A" Radius 46' 46' 51' 53' 54' 50' 49' 50' 51' 55' 64' 65' 54' 56' 59' 62' 68' 61'
"B" Spray Height 4' 4' 6' 10' 13' 15' 4' 4' 6' 9' 11' 13' 5' 6' 7' 9' 13' 15'
"C" Distance from Head 26' 27' 32' 38' 40' 41' 22' 26' 31' 35' 34' 30' 30' 33' 32' 35' 37' 37'
A
C
B
