Toro GREENSMASTER 3100 Quick Start Guide

InstallingtheKitonthe
Greensmaster3100(Model
04356)and3150(Models04357
and04358)
1.Locate,mark,anddrill3holes(13.5mm[0.53inch]
diameter)oneachsideoftherearcastorforkasshown
inFigure1.

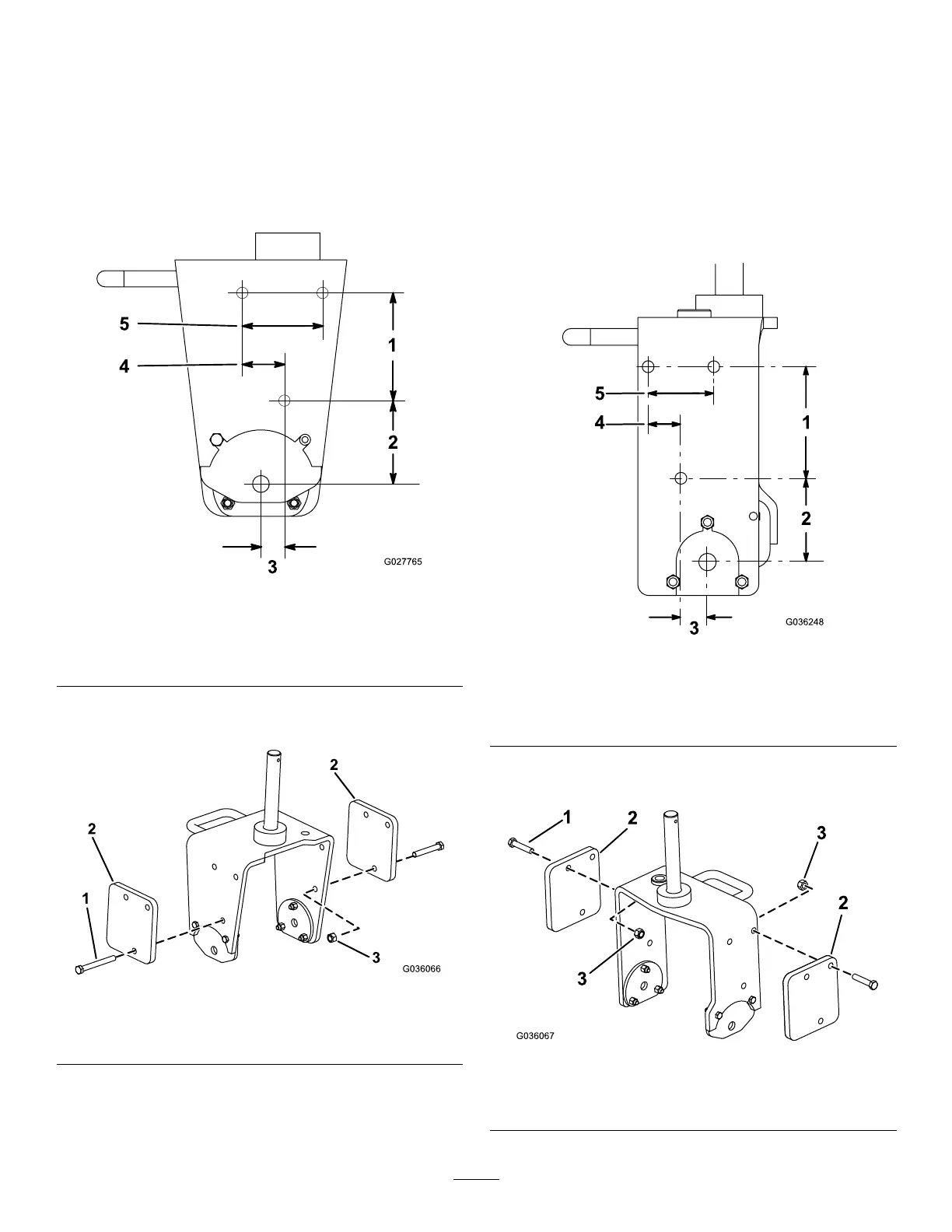

Figure1
1.127mm(5inches)4.37.4mm(1.47inches)
2.95.3mm(3.75inches)5.74.8mm(2.95inches)
3.37.7mm(1.49inches)
2.Attachaweighttoeachsideofthecastorforkusing3
boltsand3locknutsforeachside(Figure2).
Figure2
1.Bolt(6)3.Locknut(6)
2.Weight
InstallingtheKitonthe
Greensmaster3200(Model
04380),3200-D(Model04381),
and3250-D(Models04383and
04384)
1.Locate,mark,anddrill3holes(0.53inch[17/32in.]
diameter)oneachsideoftherearcastorforkasshown
inFigure3.
Figure3
1.127mm(5inches)4.37.4mm(1.47inches)
2.95.3mm(3.75inches)5.74.8mm(2.95inches)
3.30.1mm(1.19inches)
2.Attachaweighttoeachsideofthecastorforkusing3
boltsand3locknutsforeachside(Figure4).
Figure4
1.Bolt(6)3.Nut(6)
2.Weight
