GEAR DRIVE SYSTEM
5-30 GT Series Tractors Service Manual
5

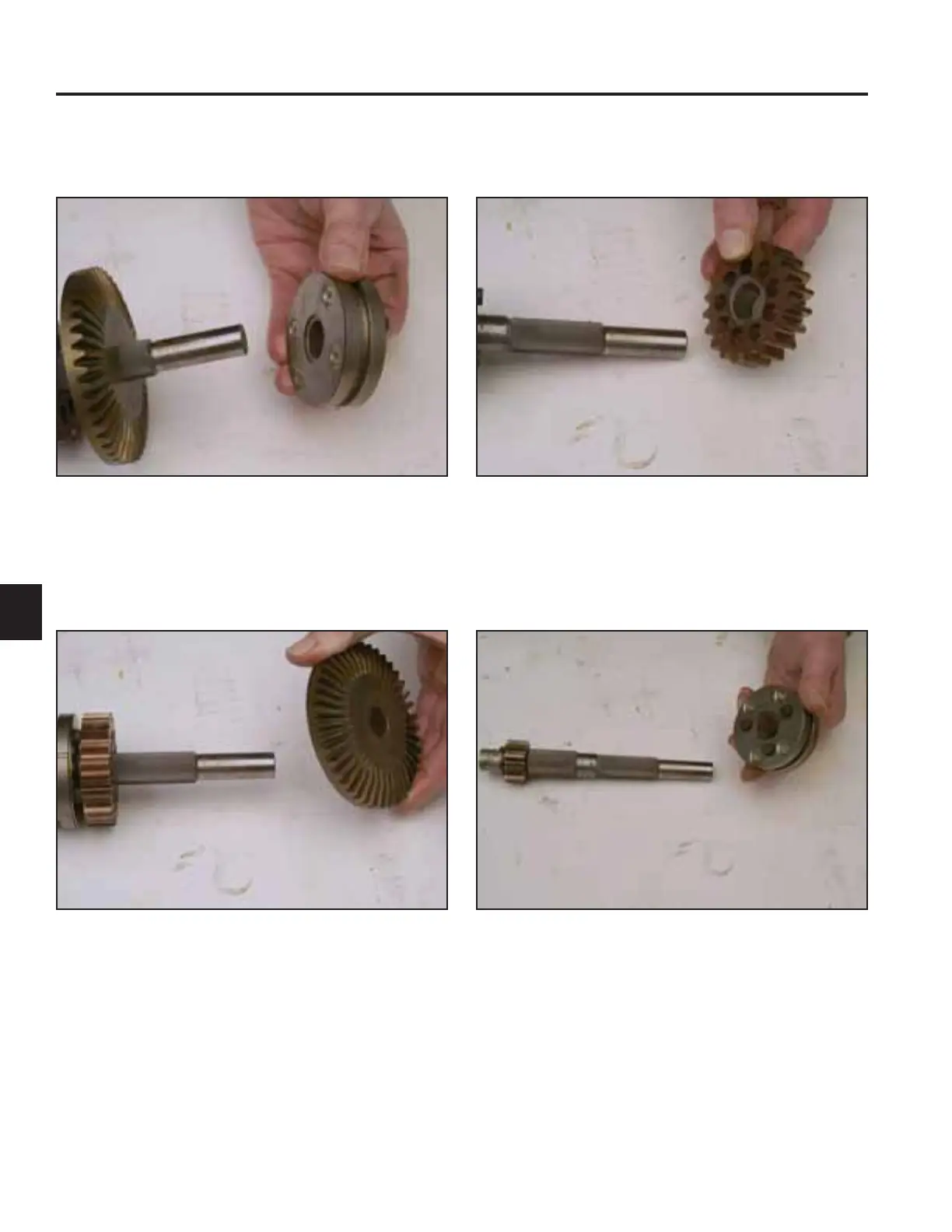

32. Remove the collar assembly from the drive shaft
(Fig. 537).
34. Remove the 20 tooth spur gear from the drive shaft
(Fig. 539).
Fig 537 PICT-8323a
Fig 539 PICT-8326a
35. Remove the hi-lo collar assembly from the drive
shaft (Fig. 540).
33. Remove the 41 tooth spur gear from the drive shaft
(Fig. 538).
Fig 540 PICT-8327a
Fig 538 PICT-8324a
