MOWER DECK
7-49GT Series Tractors Service Manual
7
Mower Deck Pulley Replacement
(50” & 54” Mower Decks)
Mower Deck Pulley Removal
The following procedure was performed on the left hand
spindle pulley. The process is the same for all spindle
pulley replacement. Depending on which pulley is being
replaced, the spindle covers and mower deck belt may
have to be removed:
Remove the mower deck from the tractor. Refer to:
´0RZHU'HFN5HPRYDORQSDJH
´0RZHU'HFN5HPRYDORQSDJH
Remove the mower deck belt from the mower deck.
Refer to:
´0RZHU'HFN%HOW5HPRYDORQSDJH
´0RZHU'HFN%HOW5HPRYDORQSDJH

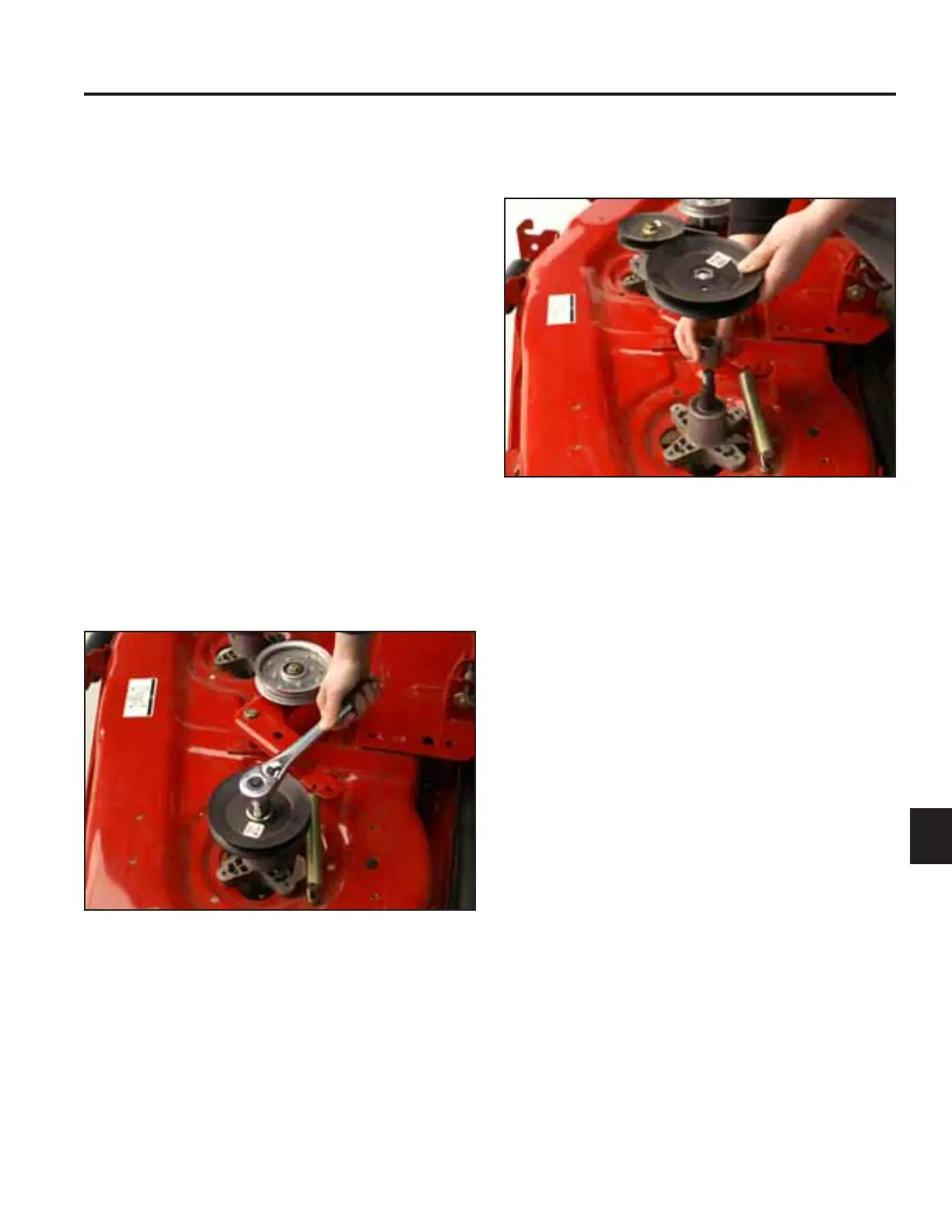

2. Remove the pulley and the spacer from the spindle
shaft (54” mower spindle shown) (Fig. 910).
Fig 910 PICT-7880
1. Block the blade and remove the nut from the spindle
shaft (Fig. 909).
Fig 909 PICT-7879
