GEAR DRIVE SYSTEM
5-48 GT Series Tractors Service Manual
5

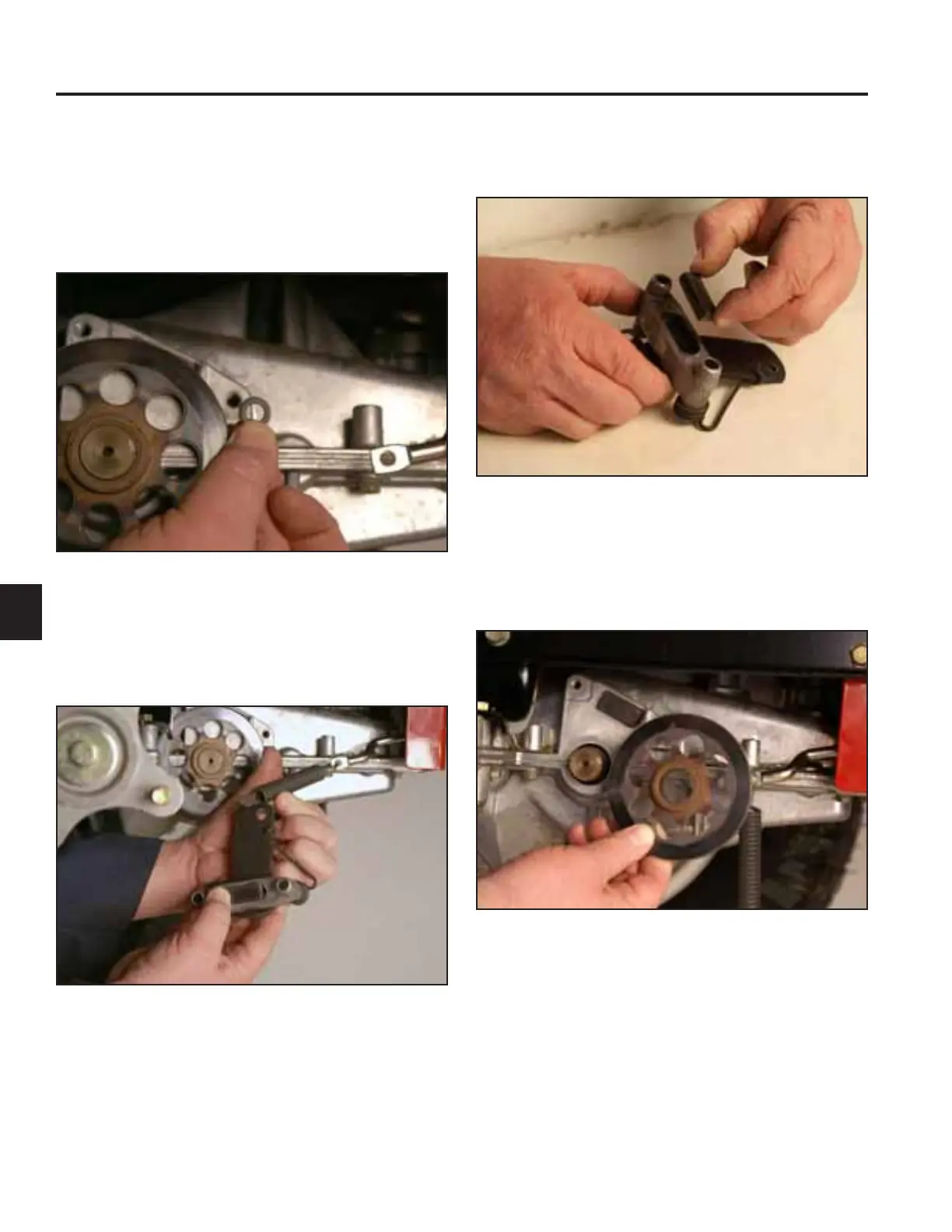

5. Remove the brake assembly from the transmission
(Fig. 609).
Note: Some transmissions have 2 washers between
the brake assembly and the transmission (1
for each bolt).
Fig 609 PICT-7719a
6. Remove the brake assembly from the spring (Fig.
610).
Fig 610 PICT-7720a
7. Remove the puck from the brake assembly (Fig.
611).
Fig 611 PICT-7721
8. Remove the brake disc from the transmission (Fig.
612).
Fig 612 PICT-7722
