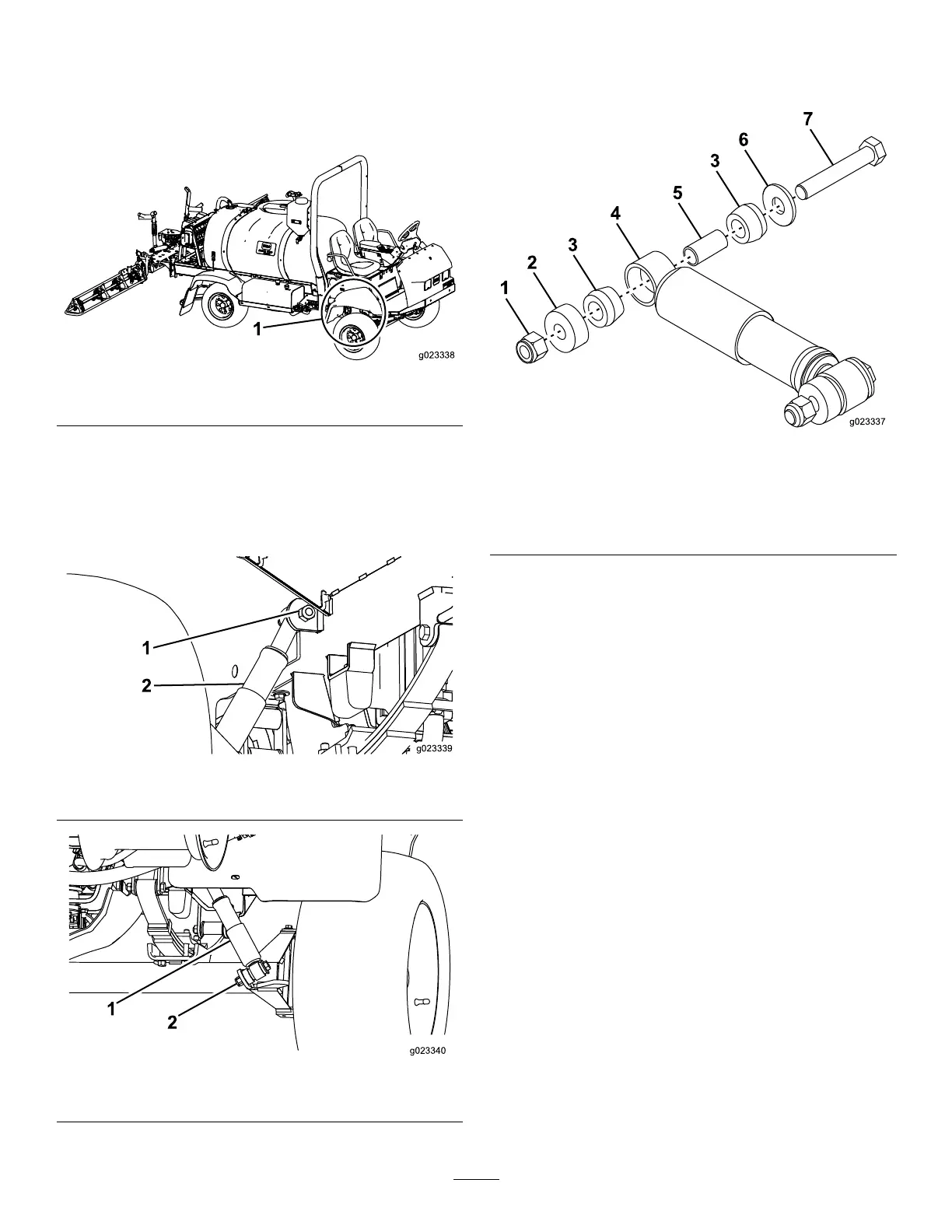

Toro Multi Pro 5800 Quick Start Guide

InstallingtheShockAbsorber
1.Turnoffthemachineandallowittocool.
2.Disconnectthenegativebatterycablefromthebattery.
3.Locatethewheelwellofthefrontendofthemachine.
1
g023338
Figure1
1.Wheelwell
4.Raisethefrontendofthemachineup,andsupportthe
frontendwithasuitablejackstand.
5.Removetheoldshockabsorberbyunscrewingthe
nutsandboltsfromtheshockabsorber(Figure2and
Figure3).
1
2
g023339
Figure2
1.Nut
2.Shock
2
1
g023340
Figure3
1.Shock
2.Nut
6.Installthenewshockabsorber(Figure4)byscrewing
itinonthesamepointsastheoldonewasremoved
(Figure2andFigure3).
7
6
3
5
3
2
1
4
g023337
Figure4
1.Nut
5.Sleeve
2.Spacer
6.Washer
3.Bushing7.Bolt
4.Shock
7.Connectthenegativebatterycable.
2
