g007839

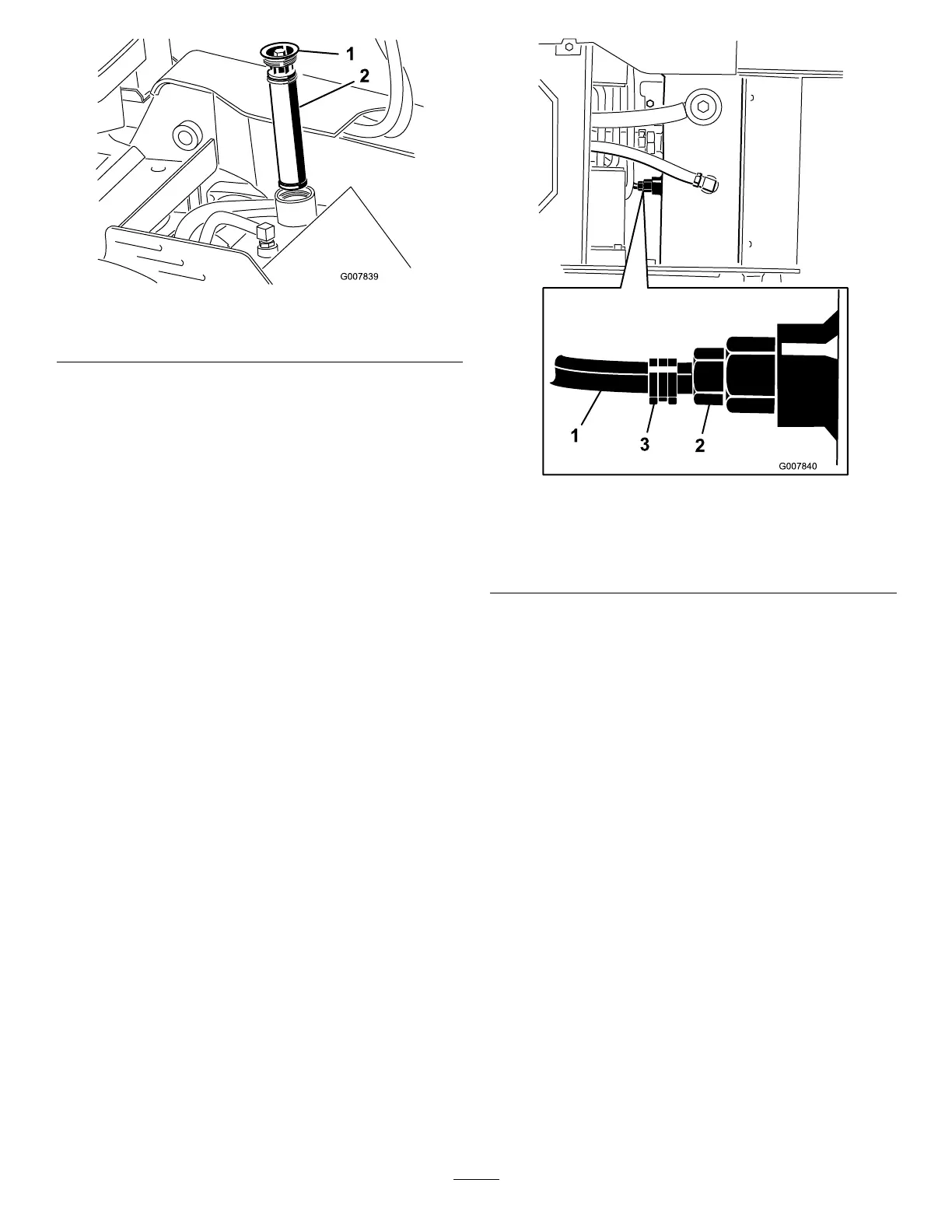

Figure54
1.Filler-neckcap
2.Hydraulic-uidlter
6.Ifthelevelislow,adduiduntilitisvisibleinthe
glassbubble.
7.Installthecapandlteronthellerneckand
torqueboltontopto13to15.5N∙m(110to140
in-lb).
8.Installthecoverplate;refertoRemovingthe
CoverPlate(page21).
ChangingtheHydraulic
Fluid
ServiceInterval:Every400hours/Yearly(whichever
comesrst)
1.Parkthemachineonalevelsurface,engage
theparkingbrake(ifapplicable),andlowerthe
hydrauliclift.
2.Shutofftheengineandremovethekey.
3.Allowthemachinetocoolcompletely.
4.Removethetopcover.
5.Removethehydraulic-tankllercapandlter
(Figure54).
6.Placeadrainpancapableofholding37.8L(10
USgallons)underthehydraulictank.
7.Pinchthehoseclampandslidetheclampand
hoseoffthettingonthehydraulictank,allowing
thehydraulicuidtodrainfromthehoseand
tankintothepan.
g007840
Figure55
1.Hose
2.Hydraulic-tanktting
3.Hoseclamp
8.Whennished,installthehoseontothetting
andsecureitwiththehoseclamp.
Note:Disposeoftheusedoilatacertied
recyclingcenter.
9.Fillthehydraulictankwithhydraulicuid;refer
toHydraulicFluidSpecications(page37).
10.Installthehydrauliclterandllercap(Figure
54)andtorquetheboltontopto13to15.5N∙m
(110to140in-lb).
11.Starttheengineandletitrunforafewminutes.
12.Shutofftheengine.
13.Checkthehydraulic-uidlevelandtopitoffif
necessary;refertoCheckingtheHydraulic-Fluid
Level(page37).
14.Cleanupanyspilleduid.
15.Installthetopcover.
