ProductOverview

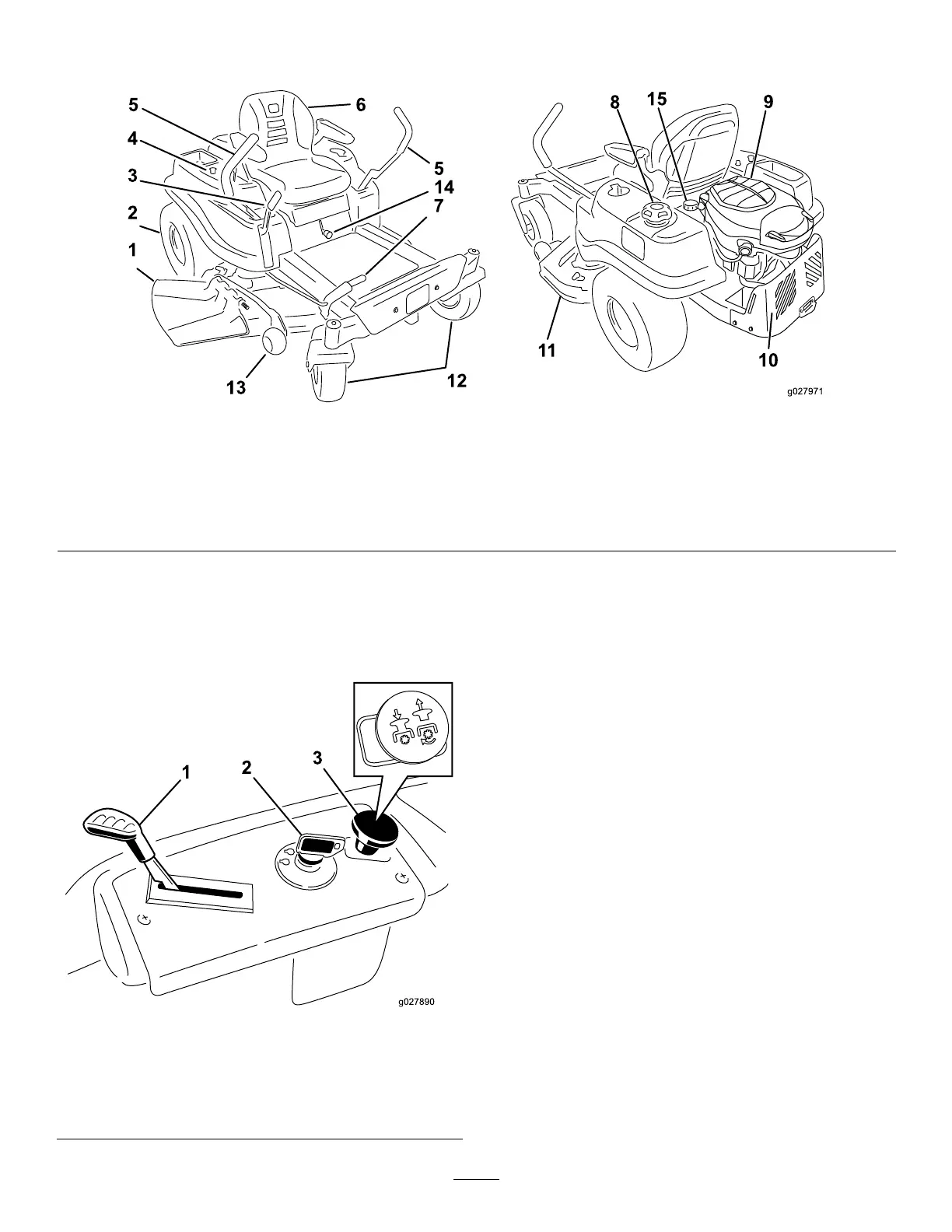

Figure4
1.Deector
5.Motioncontrollevers9.Engine13.Anti-scalproller
2.Reardrivewheel
6.Operatorseat
10.Engineguard
14.SmartSpeed™lever
3.Heightofcutlever7.Footassistlever(certain
modelsonly)
11.Mowerdeck15.Hydraulicreservoir
4.Controlpanel8.Gastankcap
12.Frontcasterwheel
Controls
BecomefamiliarwithallofthecontrolsinFigure4and
Figure5beforeyoustarttheengineandoperatethemachine.
Figure5
ControlPanel
1.Throttle3.Bladecontrolswitch
(powertake-off)
2.Ignitionswitch
IgnitionSwitch
Theignitionswitchhas3positions,Off,Run,andStart.The
keywillturntoStartandmovebacktoRunuponrelease.
TurningthekeytotheOffpositionwillstoptheengine;
however,alwaysremovethekeywhenleavingthemachine
topreventsomeonefromaccidentallystartingtheengine
(Figure5).
ThrottleControl
Thethrottlecontrolstheenginespeedandithasacontinuous
variablesettingfromSlowtoFast(Figure5).
Blade-ControlSwitch(PowerTake-off)
Theblade-controlswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades(Figure5).
14
