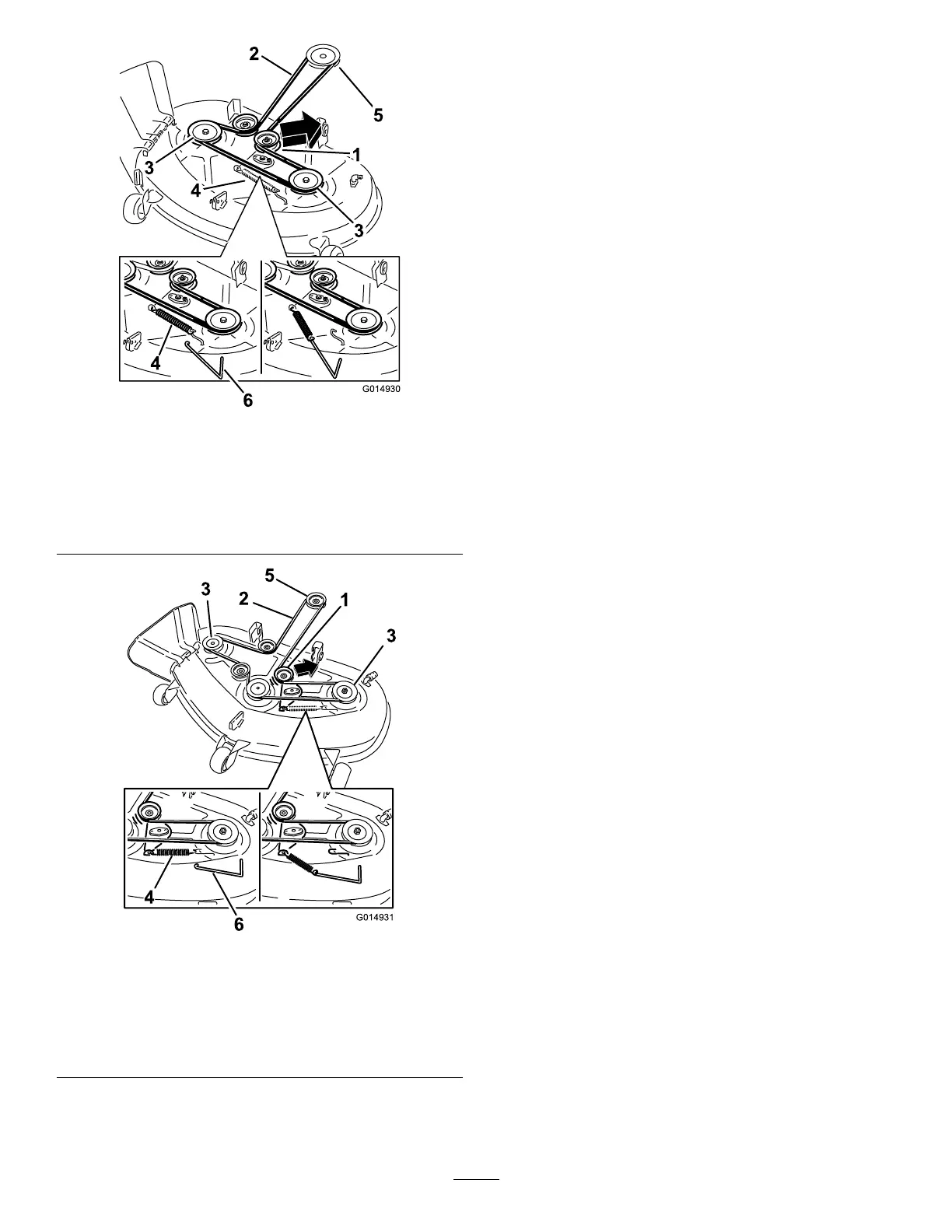

g014930
Figure53
MowerDeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt
5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g014931
Figure54
MowerDeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure54).
7.Usingaspring-removaltool,installtheidler
springoverthedeckhook,andplacetensionon
theidlerpulleyandmowerbelt(Figure53and
Figure54).
8.Installthepulleycovers.
46
