AdjustingtheHeightofCut
Note:Thetransportpositionisthehighestheight-of-cut
positionat115mm(4-1/2inches)asshowninFigure25.

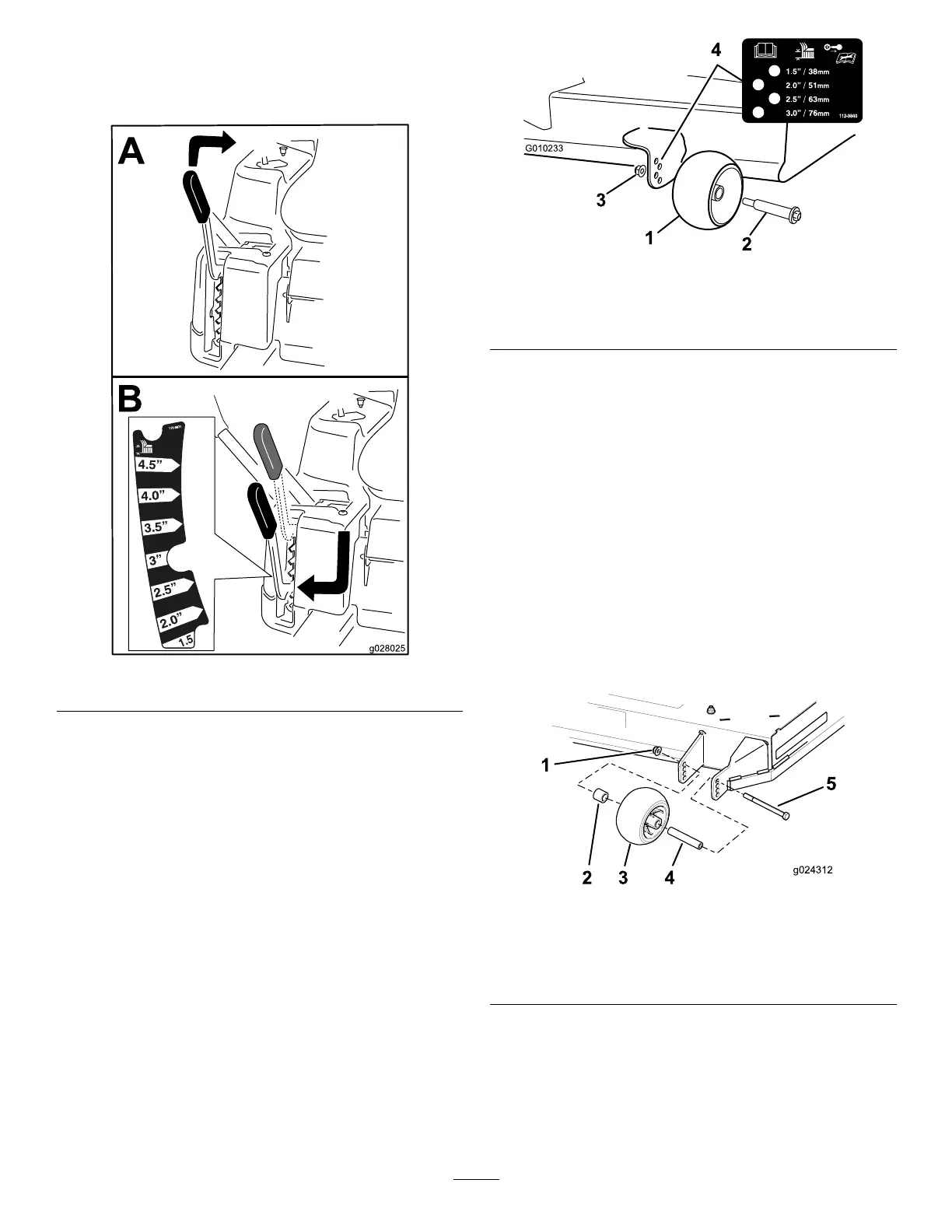

g028025
Figure25
AdjustingtheAnti-Scalp
Rollers
Machineswitha42-inch,50-inch,or
54-inchMowerDeckOnly
Wheneveryouchangetheheightofcut,adjusttheheight
oftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollersdonot
touchthegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO),move
themotion-controlleverstothePARKposition,and
engagetheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Adjusttheanti-scalprollersasshowninFigure26to
matchtheclosestheight-of-cutposition.
G010233
1
2
3
4
g010233
Figure26
1.Anti-scalproller3.Flangenut
2.Bolt4.Holespacing
Machineswitha60-inchDeckOnly
Wheneveryouchangetheheightofcut,itisrecommendedto
adjusttheheightoftheanti-scalprollers.
1.Disengagetheblade-controlswitch(PTO),move
themotion-controlleverstothePARKposition,and
engagetheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removetheangenut,anti-scalproller,andboltfrom
thebracket(Figure27).
Note:Keeptheboltandanti-scalprollertogether
whenremoving.
g024312
1
2 3 4
5
g024312
Figure27
1.Flangenut4.Bushing
2.Spacer
5.Bolt
3.Anti-scalproller
4.Aligntheboltandanti-scalprollerintheholeofthe
bracketthatmatchedtheclosestheight-of-cutposition
(Figure27).
5.Inserttheboltintothebracketholeandsecurethebolt
andanti-scalprollerwiththeangenut(Figure27).
25
