RemovingtheGrass
DeectorandBeltCover
NoPartsRequired
Procedure
WARNING
Anuncovereddischargeopeningcouldallow
themachinetothrowobjectstowardyouor
bystandersandresultinseriousinjury.Also,
contactwiththebladecouldoccur.
Neveroperatethelawnmowerunlessyou
installamulchplate,dischargedeector,or
grass-collectionsystem.
IfyouremovethePoweredBagger,installthegrass
deector;refertoReplacingtheGrassDeector(page
29).
Inspectthegrassdeectorfordamagebeforeeach
use.Replaceanydamagedpartsbeforeuse.
1.Disengagethespringfromthenotchinthe
deectorbracketandslidetherodoutofthe
weldeddeckbrackets,spring,anddischarge
deector(Figure6).

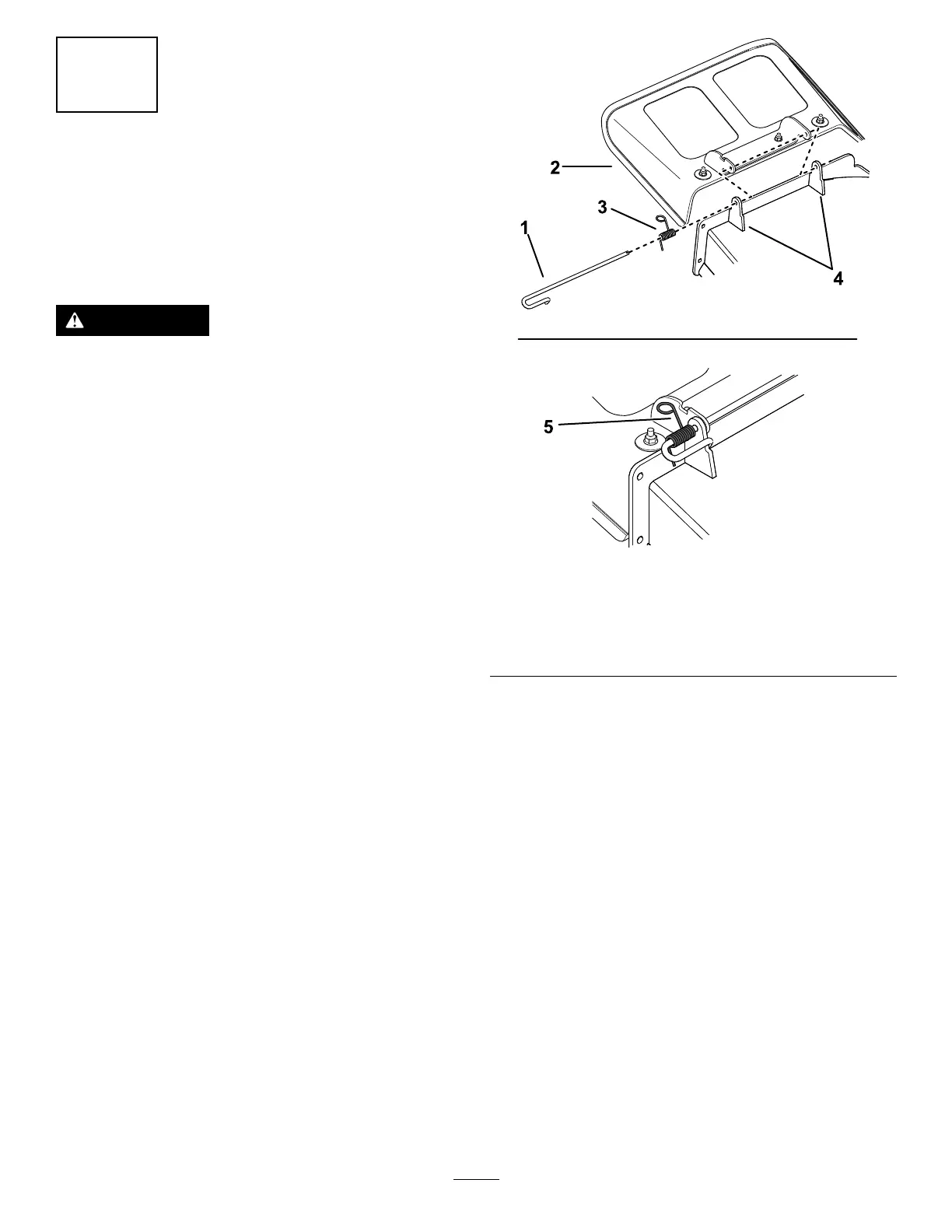

g297555
Figure6
1.Rod4.Deckbrackets
2.Spring5.Springinstalledoverthe
rod
3.Deector
2.Removethedeector(Figure6).
3.Removethe4screwssecuringtherightbelt
cover,andremovethebeltcover(Figure7).
Note:Retainthe4screwsforinstallationin
Procedure5InstallingthePulleyAssembly,Belt
Cover,andShoulderBolt(page12).
