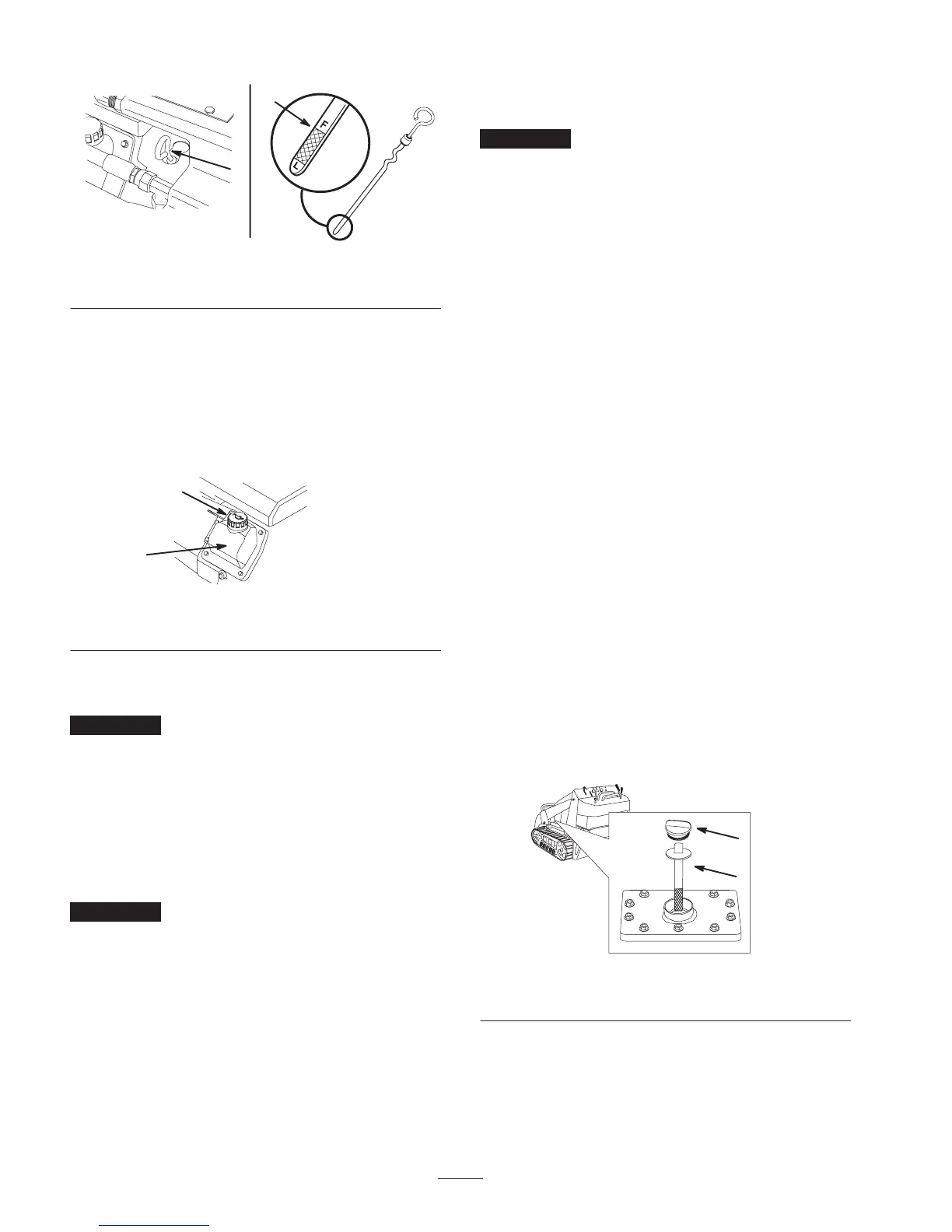

Figure 2
1. Oil dipstick 2. Metal end
5. Pull out the dipstick and wipe the metal end clean
(Fig. 2).
6. Slide the dipstick fully into the dipstick tube (Fig. 2).
7. Pull the dipstick out and look at the metal end.
8. If the oil level is low, clean around the oil filler cap
and remove the cap (Fig. 3).
1
m–4745
2
Figure 3
1. Filler cap 2. Valve cover
9. Slowly pour only enough oil into the valve cover to
raise the level to the F (full) mark.
Important Do not overfill the crankcase with oil
because the engine may be damaged.
10. Replace the filler cap and dipstick.
11. Close the hood.
Removing Debris from the
Traction Unit
Important Operating the engine with blocked screens,
dirty or plugged cooling fins, and/or cooling shrouds
removed, will result in engine damage from overheating.
1. Park the traction unit on a level surface, lower the
loader arms, and stop the engine.
2. Remove the key and allow the engine to cool.
3. Open the hood; refer to Opening the Hood, page 24.
4. Clean any debris from the front and side screens.
5. Wipe away debris from the air cleaner.
6. Clean any debris build-up on the engine and in the oil
cooler fins with a brush or blower.
Important It is preferable to blow dirt out, rather than
washing it out. If water is used, keep it away from
electrical items and hydraulic valves. Do not use a
high-pressure washer. High-pressure washing can damage
the electrical system and hydraulic valves or deplete
grease.
7. Clean debris from the cooler fan grill on the hood.
8. Close the hood.
Checking the Hydraulic Fluid
Check the hydraulic fluid level before the engine is first
started and after every 25 operating hours.
Hydraulic Tank Capacity: 12 US gallons (45.4 l)
Use 10W-30 detergent, diesel engine oil (API service
CH-4 or higher).
1. Remove the attachment, if one is installed; refer to
Removing an Attachment, page 22.
2. Park the traction unit on a level surface, lower the
loader arms, and fully retract the tilt cylinder.
3. Stop the engine, remove the key, and allow the engine
to cool.
4. Open the hood; refer to Opening the Hood, page 24.
5. Clean the area around the filler neck of the hydraulic
tank (Fig. 4).
6. Remove the cap from the filler neck and check the
fluid level on the dipstick (Fig. 4).
The fluid level should be between the marks on the
dipstick.
1
m–5377
2
Figure 4
1. Filler neck cap 2. Dipstick
7. If the level is low, add enough fluid to raise it to the
proper level.
8. Install the cap on the filler neck.
9. Close the hood.
